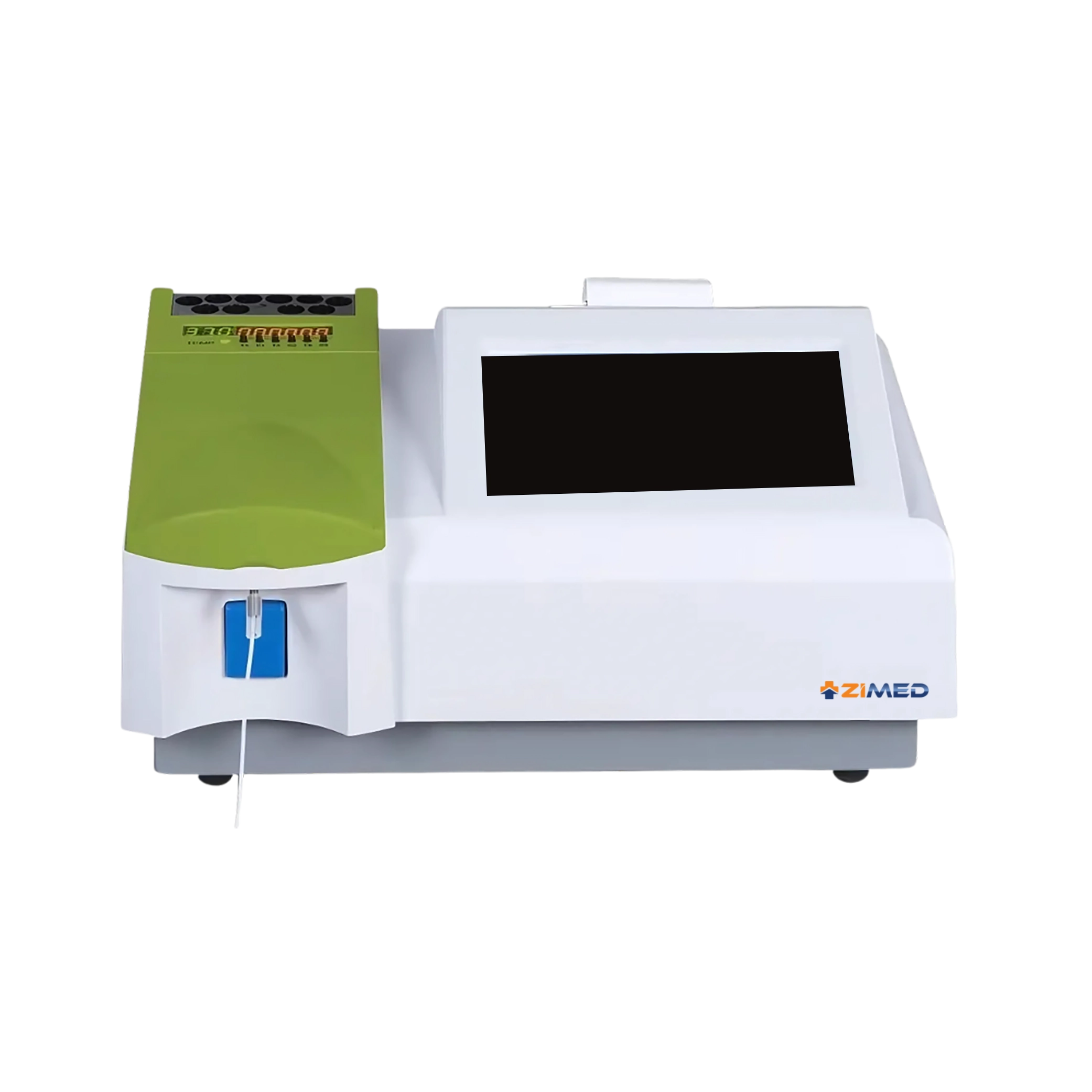

Automatic Biochemistry Analyzer ZABA-A10

Automatic Biochemistry Analyzer ZABA-A10


ZABA-A10 is a fully automatic analyzer with independent systems to perform automated operations like loading, washing, cooling and calibration. Retesting of samples is performed post dilution, in case of insufficient sampling or if results are out of range.

Assay Mode End point, Kinetic, Fixed time, Immuno-turbidimetry,
1 - 2 reagent, Multi-standard, Reagent / Serum blank, etc.
Wavelength 340 nm to 810 nm
Sample Volume 1 to 100 µl ( 0.1 µl / step )
Reagent Volume 1 to 400 µl ( 1 µl / step )
Assay Item 40 Assay
Sample Position 30
Reagent Position 40
Reaction Time 0 to 999 sec
Cuvette UV- transmitted plastic, Quartz glass
Absorbance 0.0001 Abs
Repeatability
( CV % )
≤ 2 %
Alarm Collision, Reagent / Sample insufficiency, Waste container
Calibration Linear, Non-linear, Multi-standard, K-factor
Power Supply 220 V / 50 Hz
Dimensions 650 × 530 × 520 mm
Weight 40 kg
  • Light source : Halogen lamp
  • Probes with liquid level sensor, collision sensor, teflon coating
  • Automatic and independent washing of sample and reagent probe
  • Automated 5 channel cuvette washing system
  • Liquid level detection and collision protection
  • Reagent chamber cooling system
  • Availabilty of multiple report formats

Used in all type of laboratories and clinical labs for the analysis of body fluids, proteins, enzymes etc.
