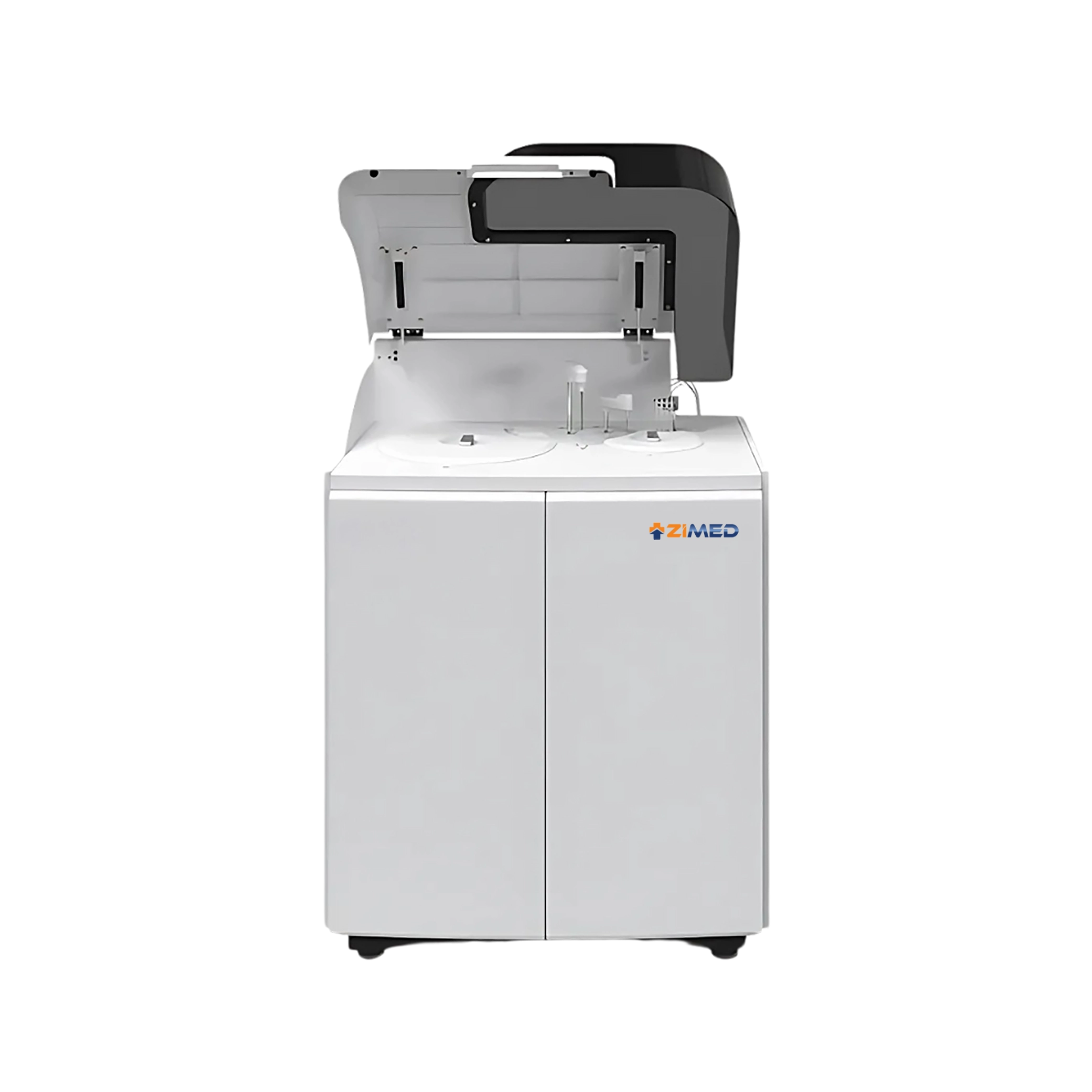

Automatic Biochemistry Analyzer ZABA-A13
ZABA-A13 is a fully automatic analyzer with independent systems to perform automated operations like loading, washing, cooling and calibration. Retesting of samples is performed post dilution, in case of insufficient sampling or if results are out of range.
★
★
★
★
★
Category: Biochemistry Analyzers
$3950
| Output | 200 samples / hour |
| Assay Method | End-point, 2 kinetics, fixed-time, etc. support single/double wavelength, linear and non-linear calibration |
| Wavelength | 340 nm, 405 nm, 450 nm, 510 nm, 546 nm, 578 nm, 630 nm, 700 nm |
| Test Method | Colorimetry, Turbidimetry |
| Sample Tray | 42 positions |
| Reagent Tray | 25 positions |
| Sample Volume | 2 to 50 µl ( 0.1 µl increment ) |
| Reagent Volume | R1 : 25 to 300 µl R2 : 10 to 150 µl ( 0.1 µl increment ) |
| Reagent Refrigeration | 24 hr. non-stop refrigeration at 4 to 15 ° C |
| Reaction Tray | Rotating tray, 120 cuvettes |
| Reaction Volume | 180 to 500 µl |
| Light Source | Halogen lamp ( 12 V / 35 W ) |
| Absorbance Range | 0 to 3.500 Abs |
| Resolution | 0.0001 Abs |
| Temperature | 15 to 30 ° C |
| Humidity | 35 to 80 RH % |
| Power Supply | 220 V ± 22 V ( 50 Hz ± 1 Hz ) |
| Water Consumption | 5 L / hr. |
| Dimensions | 750 × 520 × 600 mm |
| Weight | 45 kg |
- Output : 200 samples / hour
Real-time display for visual monitoring
Liquid-air incubator system ( Bi-directional )
Assay method : End-point, 2 kinetics, fixed-time, etc. support single/double wavelength, linear and non-linear calibration
Reusable cuvettes with optical diameter of 6 mm
Sample and reagent probes with sensors for detecting liquid level, remained sample and collision protection
Multi-mode printing option
- Used in all type of laboratories and clinical labs for the analysis of body fluids, proteins, enzymes etc.
