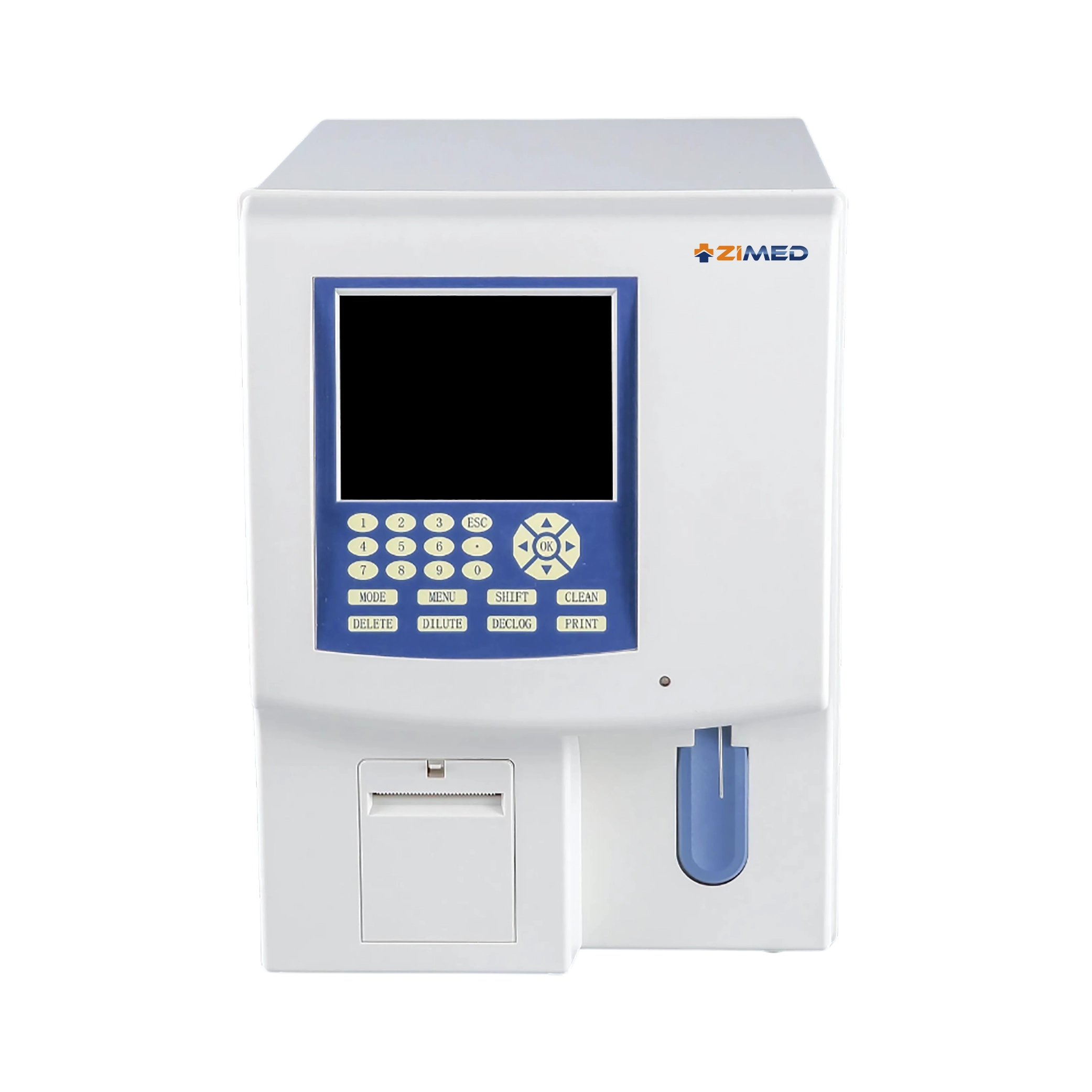

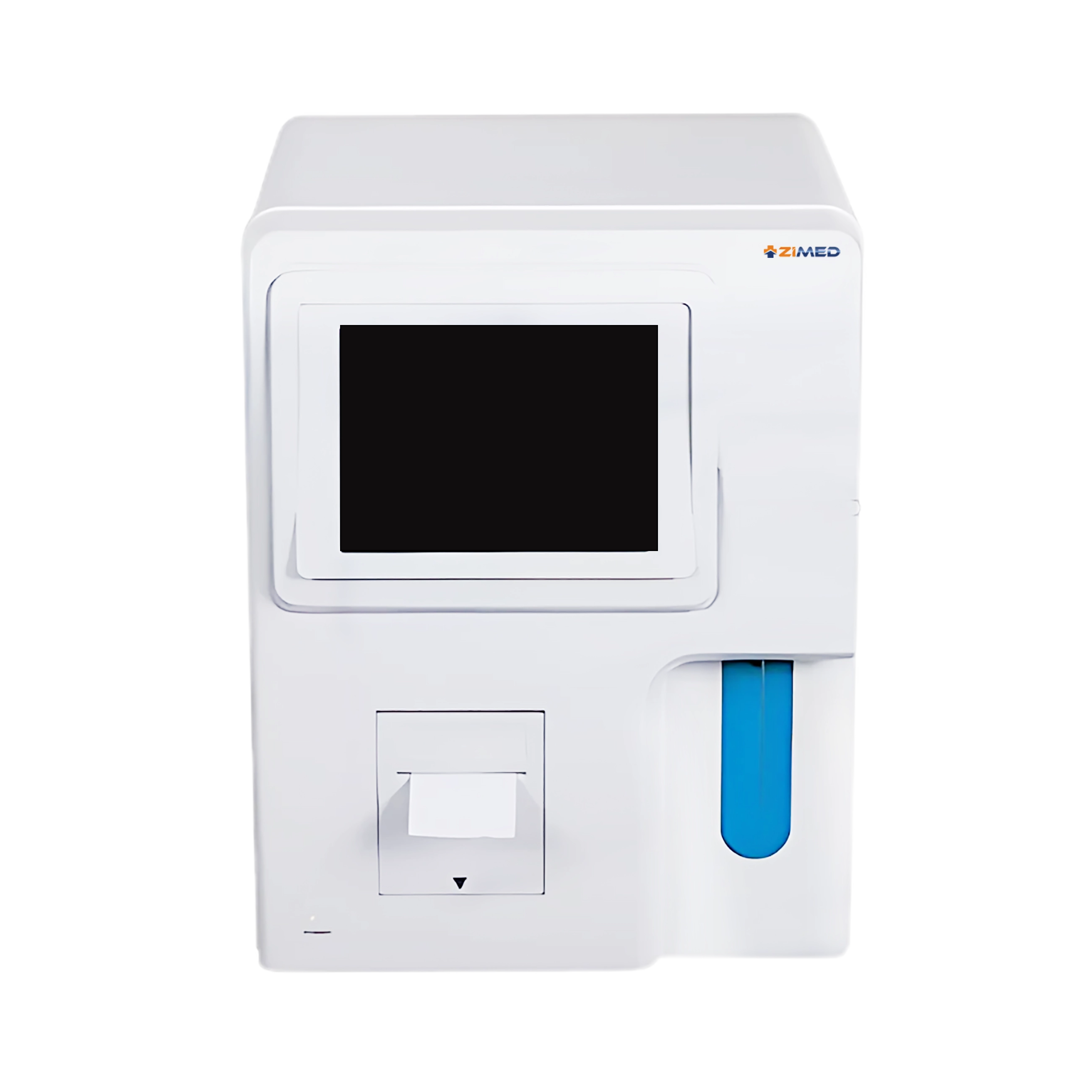

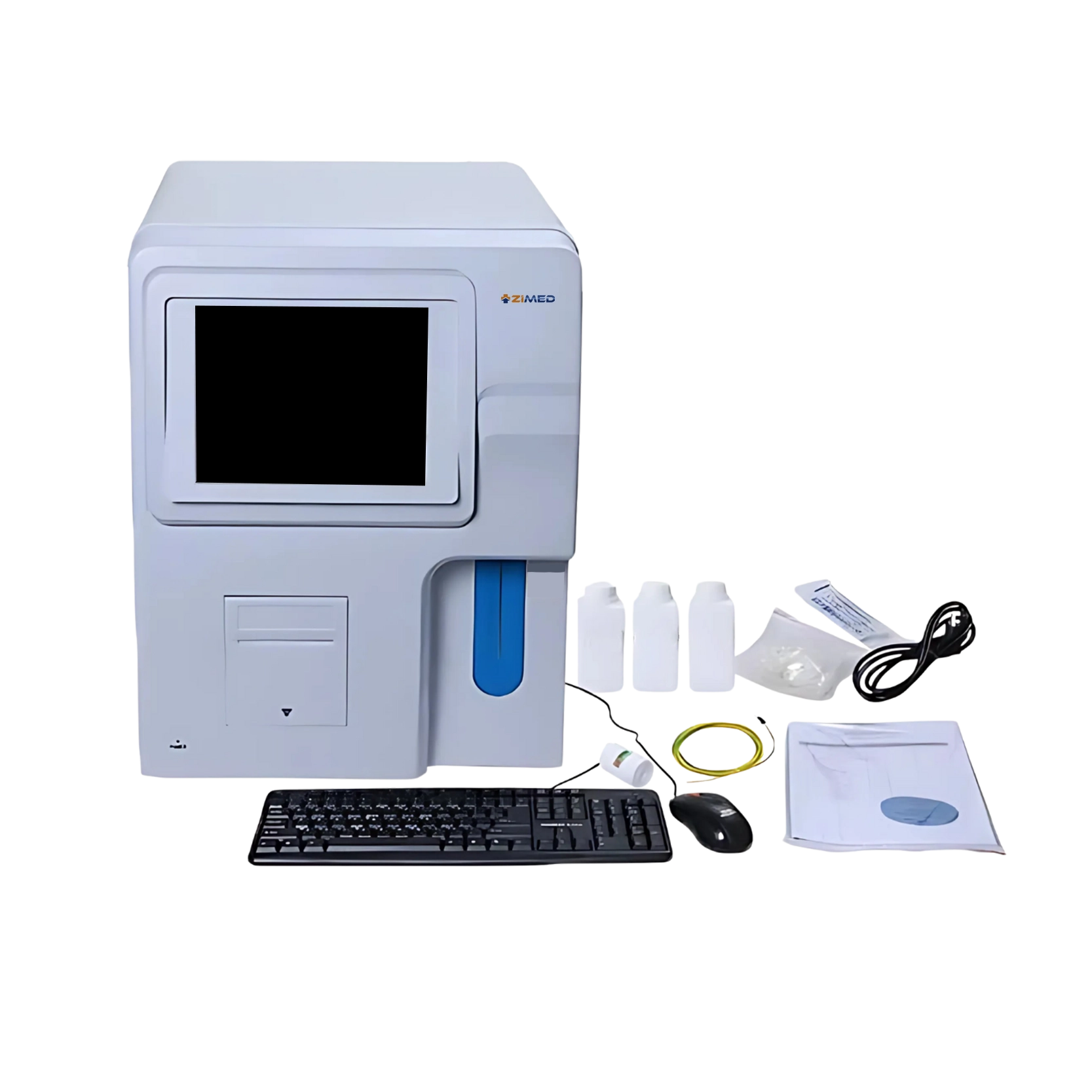

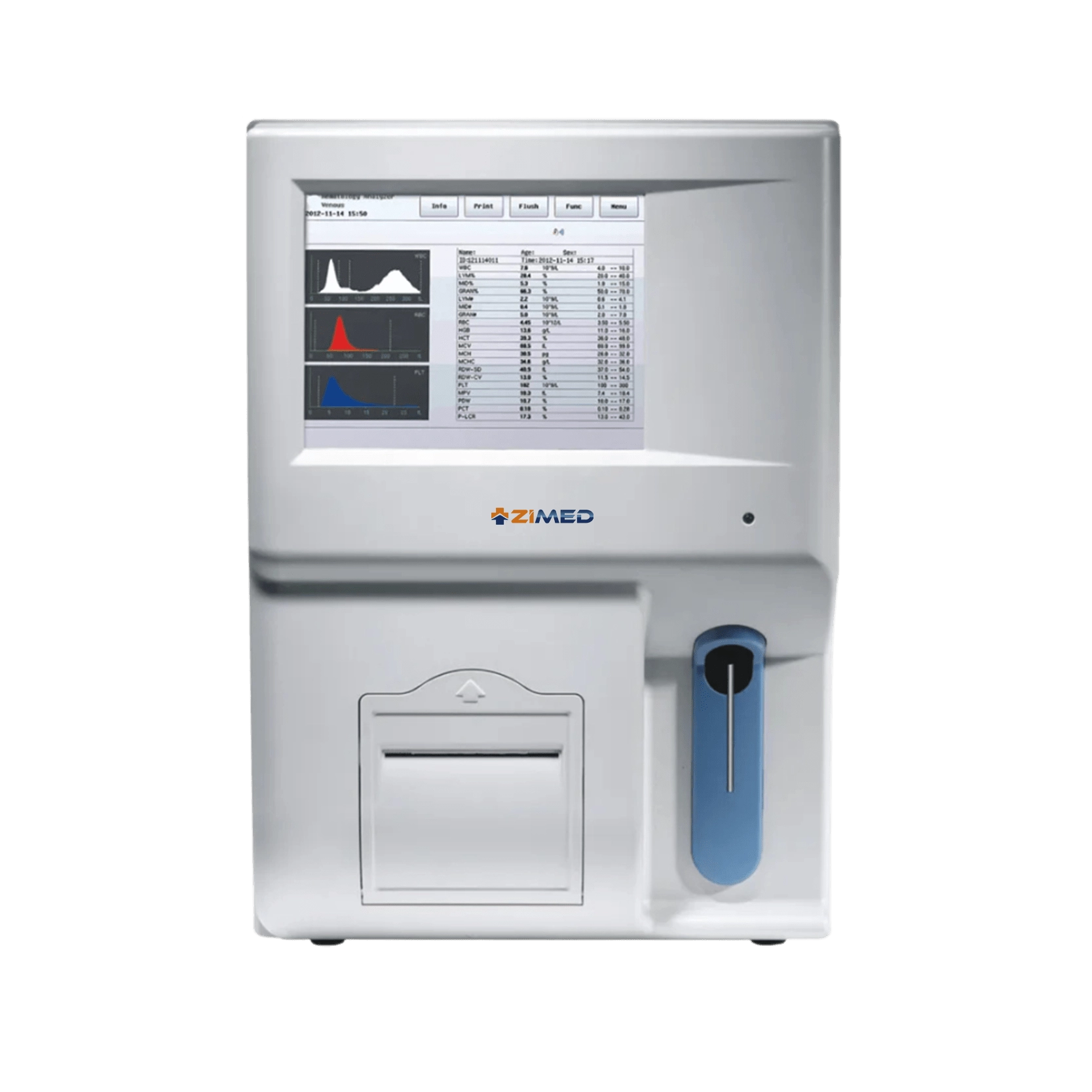

Hematology Analyzer ZHEA-B11 processes over 70 samples per hour with 24 essential parameters. It offers a high precision of <2% CV for WBC, <1.5% CV for RBC, and HGB. With its advanced electrical resistance counting and SFT method of hemoglobin measurement, the device ensures precision while minimizing errors. Our product features an 8.4-inch color touch screen that provides an intuitive user interface, and the system supports both manual and automatic calibration for seamless operation.
| Performance | 3-part differentiation of WBC, 24 parameters |
| Throughput | 70+ samples per hour |
| High precision | CV% ≤ 2.0% (WBC), ≤ 1.5% (RBC & HGB) |
| Sample volume | Venous 8µL, Capillary 8µL, Pre-diluted 20µL |
| QC Control | X-B, L-J, XD, CV ≤ 6% |
| Display | 8.4-inch color touch screen |
| Usability | Supports mouse & keyboard operation |
| Language | Multilingual support (English, French, Spanish, Russian, etc.) |
| Storage | Up to 100,000 sample results + histograms |
| Automation | Automatic diluting, mixing, rinsing, and clog clearing |
| Maintenance | Sample probe self-cleaning (inside & outside) |
| Thermal printer | 57mm width |
| Connectivity | USB (4), RS232, Ethernet, VGA (external monitor) |
| Environment Condition | Operating Temperature: 15°C to 30°C Humidity: ≤ 10 to 90% Air Pressure: 70Kpa to 106Kpa |
| Power Supply | AC100-240V, 50/60Hz |
| Dimensions | 31 cm (L) × 38 cm (W) × 43 cm (H) |
| Weight | 20 kg |
Fast and high throughput
Processes 70+ samples per hour
Comprehensive & accurate
8.4-inch touchscreen
Hassle-free maintenance
Flexible connectivity
Hematology Analyzer ZHEA-B11 is ideal for hospitals, diagnostic laboratories, and research facilities, providing high-speed, precise, and automated blood analysis for comprehensive hematological evaluation across various patient groups, including adults, children, and neonates.
Frequently Asked Question
Hematology analyzers do not diagnose diseases but provide critical data that helps healthcare professionals identify conditions like anemia, infections, leukemia, and clotting disorders.
Routine maintenance includes: Daily cleaning to prevent clogging Replacing reagents and calibrating regularly Running quality control samples Following the manufacturer’s maintenance schedule
Refer to the user manual for error codes, check sample integrity, ensure reagent levels are sufficient, and clean the system. If issues persist, contact technical support.
Regularly perform system flushes, use high-quality reagents, and ensure proper sample preparation to avoid clots and debris entering the system.
Some hematology analyzers are specifically designed for veterinary use, while others require special settings or reagents to analyze animal blood samples accurately.
