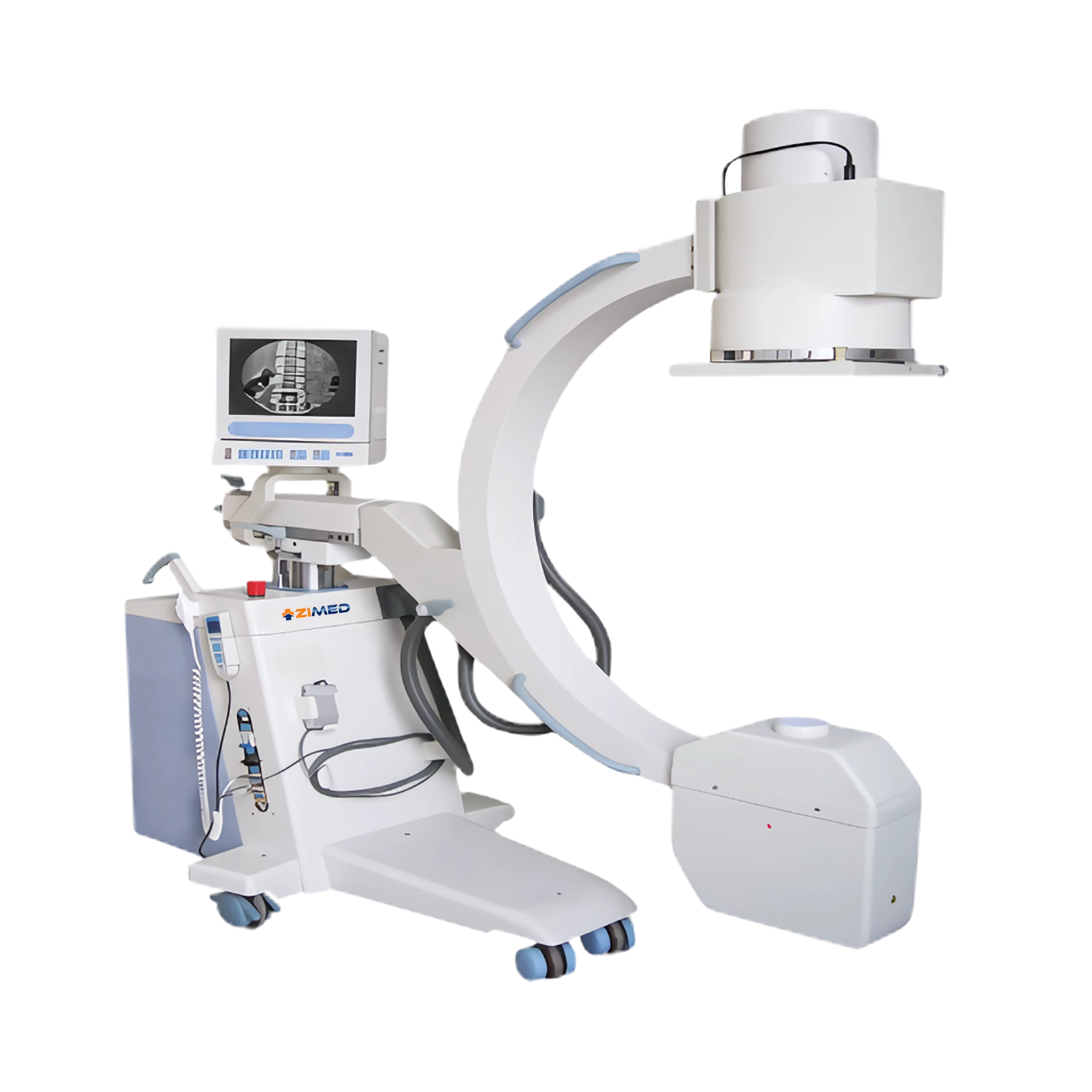

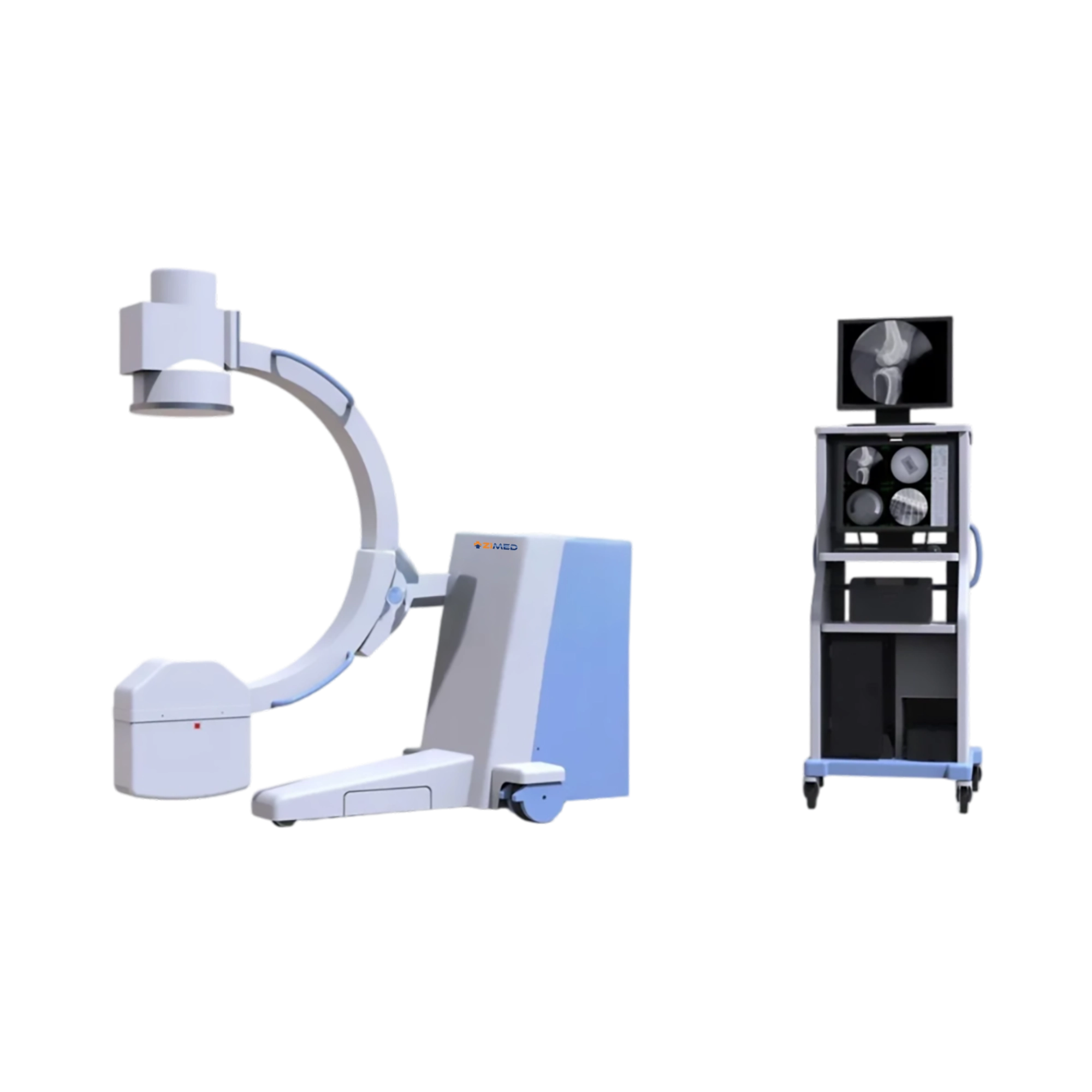

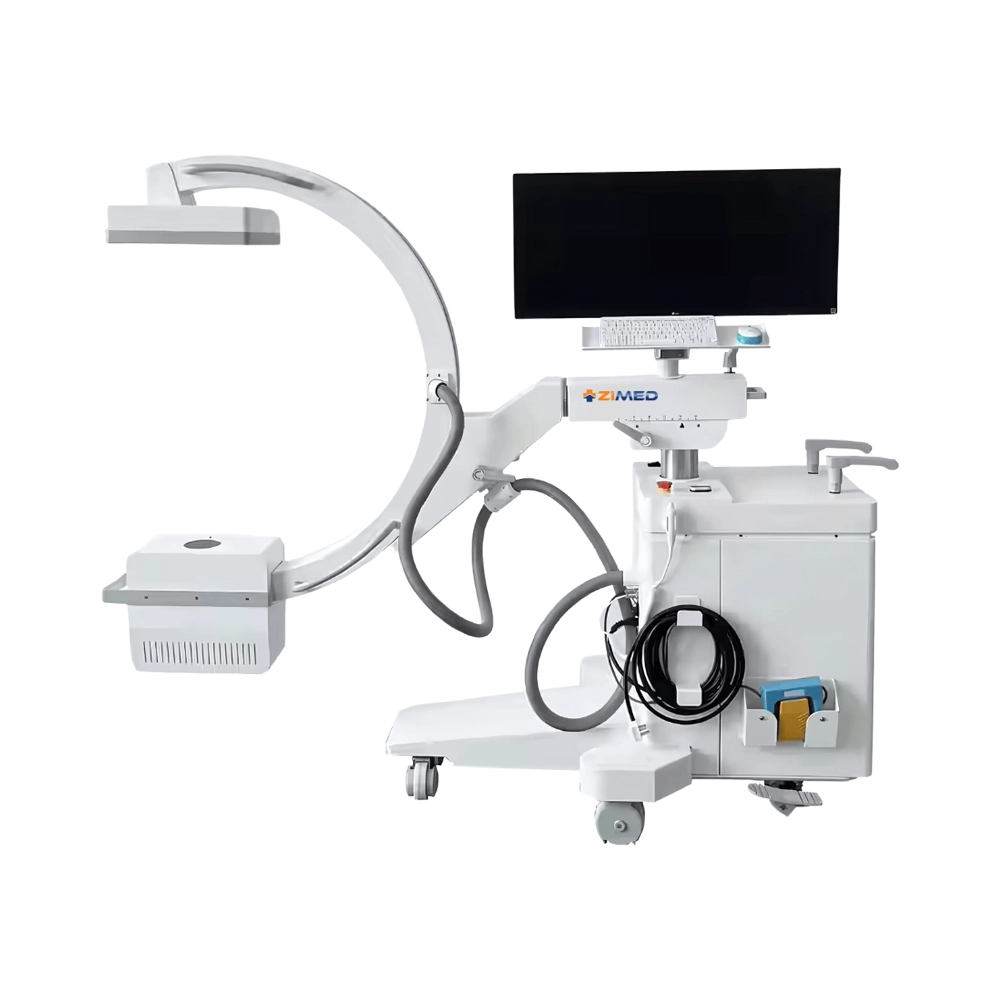

Zimed Radiography offer C-arm and digital radiographic machines featuring high frequency inverter to emit good quality X-rays at minimal radiation doses. X-ray beam is passed through the body, portion of the x-ray which pass through the internal body structure is transmitted to a detector to record image for later evaluation.
Fluoroscopic Capacity:
Tube Current: 20 to 63 mA
Automatic Fluoroscopy Adjustment: 40 to 110 kV, 0.3 to 4 mA
X-ray Tube: Fixed Anode Small Focus: 0.3 mm, Large Focus: 1.5 mm Thermal Capacity: 35 kJ
Maximum Rated Capacity: 3.5 kW
Tube Voltage and Current Combination:
40 to 49 kV: 1 to 125 mAs
50 to 59 kV: 1 to 110 mAs
60 to 69 kV: 1 to 90 mAs
70 to 79 kV: 1 to 80 mAs
80 to 89 kV: 1 to 71 mAs
90 to 99 kV: 1 to 63 mAs
100 to 110 kV: 1 to 40 mAs
Fluoroscopic Tube Voltage: 40 to 120 kV
Fluoroscopic Tube Current: 20 to 100 mA
Fluoroscopic Tube Voltage (Auto): 40 to 120 kV (automatic adjustment)
Fluoroscopic Tube Current (Auto): 0.3 to 4 mA
Anode tube parameters:
Rotating Anode tube: 15kW
Stationary Anode tube: 5kW
Rotating Anode speed: 2800 rmp
Anode Heat Storage: 300KHU
Frame rate:
30 frame/sec
Image display time:
0.8s
Focal Spot value:
0.3 mm/ 0.6 mm

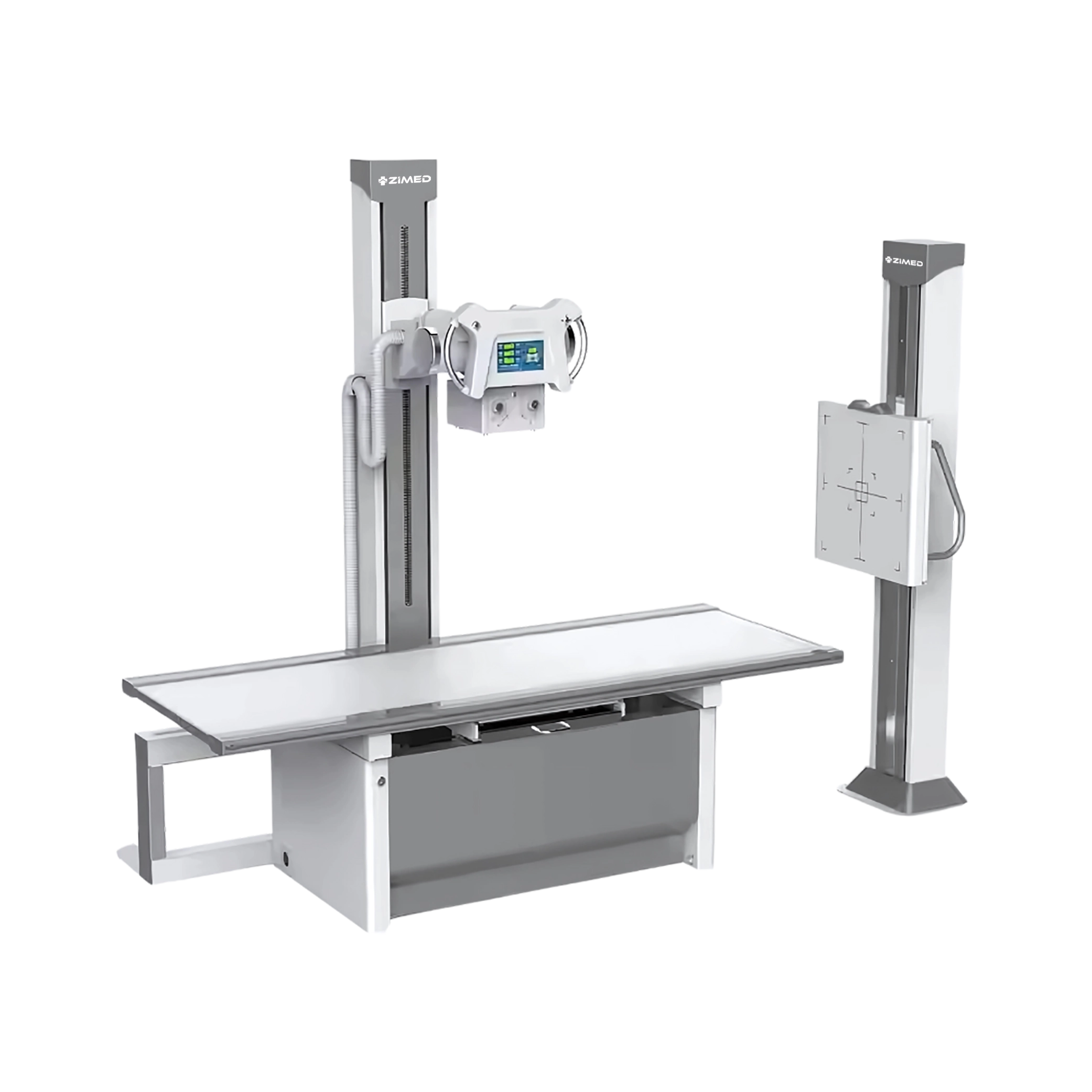

X-ray Machine:
| Power Output | 26 kW |
| X-ray Tube (Dual Focus) |
|
| Tube Voltage | 40 kV to 130 kV |
| Tube Current | 200 mA |
| Inverter Frequency | 60 kHz |
| Thermal Capacity | 900 kJ |
| Rotatory Anode Speed | 3000 rpm |
| mAs | 360 mAs |

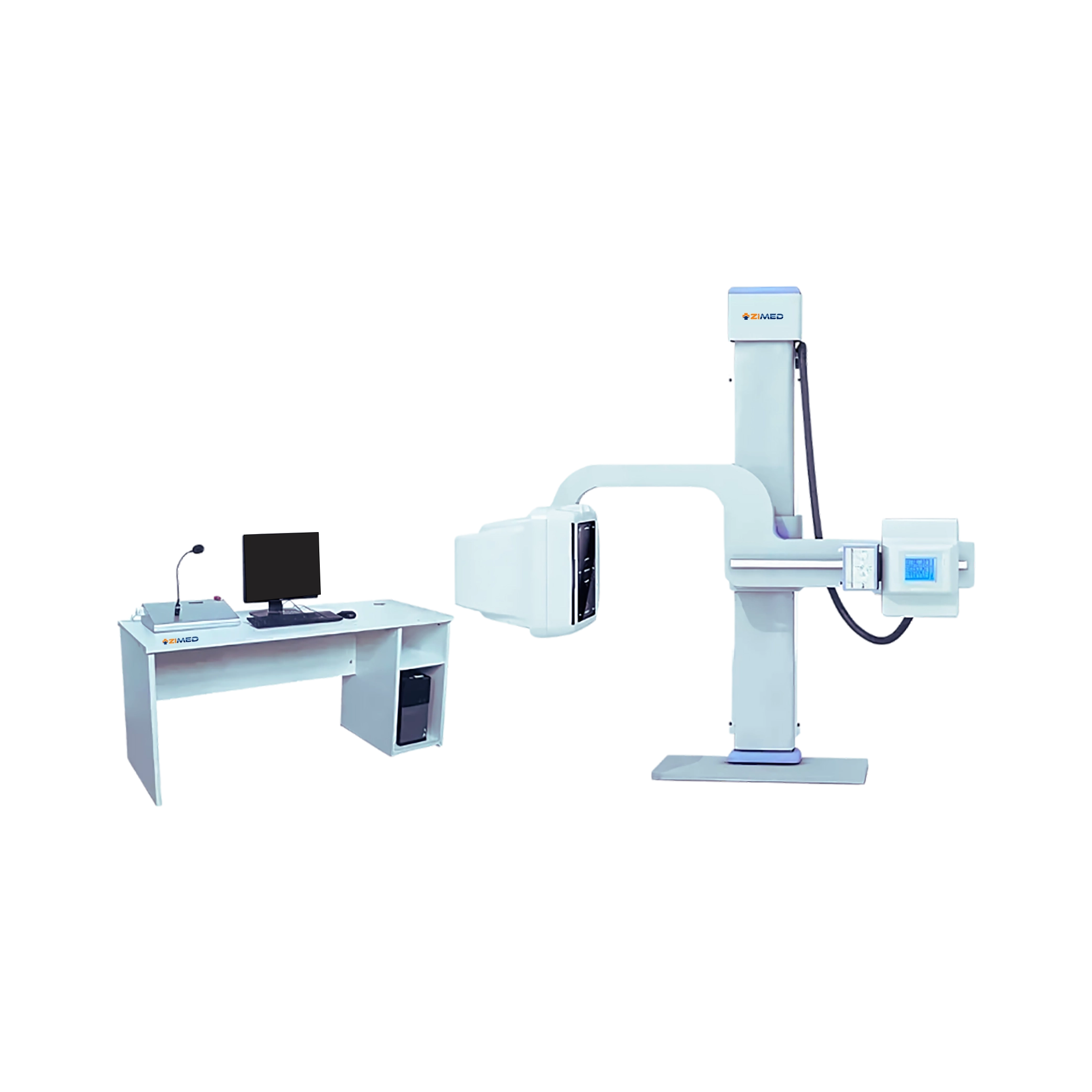

U-shaped Arm:
| Rotation Range | -40 ° to +130 ° |
| Motorized Vertical Travel | 450 mm to 1700 mm |
| Anode to Screen Range | 1000 mm to 1800 mm |
Digital Detector:
| Type | Charge-coupled device (CCD) |
| Screen Size | 17 × 17 inch |
| Pixel Size | 108 µm |
| Imaging Time | 7 sec |
| Image Storage and Transmission | DICOM 3.0 |
| Radiography Bed Size | 2000 mm × 650 mm |
Photography Bed:
| Type | Charge-coupled device (CCD) |
| Screen Size | 17 × 17 inch |
| Pixel Size | 108 µm |
| Imaging Time | 7 sec |
| Image Storage and Transmission | DICOM 3.0 |
| Radiography Bed Size | 2000 mm × 650 mm |

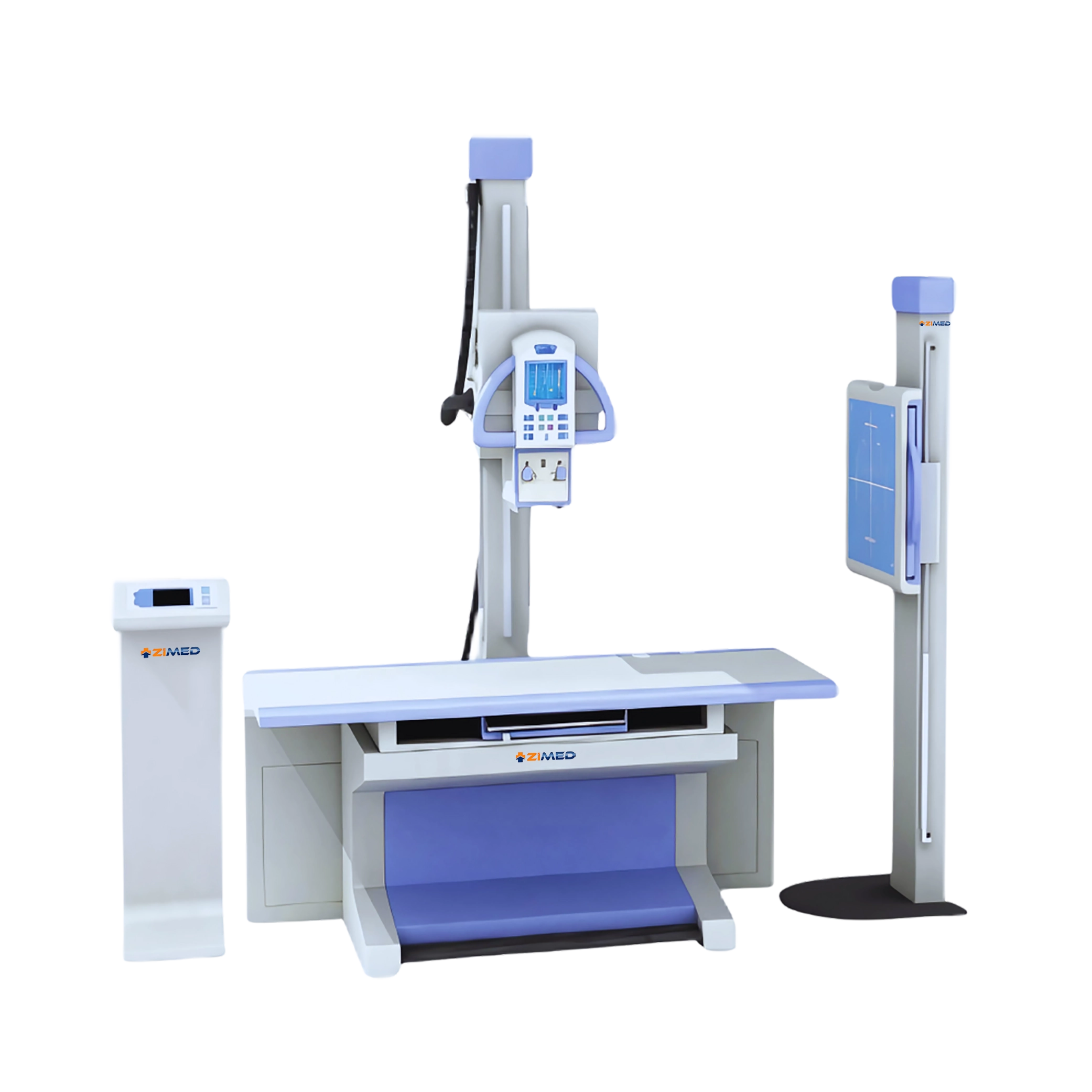

X-ray Machine:
| Tube Voltage | 40 kV to 150 kV |
| Tube Current | 10 mA to 630 mA |
| Focus | 0.6 mm / 1.2 mm |
| Time | 2 to 6300 ms |
| Power | 380 V ± 38 V (AC) |
| Internal Resistance | 380 V : 0.5 Ω |
| Rotating Speed | 2800 rpm |
| Allowed Frequency Variation | 50 Hz to 60 Hz ± 1 Hz |
Digital Detector:
| Screen Size | 17 × 17 inch |
| Image Preview Time | Not more than 2 sec |
| Pixel Pitch | 127 µm |
| Special Resolution | Not less than 3.9 lp/mm |
Radiography Machine Frame:
| Operation mode | Manual / electronic |
| Horizontal shift | ≥ 250 mm |
| Vertical shift | ≥ 825 mm |
| Table top size | 2100 × 825 × 655 mm |
| Maximum Load capacity | 250 kgs |
Power output: 25 kW
Inverter frequency: 40 kHz
X-ray tube (dual focus): Large focus: ( 1.3 × 1.3 ) mm
Tube current: 200 mA
Frequently Asked Question
Radiography is a trusted diagnostic imaging solution designed to deliver high-quality digital X-ray results with precision, speed, and reliability for medical professionals.
Yes, all Zimed systems support seamless integration with PACS (Picture Archiving and Communication System) for easy storage, retrieval, and sharing of medical images.
X-ray is a type of radiography. Radiography refers to the broader imaging technique using radiation.
Yes, Zimed offers scalable solutions tailored for different settings, from high-throughput hospital radiology departments to compact, space-efficient systems for clinics and diagnostic centers.
Absolutely. Many Zimed systems are equipped with wireless flat-panel detectors, allowing for greater flexibility, faster image transfer, and reduced cable clutter in clinical settings.
