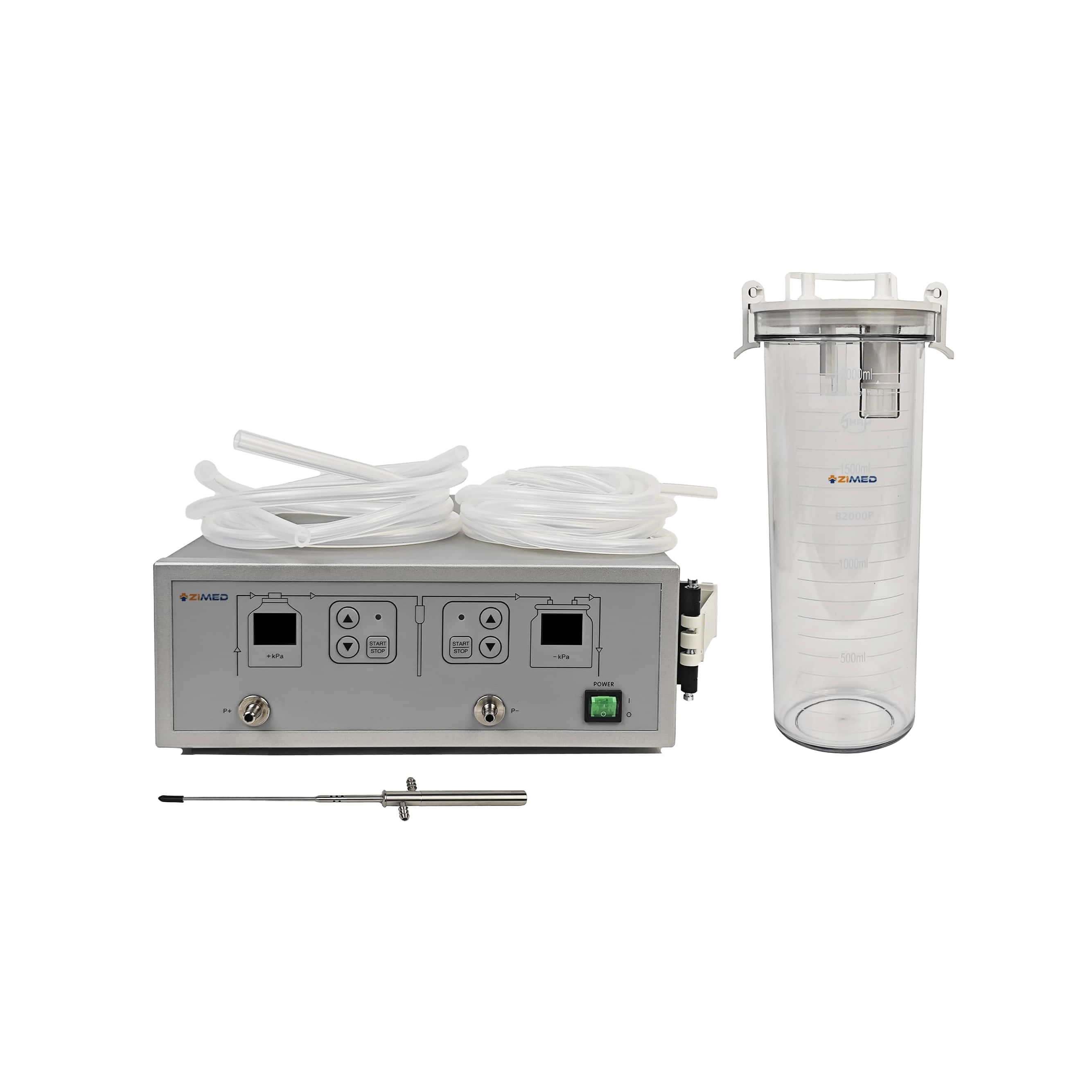

Flushing and Suction Machine ZFSM-A10 features a positive pressure range of 10 kPa to 50 kPa. It also has a suction flow rate of ≥1500 ml/min to ensure precision and reliability for critical applications. Our product is built to perform under pressure, it operates quietly at <70 dB, making it ideal for sensitive healthcare settings. Elevate the medical procedures with a system engineered for safety, efficiency, and long-term performance.
| Positive Pressure Regulation Range | 10 kPa to 50 kPa |
| Negative Pressure Regulation Range | -50 kPa to -10 kPa |
| Rinse Flow | > 1000 ml/min |
| Suction Flow | ≥ 1500 ml/min |
| Machine Noise | < 70 dB (A) under working conditions |
| Temperature Regulation | Max casing surface temp ≤ 60°C at 23°C ± 2°C |
| Protection Against Electric Shock | Class I |
| Ingress Protection (IP Rating) | Main unit IP00 |
| Safety Classification for Flammable Gases | Non-AP/Non-APG type |
| Operating Environment | Temperature: 5°C to 40°C, Relative Humidity: ≤80% RH, Pressure Range: 70 kPa to 106 kPa |
| Storage & Transportation Environment | Temperature: -40°C to 55°C, Relative Humidity: <95% RH, Pressure Range: 50 kPa to 106 kPa |
| Expected Lifespan | 5 years |
| Power Input | 50VA ±10% |
| Power Supply | AC 220V, 50Hz |
| Structure Dimensions | 345 × 335 × 130 mm |
| Weight | 6.8 kg |
Precision pressure regulation
High-performance flow rates
Low noise operation
Temperature safety
Class I protection against electric shock
Non-AP type for flammable anesthetic gas safety
Compact and durable design
Energy-efficient operation
Environmentally adaptive
Extended lifespan
Accessory | Quantity |
Power Cord | 1 |
Fuse | 2 |
Effluent Bottle | 1 |
Suction Tube | 1 |
Filter | 1 |
Silicone Tube | 1 |
Air Tube | 1 |
Liquid Tube | 1 |
Gas-Liquid Converter | 1 |
Wash Needle | 1 |
Flushing and Suction Machine ZFSM-A10 is essential for precise fluid management in medical procedures, ensuring effective irrigation, debris removal, and maintaining a clear surgical or diagnostic field in operating rooms, clinics, and healthcare facilities.
Zimed Flushing and Suction System offers the perfect synergy of efficiency and hygiene. They are designed to meet the rigorous demands of modern medical procedures. The power suction removes fluids and debris swiftly to maintain a clean and clear field. Their efficient flushing provides precise, controlled irrigation to reduce contamination risks. Engineered for seamless operation, these advanced systems ensure optimal fluid management, offering unparalleled control for critical environments. Our devices minimize noise, ensuring patient comfort and reducing procedural stress. Ideal for operating rooms, laboratories, and diagnostic facilities.
Frequently Asked Question
The system features precise pressure regulation capabilities with adjustable ranges to meet various clinical needs: Positive pressure can be regulated between 10 kPa to 50 kPa Negative pressure can be adjusted from -50 kPa to -10 kPa This precise control ensures safe and effective fluid management during procedures, minimizing the risk of tissue damage or improper suction.
The device is engineered with temperature regulation to maintain safe external surface conditions: Even during continuous operation, the casing temperature does not exceed 60°C, when the surrounding temperature is 23°C ± 2°C This helps prevent accidental burns and supports safe handling during and after use.
No, the unit is designed as a Non-AP/Non-APG type, meaning it should not be used in environments containing flammable anesthetic gas mixtures. This classification is important for operating rooms or labs where volatile substances may be present.
Absolutely. The system is designed to perform reliably under varying environmental conditions: Operating temperature: 5°C to 40°C Operating humidity: ≤80% RH Operating pressure: 70 kPa to 106 kPa It’s also rugged enough to withstand transportation and storage in harsher conditions: Storage temperature: -40°C to 55°C Storage humidity: <95% RH Storage pressure: 50 kPa to 106 kPa
It is classified as Class I, indicating a high level of protection against electric shock with proper grounding.
Cleaning should be performed after each use, following manufacturer guidelines to prevent contamination and ensure proper function.
Yes, many systems have both disposable and reusable parts, such as tubing, filters, and collection canisters, which should be replaced regularly.
Check for clogged tubing, ensure the vacuum pump is functioning, and verify that all connections are secure. If issues persist, consult the user manual or a technician.
Yes, but pressure settings and fluid choices should be adjusted based on the patient’s condition and medical requirements.
