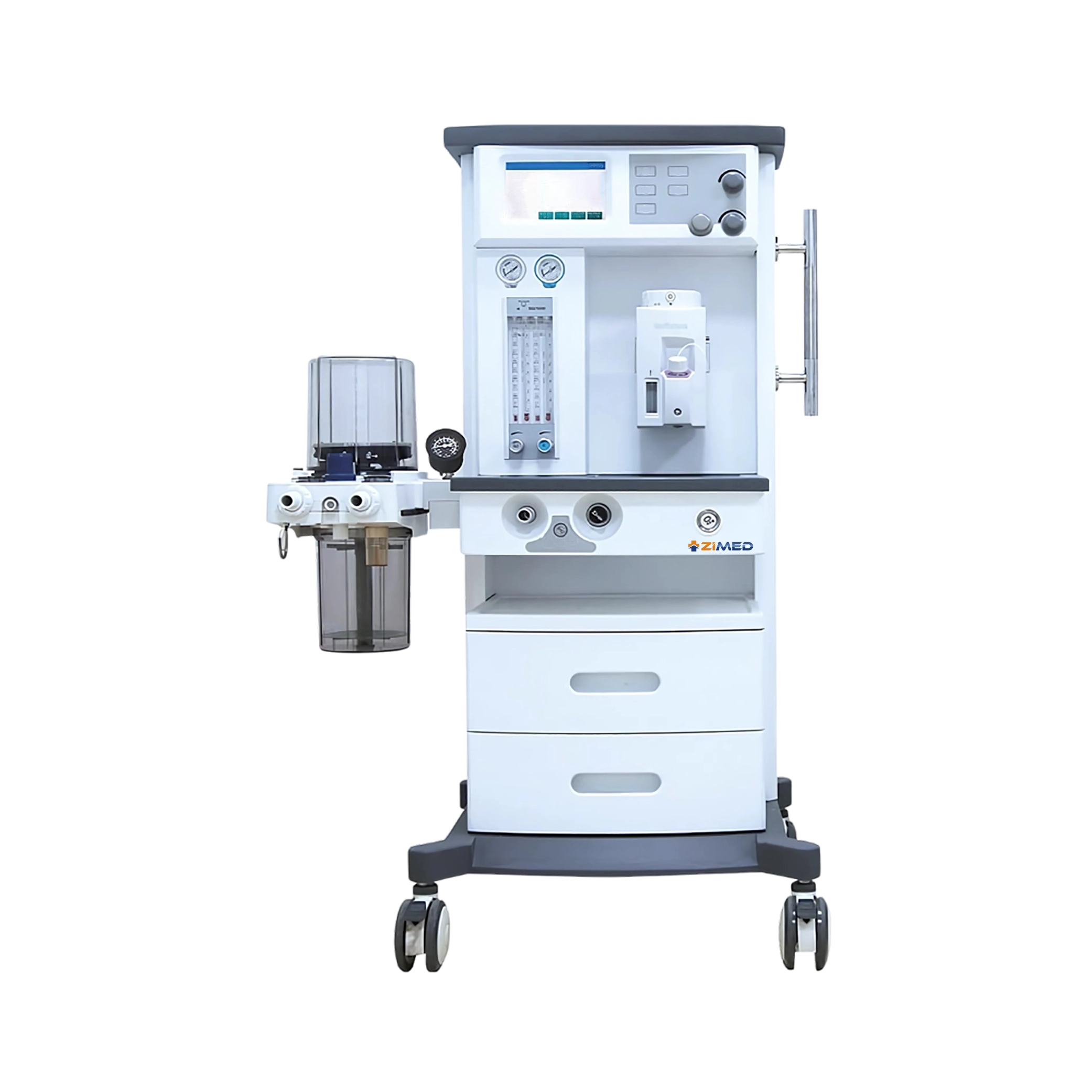

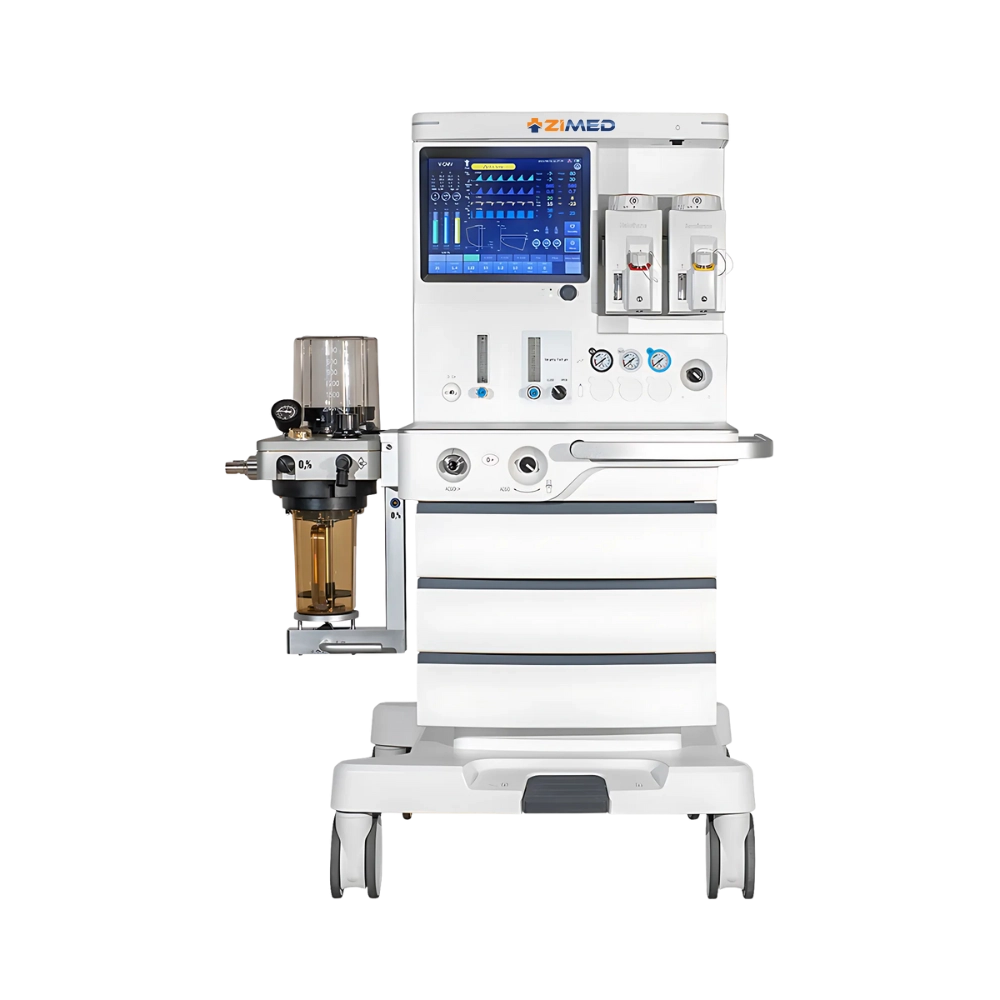

Anesthesia Machine ZAM-A13 operates with gas pressures of 280 to 600 kPa and a 1.5L bellow volume, ensuring consistency. It supports inhalation anesthesia for adult, pediatric, and neonatal patients. The machine’s oxygen concentration adjusts between 15% to 100%. The visual and audio alarms cover power, battery, oxygen levels, and airway pressure, ensuring patient safety. Our hospital anesthesia machine is an indispensable tool for anesthesiologists and healthcare providers.
| Ventilation Mode | IPPV, A/C, PCV, SIMV, SIGH, MAUN |
| Gas Source | O₂, N₂O, AIR |
| Flowmeter Range | O₂: 0.1 to 10 L/min N₂O: 0.1 to 10 L/min AIR: 0.1 to 10 L/min |
| Rapid Oxygen Supply | 25 L/min to 75 L/min |
| Oxygen Concentration | 15% to 100% |
| Inspiratory-To- Expiratory Ratio | 4:1 to 1:8 |
| Tidal Volume (VT) | 20ml to 1500ml |
| Minute Volume (MV) | ≥ 18L/min |
| Respiratory Rate (Freq) | 1bpm to 100bpm |
| Positive End-Expiratory Pressure (PEEP) | 0cmH₂O to 30cmH₂O |
| Pressure Control (PC) | 5cmH₂O to 60cmH₂O |
| Pressure Trigger (PTr) | -20 cmH₂O to 20 cmH₂O |
| Flow Trigger (FTr) | OFF, 0.5 L/min to 30 L/min |
| Inspiratory Time (Tinsp) | 0s to 12s |
| Inspiratory Pause (TIP) | 0s to 6s |
| Apnea Ventilation | OFF, 5s to 60s |
| SIGH | 1/100 to 5/100 |
| Gas Pressure | 280kPa to 600kPa |
| Bellow Volume | 1.5 L |
| Graphical Display | P-T (pressure – time) F-T (flow – time) P-V loop (Pressure – volume loop) |
| Alarms | AC Power Failure Alarm: Power failure or no connection Internal Battery Low Voltage: < 10.2 ±0.3V No Tidal Volume: ≤5mL within 6s High Oxygen Concentration: 19% to 100% Low Oxygen Concentration: 18% to 99% High Airway Pressure: 20cmH₂O to 100 cmH₂O Low Airway Pressure: 0 cmH₂O to 20 cmH₂O High Minute Volume: Adult (5L/min to 20L/min) Low Minute Volume: Pediatric (1L/min to 15L/min, 0 to 10L/min) Continuous Pressure: (PEEP + 1.5 kPa) over 16s Suffocation Warning: 5s to 60s no spontaneous ventilation Maximum Limited Pressure: ≤ 12.5 kPa |
| Error Indicators | Fan Error: Shown on screen Oxygen Deficit: Shown on screen |
| Display | 12.1"Colorful TFT LCD display screen |
| Power Consumption | 85VA |
| Power Supply | 100V to 240V, 50/60Hz |
| Packaging Dimensions | 1005 × 960 × 1700 mm |
| Net Weight | 116.5 kg |
| Gross Weight | 227 kg |
Three-level visual and audio alarms
Multiple ventilation modes
Adjustable oxygen concentration
Rapid oxygen supply
Real-time graphical display
Patient-triggered ventilation sensitivity
2-3 hours backup battery
With altitude compensation
Accessories | Quantity |
Anesthetic breathing system | 1pc |
Power cord | 1pc |
Fuse | 3pcs |
O₂ cell | 1pc |
Adult anesthesia breathing circuit (reusable) | 2pc |
Child anesthesia breathing circuit (reusable) | 2pc |
Breathing tube | 1pc |
Y connector | 2pc |
L connector | 2pc |
Straight connector | 1pc |
Reservoir bag 1L | 1pc |
Reservoir bag 3L | 1pc |
Anesthetic mask adult | 1pc |
Anesthetic mask infant | 1pc |
High pressure O₂ hose | 1pc |
High pressure air hose | 1pc |
High pressure N₂O hose | 1pc |
Auxiliary Common Gas Outlet (ACGO) | 1pc |
Top light | 1pc |
Auxiliary AC Power Socket | 4pc |
Drawers | 3pc |
Vaporizer | 2pc |
Spare Cylinder yoke, 1 O₂, includes gauges
Spare Cylinder yoke, 1 N₂O, includes gauges
Anesthetic gas scavenging system
Disposable adult breathing circuit
Disposable pediatric breathing circuit
Patient monitor
Our Anesthesia Machine ZAM-A13 is used in ICUs, operating rooms, and anesthesiology departments for delivering inhalation anesthesia and advanced respiratory management for adults, children, and infants.
Frequently Asked Question
The anesthesia machine offers multiple ventilation modes, allowing flexibility for different patient conditions and surgical requirements
The anesthesia machine offers multiple ventilation modes, allowing flexibility for different patient conditions and surgical requirements.
Yes, the machine provides adjustable oxygen concentration, allowing precise control of oxygen delivery based on patient needs.
Yes, it has patient-triggered ventilation sensitivity, which allows the machine to respond to the patient’s spontaneous breathing efforts, improving comfort and synchronization.
The anesthesia machine includes a 2-3 hour backup battery, ensuring uninterrupted operation during power failures.
The Zimed Anesthesia System is a medical device used to deliver anesthetic gases and oxygen to patients during surgery or medical procedures. It ensures the patient remains unconscious, pain-free, and stable throughout the operation.
Our machine delivers a controlled mixture of gases, which the patient inhales through a mask or endotracheal tube. The ventilator supports breathing, and the vaporizer ensures precise delivery of anesthetic agents. Sensors monitor vital signs and gas concentrations for safety.
Yes, our anesthesia machines can function as ICU ventilators, providing long-term mechanical ventilation support for critically ill patients when needed.
The scavenging system collects excess anesthetic gases and vents them safely outside the operating room. Proper ventilation and personal protective measures further reduce exposure risks.
