Overview

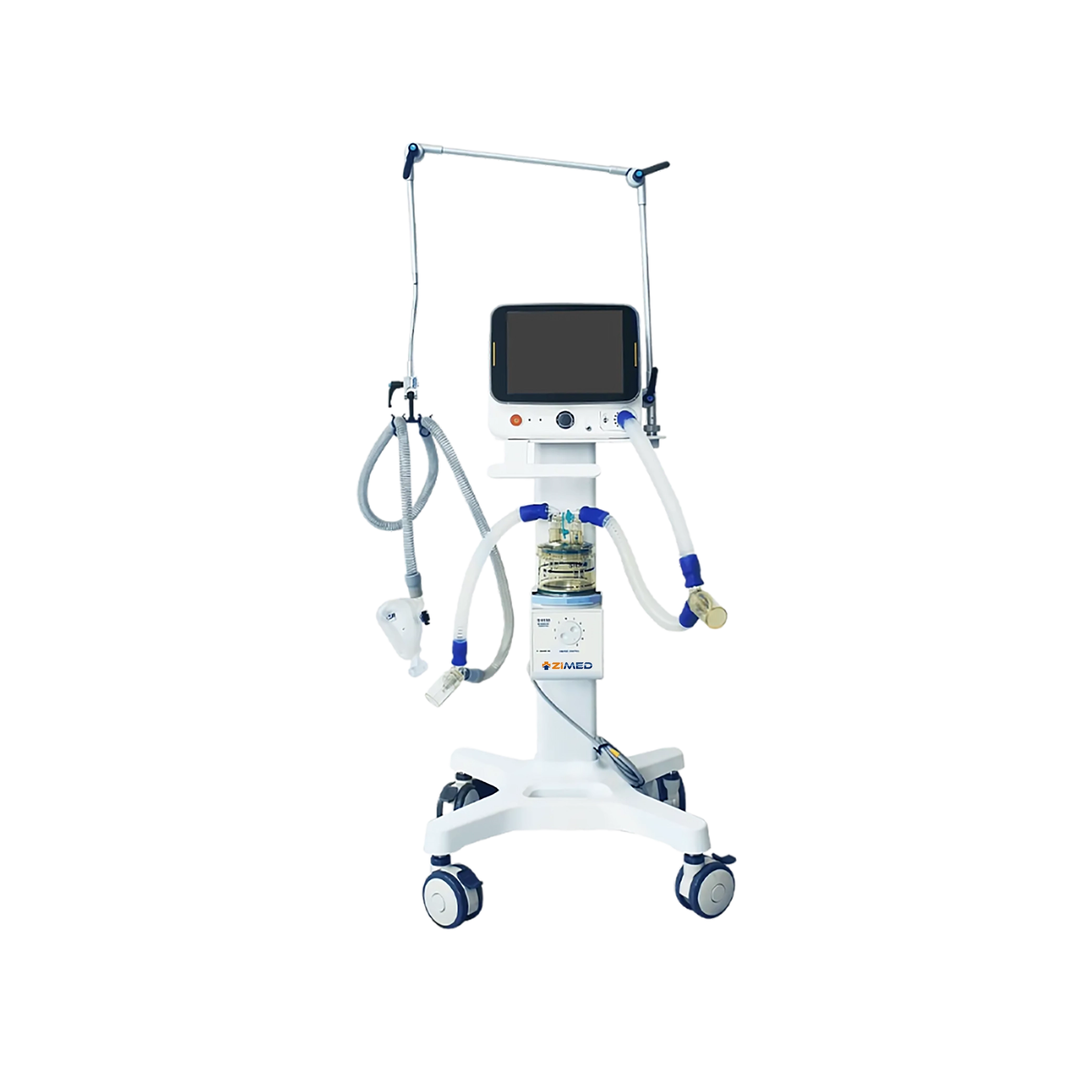

CPAP Machine ZCM-A10 operates on multiple ventilation modes, including S/T, T, S, CPAP, PC, HFNC, AUTO, and AVAPS. The screen displays critical breathing parameters, alarm information, and waveforms, ensuring accessible and detailed monitoring. It can withstand temperatures from 5°C to 40°C and humidity levels of 10% to 95%. Our CPAP Machine delivers versatile non-invasive ventilation for patients with respiratory insufficiency, ideal for both home and clinical use.
Specifications:
| Ventilation Mode | S/T, T, S, CPAP, PC, HFNC, AUTO, AVAPS |
|---|---|
| Tidal Volume | 200 mL to 1500 mL<br> Increment: 10 mL |
| Respiratory Rate | 3 bpm to 40 bpm<br> Increment: 1 bpm |
| Inspiratory Time | 0.0, 0.5s to 3.0 s<br> Increment: 0.1s |
| Inspiratory Pressure (IPAP) | 4 cmH₂O to 30 cmH₂O<br> Increment: 0.5 cmH₂O |
| Maximum Inspiratory Pressure (IPAPMAX) | 4 cmH₂O to 30 cmH₂O<br> Increment: 0.5 cmH₂O |
| Minimum Inspiratory Pressure (IPAPMIN) | 4 cmH₂O to 29.5 cmH₂O<br> Increment: 0.5 cmH₂O |
| Expiratory Pressure (EPAP) | 4 cmH₂O to 25 cmH₂O<br> Increment: 0.5 cmH₂O |
| Continuous Positive Airway Pressure (CPAP) | 4 cmH₂O to 20 cmH₂O<br> Increment: 0.5 cmH₂O |
| Pressure Delay Time | 0 to 60 min<br> Increment: 1 min |
| Pressure Rise Time | 0.1s to 0.6s<br> Automatic adjustment<br> Increment: 0.1s |
| Inspiratory Sensitivity | Automatic adjustment (Levels: 1, 2, 3)<br> Increment: 1 |
| Exhalation Sensitivity | Auto-adjust (Levels: 1, 2, 3)<br> Increment: 1 |
| Comfort Adjustment | Levels: Off, 1, 2, 3<br> Increment: 1 |
| Auto Function | On/Off |
| Pressure Limit | S, T, S/T, PC mode: 10 cmH₂O to 30 cmH₂O<br> Increment: 0.5 cmH₂O<br> CPAP mode: 10 cmH₂O to 20 cmH₂O<br> Increment: 0.5 cmH₂O |
| Frequency (Freq) | 0 to 100 bpm<br> Resolution: 1 bpm |
| Tidal Volume (VT) | 0 to 2000 mL<br> Resolution: 1 mL |
| Minute Ventilation (MV) | 0 to 99 L/min<br> Resolution: 0.1 L/min |
| Inspiratory Time (Ti) | 0 to 3.0s<br> Resolution: 0.1s |
| Respiratory Pressure | 0 to 40 cmH₂O<br> Increment: 0.1 cmH₂O |
| Apnea Alarm | Detects absence of breath for ≥10s |
| Breathing Circuit Disconnection Alarm | Alerts when the circuit is disconnected for ≥15s |
| Low Ventilation Volume Alarm | Off, 0.5 L/min to 15 L/min |
| High Frequency Alarm | Off, 0 bpm to 99 bpm |
| Low Frequency Alarm | Off, 1 bpm to 60 bpm |
| High Airway Pressure Alarm | S, T, S/T, PC modes: 10 cmH₂O to 40 cmH₂O<br> CPAP Mode: 10 cmH₂O to 20 cmH₂O |
| Low Tidal Volume Alarm | Under AVAPS mode, adjustable |
| High Oxygen Concentration Alarm | 19 Vol.% to 100 Vol.% |
| Low Oxygen Concentration Alarm | 18 Vol.% to 99 Vol.% |
| Equipment High Temperature Alarm | When temperature exceeds 37°C (±10°C) |
| Low Oxygen Supply Pressure Alarm | When O₂ input pressure < 280 kPa |
| High Oxygen Supply Pressure Alarm | When O₂ input pressure > 600 kPa |
| Environmental Temperature Range | 5°C to 40°C |
| Environmental Humidity Range | 10% to 95% |
| Environmental Pressure Range | 60 kPa to 110 kPa |
| Noise | ≤45dB(A) at 10cmH₂O pressure level |
| Power Supply | AC: 100 V to 240 V, 50/60 Hz, 2.5 A MAX<br> DC: 24 V ±1.5 % (DC) 3.33A (adapter) |
| Internal Power Supply | 18.5 V, 2550 mAh |
| Dimensions (L×W×H) | 550 × 380 × 400 mm |
| Net Weight | 5.7 kg |
| Gross Weight | 11 kg |
Features
Multiple ventilation modes
High-performance in-built turbine
Humidifier prevents airway drying
Low noise operation
Auto-adjusting comfort and sensitivity levels
Comprehensive alarm system
Standard Accessories
Breathing circuit
Mask (Medium size)
Applications
Our CPAP Machine ZCM-A10 is used in home and medical settings to provide non-invasive ventilation for patients with respiratory insufficiency.
