Ultrasound Scanners

Zimed offer varied range of Ultrasound Scanners delivering top quality, high resolution images. Ultrasound images provide information about patient’s condition and the direction of care. Enhanced medical efficiency and increased productivity helps to achieve everyday medical need. Our products are ISO and CE approved and certified.

Ultrasound System ZUS-A10
compare product

  • Specification

    Transducer frequency
    Transducer probe connector 2
    Transducer probe type Convex array
    Probe central frequency 3.5 MHz
    2.0 MHz, 3.0 MHz, 5.0 MHz
    THI4.0 MHz
    Probe maximum scanning depth 295 mm (for abdomen, obstetric, gynecology, urology)
    Image storage 200 frames
    Pseudo color
    Work station
    Operating environment Ambient temperature : 5 °C ~ 40 °C
    Relative humidity : 25 % ~ 80 %
    Atmospheric pressure : 70 kpa ~ 106 kpa
    Transportation & storage Ambient temperature : -20 °C ~ 55 °C
    Relative humidity : 10 % ~ 95 %
    Atmospheric pressure : 50 kpa ~ 106 kpa
    Time gain compensation (TGC) adjustment
    Imaging mode  B, 2B, B/M, M, 4B
    Battery
    Monitor
    Image processing
    Image optimization software
    Power Input voltage : 100 V ~ 240 V
    Input power : 100 VA
    Frequency : 50 Hz / 60 Hz
    Fuse : F2AL 250 V (φ5 × 20 mm)
    Dimensions 370 × 320 × 280 mm
    Net weight 7.5 kg

  • Features

    • 10 inch high resolution medical LED monitor
      Puncture guidance technology
      High flexibility, hence give good quality image
      Real time visualization of the scanning organ
      Two USB ports for import and export of data
      Two activated transducer probe ports & holders
      Auto freeze function
      Supporting pseudo colors
Ultrasound System ZUS-A11
compare product

  • Specification

    Transducer frequency 2.5 - 5.0 MHz
    Transducer probe connector 1
    Transducer probe type
    Probe central frequency
    Probe maximum scanning depth
    Image storage 1024 images
    Pseudo color 5
    Work station
    Operating environment
    Transportation & storage
    Time gain compensation (TGC) adjustment 39- 99
    Imaging mode B, B/B, B/M, M, 4B
    Battery
    Monitor 10.4 inch
    Image processing
    Image optimization software
    Power
    Dimensions
    Net weight

  • Features

    • Portable and compact system
      High flexibility, hence give good quality image
      Real time visualization of the scanning organ
Ultrasound System ZUS-A12
compare product

  • Specification

    Transducer frequency 3.5 MHz
    Transducer probe connector 2
    Transducer probe type
    Probe central frequency
    Probe maximum scanning depth
    Image storage ≥ 1000 images
    Pseudo color 7
    Work station Yes
    Operating environment
    Transportation & storage
    Time gain compensation (TGC) adjustment 8
    Imaging mode B, 2B, 4B, BM, M
    Battery
    Monitor 12 inch LCD
    Image processing
    Image optimization software
    Power
    Dimensions
    Net weight

  • Features

    • Portable and compact system
      High flexibility, hence give good quality image
      Real time visualization of the scanning organ
Digital Ultrasound System ZUS-A20
compare product

  • Specification

    Transducer frequency 3.5 MHz
    Transducer probe connector 3
    Transducer probe type
    Probe central frequency
    Probe maximum scanning depth
    Image storage ≥ 1000
    Pseudo color 7
    Work station
    Operating environment
    Transportation & storage
    Time gain compensation (TGC) adjustment
    Imaging mode B, 2B, 4B, BM, M
    Battery Lithium (6 hours continues work )
    Monitor 15 inch LCD
    Image processing
    Image optimization software
    Power
    Dimensions
    Net weight

  • Features

    • Possesses 3 transport ports
      7 selectable pseudo colors
      Freely adjustable LCD monitor
      It stores more than 1000 image frames
      Presetting of more than one parameters
2D color doppler Ultrasound System ZUS-A30
compare product

  • Specification

    Transducer frequency 3.5 MHz
    Transducer probe connector 2
    Transducer probe type Electronic convex, linear, trans-vaginal
    Probe central frequency
    Probe maximum scanning depth
    Image storage
    Pseudo color
    Work station
    Operating environment
    Transportation & storage
    Time gain compensation (TGC) adjustment
    Imaging mode B, 2B, 4B, B/M, M, B/C, B/C/D, B/D, CFM, PRF, PW
    Battery
    Monitor 15 inch LCD
    Image processing
    Image optimization software
    Power
    Dimensions
    Net weight

  • Features

    • Main unit use 3.5 MHz electronic convex transducer
      2 transducer port
      Multi transmission frequency scans the deeper structure
      Image display modes are B, 2B, 4B, B/M, M, B/C, B/C/D, B/D, CFM (color flow mapping, PRF (pulse repetition frequency), PW (pulsed wave) etc.
      Other transducers used Cardiac transducer (3.5 MHz ), Trans-vaginal transducer ( 6.5 MHz ), Linear transducer ( 7.5 MHz )
2D color doppler Ultrasound System ZUS-A40
compare product

  • Specification

    Number of physical channels ≥ 64
    Number of probe array elements ≥ 128
    Probe type Convex array probe, linear array probe, intracavitary probe, micro convex probe, rectal probe, superconducting visual flow probe, phased array cardiac probe
    Imaging mode B, M
    Image enlargement Real-time scanning (B, B+C, 2B, 4B), state: stepless zoom
    Monitor High-resolution 19-inch widescreen LCD
    Dimension 520 × 700 × 1500 mm
    Packaging dimension 870 × 630 × 1200 mm
    Net Weight 43 Kg
    Gross weight 61 Kg

  • Features

    • Number of physical channels are ≥ 64 and number of probe array elements are ≥ 128
      High-resolution 19-inch widescreen LCD monitor for visualization of parameters
      10.4-inch LCD touch screen display for the ease of the user
      Instrument requires two sets of operating systems like Ultrasound system and Win7
      Real time point by point focus dynamic imaging for obtaining high resolution images
      Pulse inverse harmonic composite imaging for clear images
      Image enhancement and noise reduction technology for the reliability of the user
4D color doppler Ultrasound System ZUS-A41
compare product

  • Specification

    Transducer frequency
    Transducer probe connector 2
    Transducer probe type Convex, linear, trans-vaginal, 4-D volume, micro-convex, pediatric, multi frequency
    Probe central frequency
    Probe maximum scanning depth
    Image storage
    Pseudo color
    Work station
    Operating environment
    Transportation & storage
    Time gain compensation (TGC) adjustment
    Imaging mode
    Battery
    Monitor 15 inch LCD
    Image processing THI (tissue harmonic imaging), compound, SRA (speckle algorithm)
    Image optimization software I-image
    Power
    Dimensions
    Net weight

  • Features

    • Portable device with multi transducer connection port
      Wide range of transducers like convex, linear, trans-vaginal, 4D volume, multi frequency can be used
      Image display modes B, 2B, B/M, M, CFM, PW mode, Power Doppler/directional PD, Duplex, Trapezoidal, real time 4D, Chroma BP/W
      4D image provide ease image view

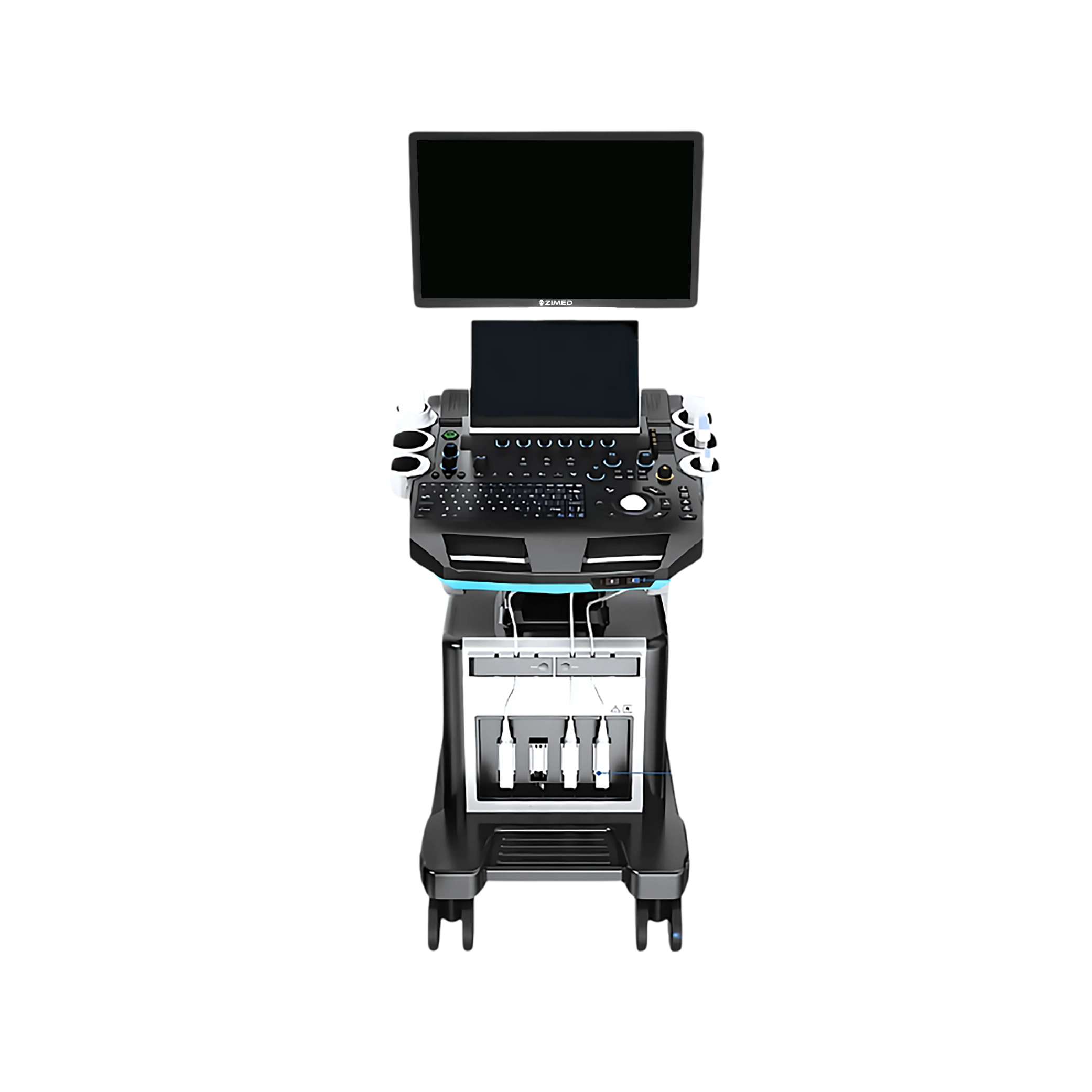

4D Color Doppler Ultrasound System ZUS-A51
compare product

  • Specification

    Probe ports 4 Active
    Transducer probe type Convex probe, linear probe, Micro-convex probe, R20 Phased array probe, Trans-vaginal probe, 4D volume probe
    Standard monitor size 21.5 inch, high definition medical grade LCD display, and 13.3 inch touch-screen
    Operating system Windows 10
    Optimization One key auto optimization

  • Features

    • High resolution display for observing the changes with high definition images
      Multi-beam parallel technology and sub-array element transducers
      Superior image clarity and abundant measurement for women’s healthcare
      Operational panel can lift 18 cm vertically for convenience of the user
      Touchscreen with 0 ° to 45 ° adjustable flip
      4 fully activated probe interfaces
      USB image storage expert for saving the images
      Connect external monitor and printer
      Integrated file information management system to record and check the data
      Diagnostics reports can be edited, embedded with report and printed directly
      Compact keyboard for easy operation of the device
      Main screen is 21.5 inch and auxiliary screen is 13.3-inch
      Medical ultrasonic touch screen for different angle observation
      4 D Real skin rendering function for enhanced imaging
      Windows embedded ultrasonic running platform
      Ergonomic design for better operation
      DICOM function, can be directly connected with the hospital PACS system
      Micron imaging technology for real time tracking of specific signals at the edges of different tissues
      Harmonic technology for enhanced image clarity, resolution and signal strength
      Efficient diagnosis of cardiovascular and abdominal diseases
      Automatic spectrum measurement
      Reduced noise with improved contrast resolution of tissue images
      Trapezoid imaging for better scanning of internal organs of the human body
      Automatic spectrum tracking technology for examining heart, arteries and veins
      Sub array technology for obtaining image details and high accuracy of clinical diagnosis
4D Color Doppler Ultrasound System ZUS-A61
compare product

  • Specification

    Probe ports 2
    Transducer probe types convex array, linear array, intra cavity, 4D volume, micro convex, phased array
    Monitor 15-inch LED
    Image processing Panoramic Imaging Tech, All-digital signal processing Tech, Multi-beam formation Tech, Speckle Reduction Tech, Tissue Harmonic Imaging Tech, Dynamic Tissue Optimization Tech, Duplex & Triplex Synchronous Display, Directional Power Doppler, Imaging Parameters Preset, Tissue Special Image, PW Auto Trace, Update in line, CF+B mode in one screen, Complex Model Imaging, IMT auto measurements, Virtual convex array, Trapezoidal imaging, CW mode
    Dimensions (L×W×H) 365 × 300 × 75 mm
    Packing dimension (L×W×H) 490 × 270 × 490 mm
    Net weight 5.5 Kg
    Gross weight 10 Kg

  • Features

    • Portable device with multi transducer connection port
      Wide range of transducers like convex array, linear array, intra cavity, 4D volume, micro convex, phased array can be used
      Image display modes B, 2B, 4B, M, B/M, B/C, B/D, B/C/D, B/CFM/D, CF+B model simultaneously, PDI Color, Dual Color, Simultaneous 2D/3D/4D Color Compound, PW, CW
      Duplex/Triplex, CFM, CDE, PD, Directional PD, CD, Anatomy M, and Color M mode
      4D image provide ease image view
      Intuitive Windows-based operating principle for simple operation
      On/Off task light and back-lit illumination of control panel for ease of the user
