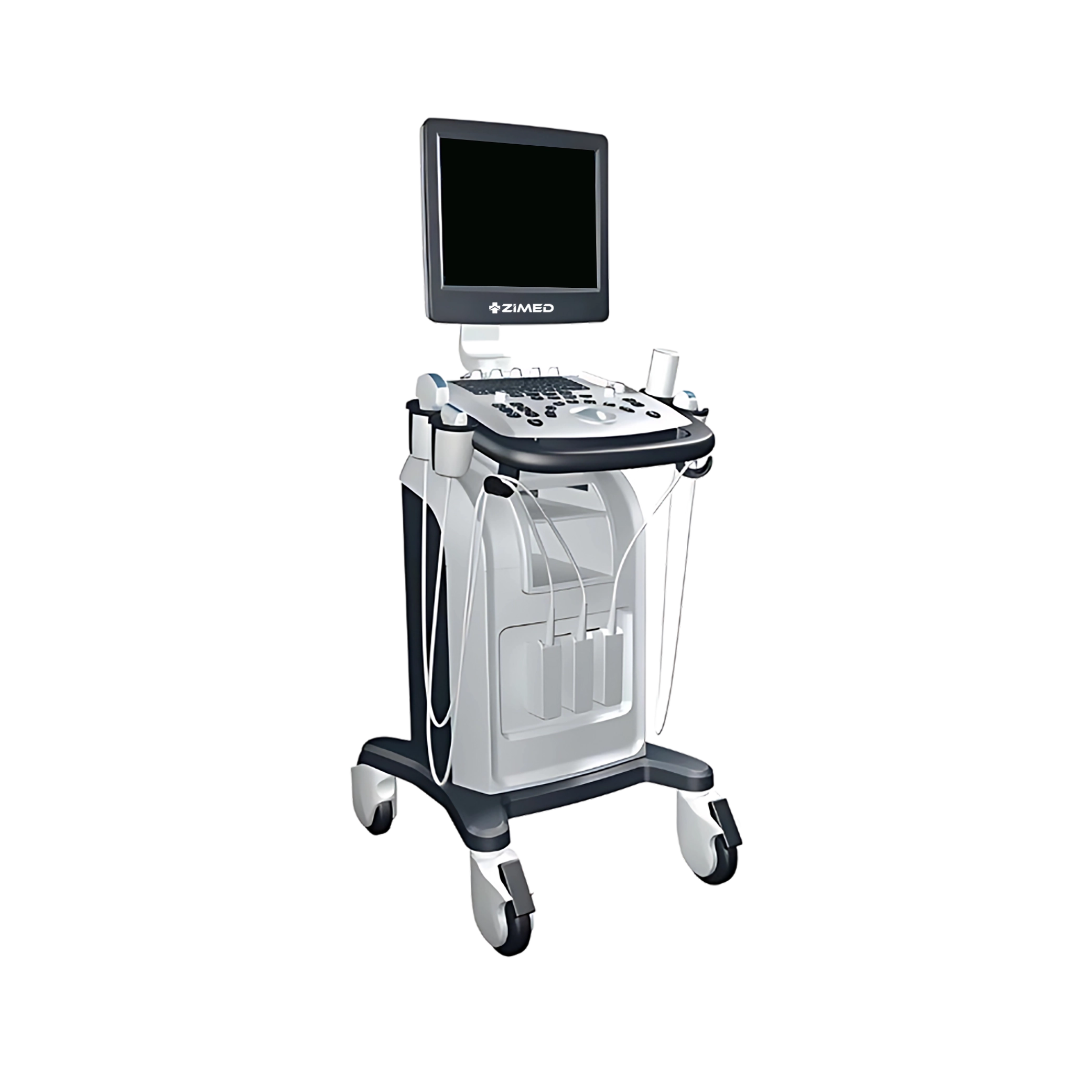

2D Color Doppler Ultrasound System ZUS-A40 features a 15-inch high-resolution LED monitor offering exceptional clarity. With a maximum cine memory of 1200 frames the system ensures efficient image recall and post-examination analysis. This system supports a wide array of transducer types, making it suitable for specialized clinical applications. It leverages automated tools to streamline workflow, ensuring fast and accurate anatomical and functional assessments.
| Monitor |
Size: 15 inch Contrast Ratio: 800:1 Resolution: 1024 × 768 pixel Brightness: 230 cd/m2 Color Depth: 24 bit Rotate angle: ± 90° Grey level: 256 |
| Cine/Image Memory |
Memory: 1200 frame(max) Review speed: 1,2,4,8 |
| Probe type |
Convex Probe, Linear Probe, Intra-Cavity Probe, Micro-convex probe 4D volume probe, Phased array probe |
| Frequency |
Convex Probe: Central 3.5 MHz (2.0 to 5.5MHz) Linear Probe: Central 7.5 MHz (6.0 to 12.0 MHz) Intra-Cavity Probe: Central 6.5 MHz (5.0 to 9.0MHz) Micro-convex probe: Central 4.0 MHz (2.0 to 9.0MHz) Micro-convex probe 4D volume probe: Central 3.5 MHz (2.0 to 6.5MHz) Phased array probe: 2.0 to 10.0MHz |
| Pitch |
Convex Probe: 0.516mm Linear Probe: 0.352mm Intra-Cavity Probe: 0.216mm |
| Radius |
Convex Probe: 60mm Intra-Cavity Probe: 10mm |
| Element |
128 |
| Imaging mode |
0. B, 2B, 4B, M, B/M, B/C, B/D, B/C/D, B/CFM/D, PDI Color, DPDI Color, Dual Color, Simultaneous 2D/Color Compound, PW, CW, Duplex/Triplex, CFM, CDE, PD, Directional PD, CD, B+CF |
| Measurement |
B-mode: Distance, Angle, Perimeter and Area (ellipse or track-based method), Volume, Histogram, Sectional Map M-mode: Heart Rate, Time, Distance, Speed |
| Imaging performance |
Startup Time: Average less than 90 seconds Preset Switching Time: Average less than 1 second Storage Time (Image to Disk): Average less than 0.5 second |
| Image & video format |
Storage format: PNG, AVI, BMP, JPEG, DICOM Export image format: AVI Export video format: PNG, JPEG, BMP, DICOM |
| Zoom range |
100 to 400 % |
| Ports |
Transducer: 4 USB: 2 |
| Speaker |
Impedance: 4Ω Power: 5W |
| Connectivity |
DICOM 3.0 Compliant |
| Power supply |
Voltage: 100 to 240 V Frequency: 50/60 Hz Power: DC 12.8V, 3A |
| Packaging Dimensions |
1620 × 720 × 950 mm |
| Weight |
125 kg |
| Accessory | Quantity |
| 3D/4D, PW (Pulsed Wave), CW (Continuous Wave) software | 1pc |
| Convex Probe | 1pc |
| Probe connector ports | 1pc |
| Accessory | Quantity |
| Linear Probe | 1pc |
| Transvaginal Probe | 1pc |
| Micro Convex Probe | 1pc |
| Phased Array Probe | 1pc |
| 4D Volume Probe | 1pc |
| Touch Screen | 1pc |
2D Color Doppler Ultrasound System ZUS-A40 is mostly used in obstetrics, gynecology, cardiology, vascular, abdominal, musculoskeletal, urology, pediatrics, and small parts imaging.
