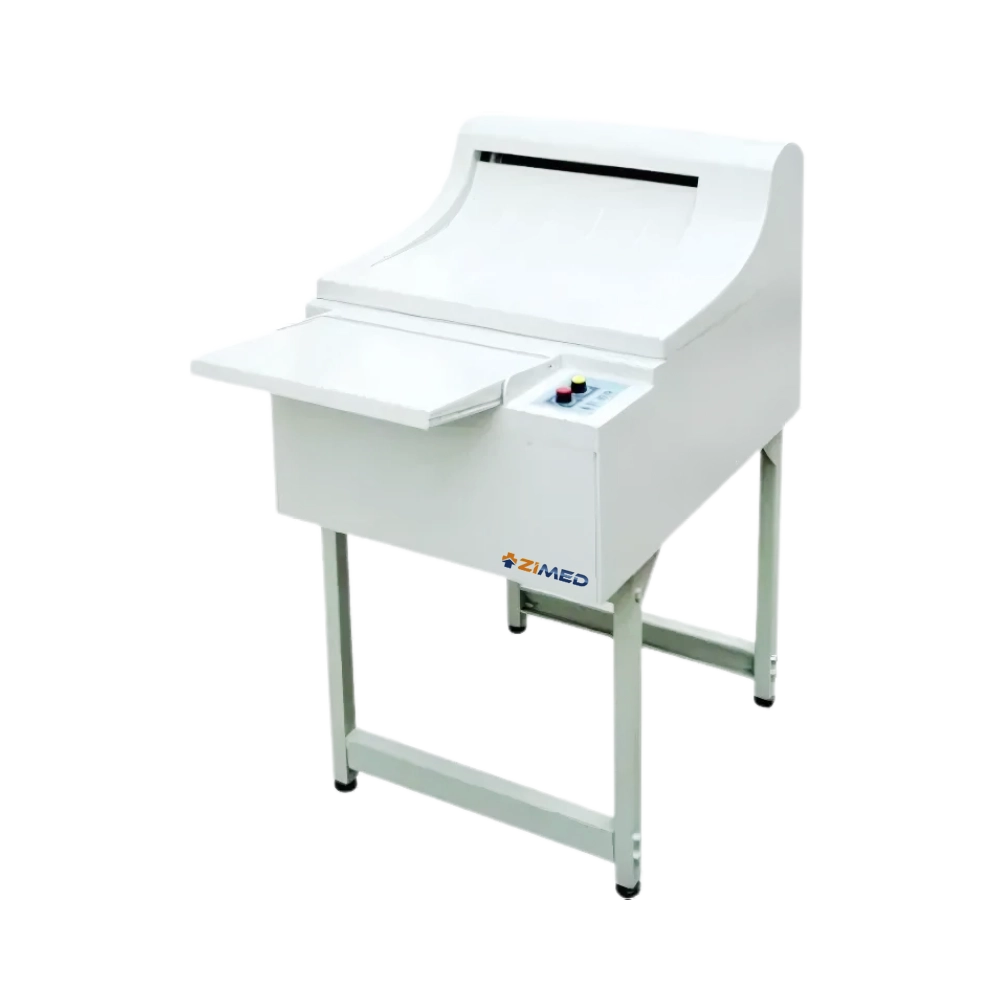

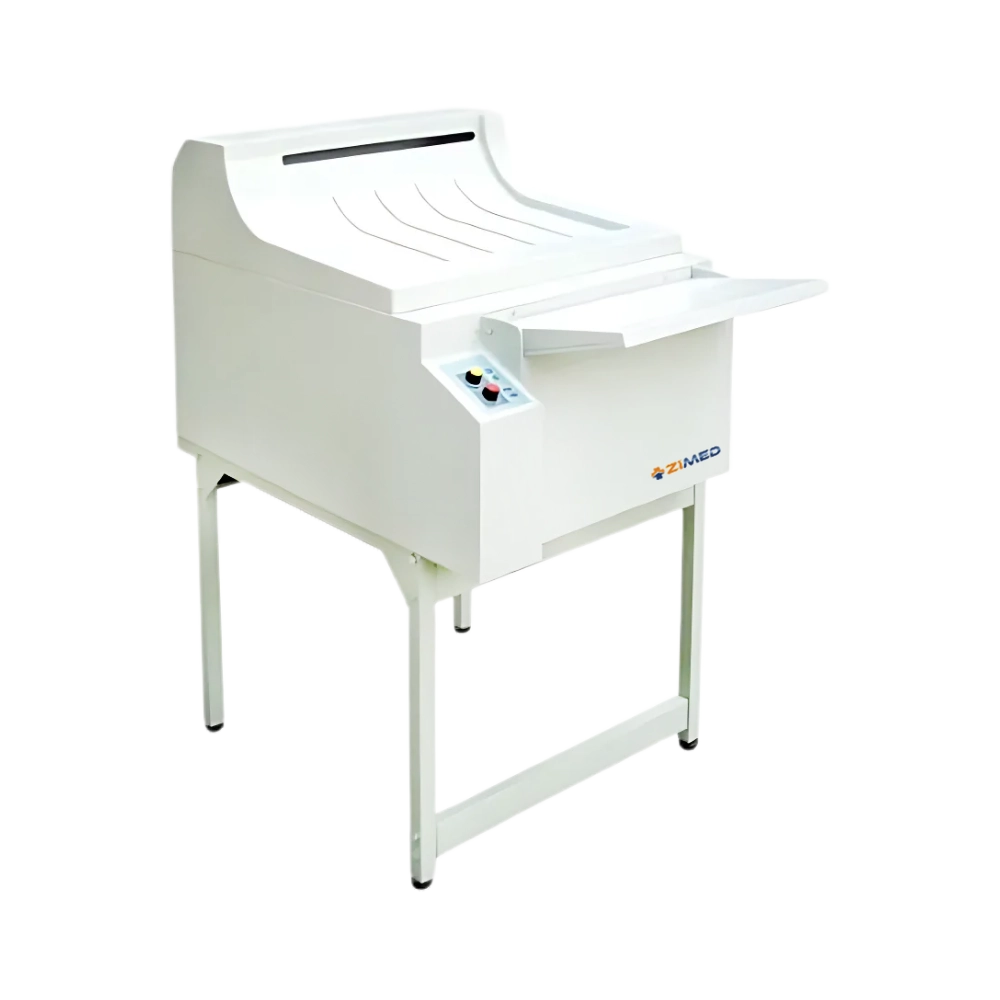

X ray Film processors
Zimed offers automatic X-ray film processor develop good quality visible X-ray image from latent images without human intervention. Medical films are processed with standard processing speed of 90 sec. Assures high quality film processing with low noise level.
-
Specification
| Tank capacity |
6 L |
| Film size |
3 × 6 to 14 × 17 inch |
| Processing speed |
90 to 165 sec |
| Max processing width |
14 inch |
| Adjustable processing time |
25, 35, 45 sec |
| Drying temperature |
40 °C to 60 °C |
| Liquid chemical cooling temp |
20 °C to 40 °C |
| Replenishment system |
Automatic |
| Noise level |
≤ 55 dB |
-
Features
- Automatic X-ray film processing
Film format : X-ray, CT, MRI and other medical films
Adjustment of liquid level cooling temperature
Drying temperature can be adjustable
-
Specification
| Tank capacity |
9 L |
| Film size |
3 × 6 to 14 × 17 inch |
| Processing speed |
90 to 360 sec |
| Max processing width |
17 inch |
| Adjustable processing time |
20 to 90 sec |
| Drying temperature |
40 °C to 80 °C |
| Liquid chemical cooling temp |
20 °C to 40 °C |
| Replenishment system |
Automatic and manual |
| Noise level |
≤ 55 dB |
-
Features
- Automatic X-ray film processing
Film format : X-ray, CT, MRI and other medical films
Adjustment of liquid level cooling temperature
Drying temperature can be adjustable
