Overview

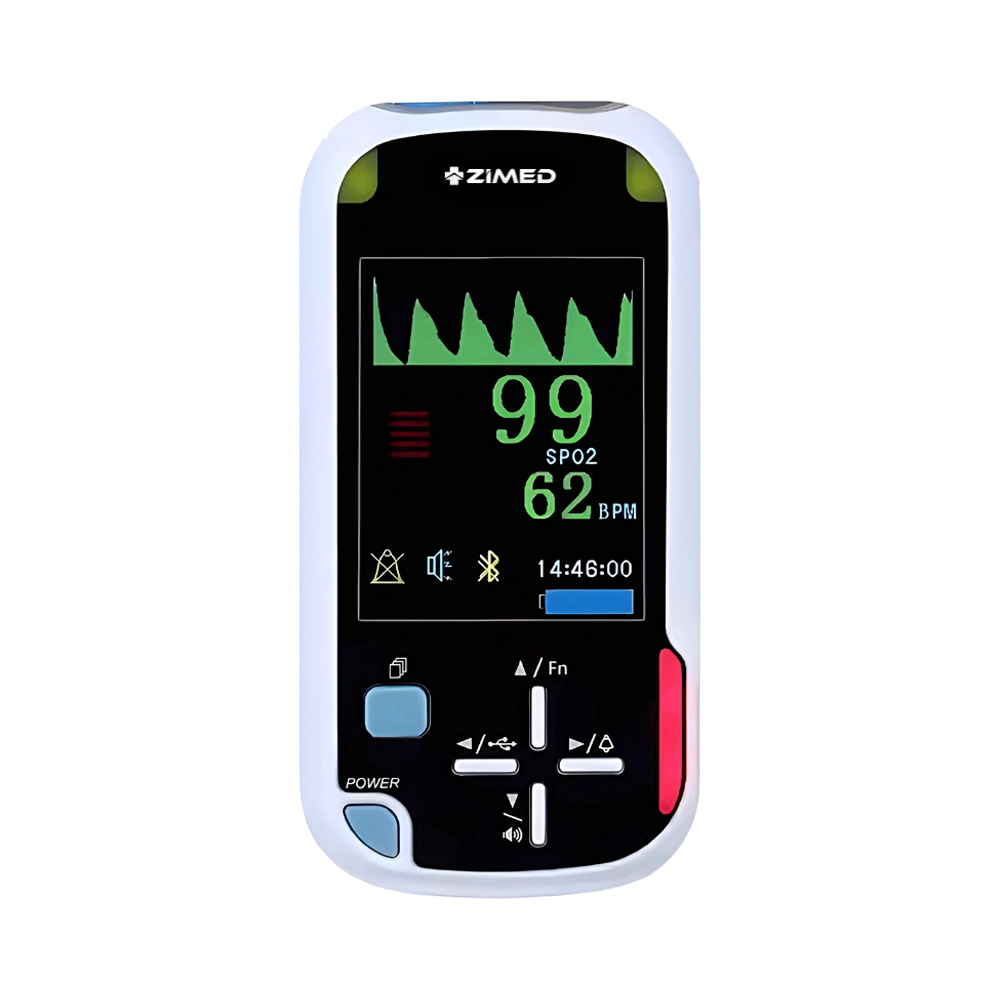

Handheld Pulse Oximeter ZHPO-A12 features a 2.8-inch, 240 × 320 full-color TFT display that provides crisp visualization of data and trends. Its robust data storage system can log up to 3,888 trend groups, with customizable data-saving intervals to suit various monitoring needs. It also includes an integrated temperature sensing module that delivers precise surface temperature readings via a sensitive thermal resistor. This product offers a complete, portable solution for modern vital sign monitoring across medical care settings.
Specifications:
| Display Mode | Dot matrix color TFT LCD Screen<br> Size:2.8-inch<br> Resolutuion: 240 × 320 |
|---|---|
| Storage and Review | Stores data up to 3888 groups |
| Oxygen Saturation (SpO<sub>2</sub>) | Measurement Range: 0 to 100%<br> Accuracy: ±2% (70 to 100%), ±3% (0 to 69%) <br> Resolution: 1% |
| Pulse Rate | Measurement Range: 0 to 250bpm<br> Accuracy: ±2bpm<br> Resolution: 1bpm |
| Temperature (TEMP) | Input: Skin surface thermal-sensitive resistor<br> Measurement Range: 0 to 50°C<br> Accuracy: ±0.2°C<br> Resolution: 0.1°C |
| Alarm | Mode: Audio, Visual<br> Type: Parameters exceeded and sensor-off alarm |
| Operation Environment | Temperature: 0° to 45°C(Working); -20° to 60°C (Transport and Storage) <br> Humidity:15 to 95% (Working) (non-condensing); 10 to 95% (Transport and Storage) (non-condensing) <br> Altitude pressure: 86 to 106 kPa (Working); 50 to 106 kPa (Transport and Storage) |
| Power Requirements | Internal Battery: 3.7V Li-ion rechargeable battery<br> Operating Time: 15 hours<br> Recharge Time: 8 hours<br> AC Adapter Input: AC100 to 240V, 50/60Hz, 5V<br> Output: DC 5V |
| Dimension | 120 × 60 × 28mm |
| Net Weight | 195g |
Features
Multi-parameter Monitoring
Vivid Display Interface
Audio-visual alerts settings
Extensive Data Storage
Long-Lasting Power System
Portable and Lightweight
Real-time data transmission
Applications
Handheld Pulse Oximeter ZHPO-A12 is ideal for use in hospitals, emergency response, outpatient clinics, home healthcare, and telemedicine, delivering precise, real-time monitoring across a wide spectrum of clinical and remote care environments.
