ECG Machines
Zimed offer varied range of ECG machines performing effective diagnosis of heart’s electrical activity. They are fabricated for quick diagnosis, easy operation and time saving performance. Automated wireless ECG machine reduces the problem of cable movement and monitoring critical data of the stress test. Our products are ISO and CE approved and certified.
-
Specification
| Operating mode |
|
| Channels |
Single channel |
| Paper size |
50 mm × 2000 mm |
| Sampling frequency |
800 Hz |
| EMG interference filter |
35 Hz |
| Power frequency filter |
|
| Display |
|
| Heart rate range |
15 bpm to 350 bpm |
| Gain |
2.5, 5.0, 10, 20, 40 mm/mV |
| Frequency response |
0.05 Hz to 150 Hz |
| Resolution |
|
| Dynamic input range |
|
| Input impedance |
≥ 50 MΩ |
| Anti-polarization voltage |
|
| Transmitter power supply (wireless) |
|
| Transmitter dimensions |
|
| Receiver dimensions |
|
| Storage capacity |
|
| Dimensions |
315 × 215 × 77 mm |
| Weight |
1.5 kg |
-
Features
- Single channel
ECG traces printed on 50 mm paper
Maximum paper length 2 meter
Filter enhance signal quality
Power input form: AC/ DC and rechargeable Li-battery
-
Specification
| Operating mode |
|
| Channels |
Single channel |
| Paper size |
50 mm × 2000 mm |
| Sampling frequency |
1000 Hz |
| EMG interference filter |
25 Hz / 45 Hz |
| Power frequency filter |
AC 50 Hz / 60 Hz |
| Display |
|
| Heart rate range |
15 bpm to 350 bpm |
| Gain |
5, 10, 20 mm/mV |
| Frequency response |
0.05 Hz to 150 Hz |
| Resolution |
|
| Dynamic input range |
|
| Input impedance |
≥ 50 MΩ |
| Anti-polarization voltage |
|
| Transmitter power supply (wireless) |
|
| Transmitter dimensions |
|
| Receiver dimensions |
|
| Storage capacity |
|
| Dimensions |
400 × 340 × 220 mm |
| Weight |
4 kg |
-
Features
- Single channel
ECG traces printed on 50 mm paper
Maximum paper length 2 meter
Filter enhance signal quality
Power input form: AC/ DC and rechargeable Li-battery
-
Specification
| Operating mode |
|
| Channels |
3 channel |
| Paper size |
80 mm × 2000 mm |
| Sampling frequency |
1000 Hz |
| EMG interference filter |
25 Hz / 35 Hz |
| Power frequency filter |
|
| Display |
|
| Heart rate range |
|
| Gain |
2.5, 5.0, 10, 20, 40 mm/mV |
| Frequency response |
|
| Resolution |
|
| Dynamic input range |
|
| Input impedance |
≥ 50 MΩ |
| Anti-polarization voltage |
|
| Transmitter power supply (wireless) |
|
| Transmitter dimensions |
|
| Receiver dimensions |
|
| Storage capacity |
|
| Dimensions |
315 × 215 × 77 mm |
| Weight |
1.6 kg |
-
Features
- 3 channel ECG machine
Color LCD display to view the parameter
ECG traces printed on 80 mm paper
Maximum paper length 2 meter
Filter enhance signal quality
Input power form: AC/ DC, rechargeable Li battery
-
Specification
| Operating mode |
|
| Channels |
3 channel |
| Paper size |
80 mm × 2000 mm |
| Sampling frequency |
1000 Hz |
| EMG interference filter |
25 Hz / 45 Hz |
| Power frequency filter |
AC 50 Hz / 60 Hz |
| Display |
|
| Heart rate range |
|
| Gain |
5, 10, 20 mm/mV |
| Frequency response |
|
| Resolution |
|
| Dynamic input range |
|
| Input impedance |
≥ 50 MΩ |
| Anti-polarization voltage |
|
| Transmitter power supply (wireless) |
|
| Transmitter dimensions |
|
| Receiver dimensions |
|
| Storage capacity |
|
| Dimensions |
400 × 340 × 220 mm |
| Weight |
4 kg |
-
Features
- 3 channel ECG machine
Color LCD display to view the parameter
ECG traces printed on 80 mm paper
Maximum paper length 2 meter
Filter enhance signal quality
Input power form: AC/ DC, rechargeable Li battery
-

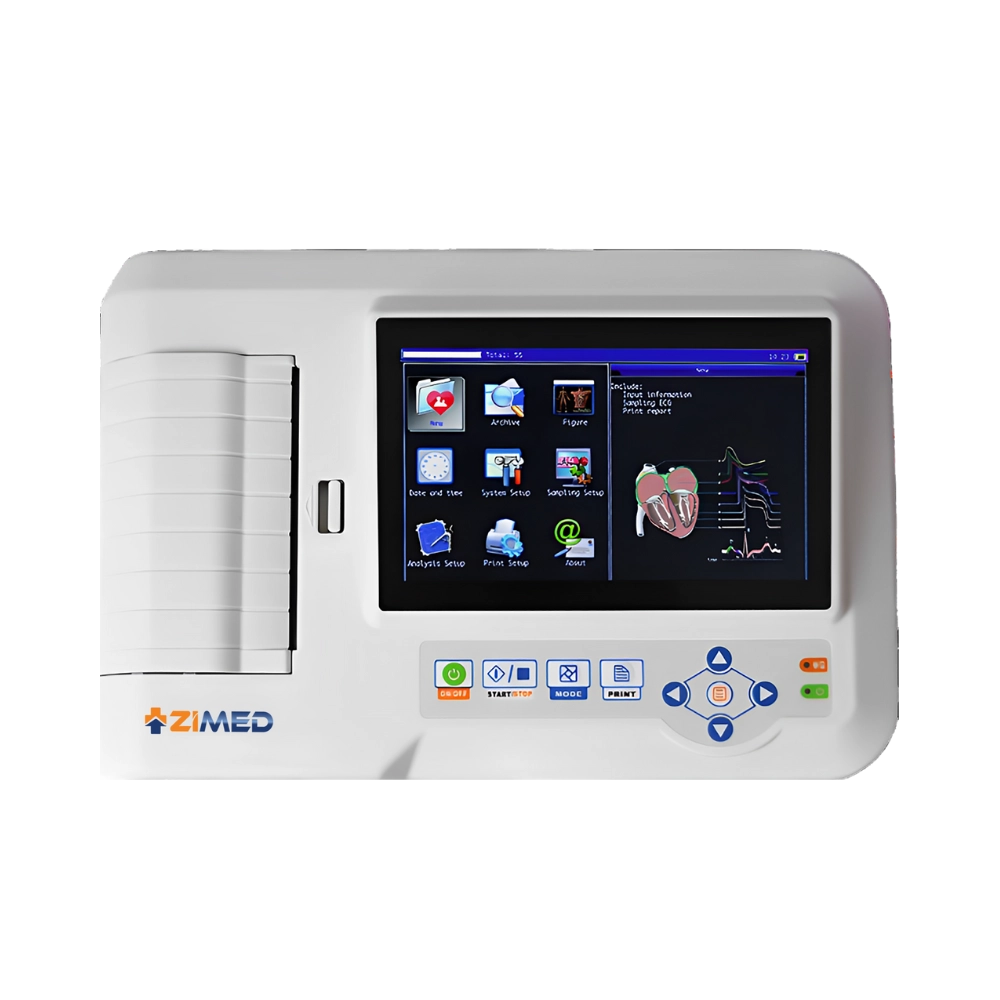

Specification
| Operating mode |
Manual/ automatic |
| Channels |
6 channel |
| Paper size |
80 mm |
| Sampling frequency |
1000 Hz |
| EMG interference filter |
25 Hz / 35 Hz |
| Power frequency filter |
AC 50 Hz / 60 Hz |
| Display |
8 inch LCD ( TFT ) |
| Heart rate range |
|
| Gain |
|
| Frequency response |
|
| Resolution |
|
| Dynamic input range |
|
| Input impedance |
|
| Anti-polarization voltage |
|
| Transmitter power supply (wireless) |
|
| Transmitter dimensions |
|
| Receiver dimensions |
|
| Storage capacity |
>1000 patient files |
| Dimensions |
315 × 215 × 92 mm |
| Weight |
1.7 kg |
-
Features
- 6 channel electro cardiograph
12 lead ECG signals
Manual or automatic examination
ECG traces printed on 80 mm paper (8 dot/ mm)
Printing speed : 5, 6.25, 10, 12.5, 25 mm/s
Touch screen LCD display
Real time monitoring of waveform and parameter setting
Storage capacity up to 1000 patients data (customization for 250 patients )
Adopts digital signal processing via AC / baseline / EMG filter for high quality ECG waveforms
-

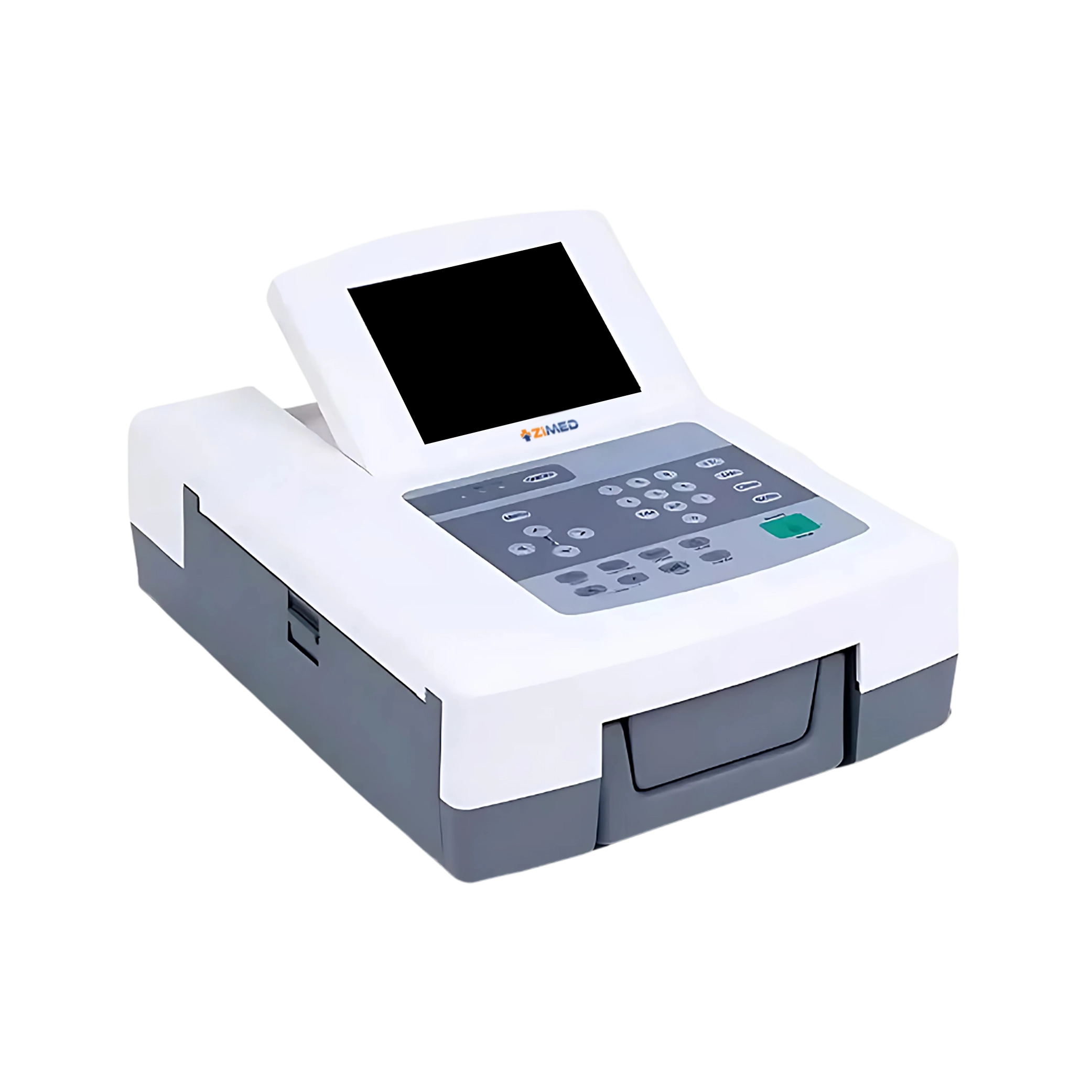

Specification
| Operating mode |
Automatic |
| Channels |
12 channel |
| Paper size |
210 mm |
| Sampling frequency |
1000 Hz |
| EMG interference filter |
25 Hz / 35 Hz |
| Power frequency filter |
AC 50 Hz / 60 Hz |
| Display |
8 inch LCD ( TFT ) |
| Heart rate range |
|
| Gain |
|
| Frequency response |
|
| Resolution |
|
| Dynamic input range |
|
| Input impedance |
|
| Anti-polarization voltage |
|
| Transmitter power supply (wireless) |
|
| Transmitter dimensions |
|
| Receiver dimensions |
|
| Storage capacity |
>1000 patient files |
| Dimensions |
340 × 320 × 85 mm |
| Weight |
3.2 kg |
-
Features
- 12 channel ECG
12 lead ECG signals
Automatic examination and diagnosis of routine ECG parameter
8 inch LCD touch screen display
Alphabetic keyboard input
ECG traces printed on 210 mm paper
Paper speed : 5, 6.25, 10, 12.5, 25 mm/s
Storage up to 1000 patients data
Adopt digital signal processing via AC filter, baseline filter and EMG filter to get high quality ECG waveforms
Power supply : AC/ DC or rechargeable Li battery
-
Specification
| Operating mode |
|
| Channels |
|
| Paper size |
|
| Sampling frequency |
1000 Hz |
| EMG interference filter |
35 Hz |
| Power frequency filter |
AC 50 Hz / 60 Hz |
| Display |
|
| Heart rate range |
30 bpm to 300 bpm |
| Gain |
5, 10, 20 mm/mV |
| Frequency response |
0.05 Hz to 150 Hz |
| Resolution |
12 bit |
| Dynamic input range |
± 3 mV |
| Input impedance |
≥ 50 MΩ |
| Anti-polarization voltage |
± 500 mV |
| Transmitter power supply (wireless) |
5 V (DC) |
| Transmitter dimensions |
92 × 63 × 28 mm |
| Receiver dimensions |
149 × 79 × 21 mm |
| Storage capacity |
|
| Dimensions |
|
| Weight |
|
-
Features
- Single piece wireless transmitter and receiver
Tredmill (for monitoring electrical activity of the heart)
12 lead ECG data
Auto comparison of continuous ST trends with reference complexes
Flexible configuration, user friendly interface
Trend graphs display and print
Filter added reduces noise and ECG signal base line
