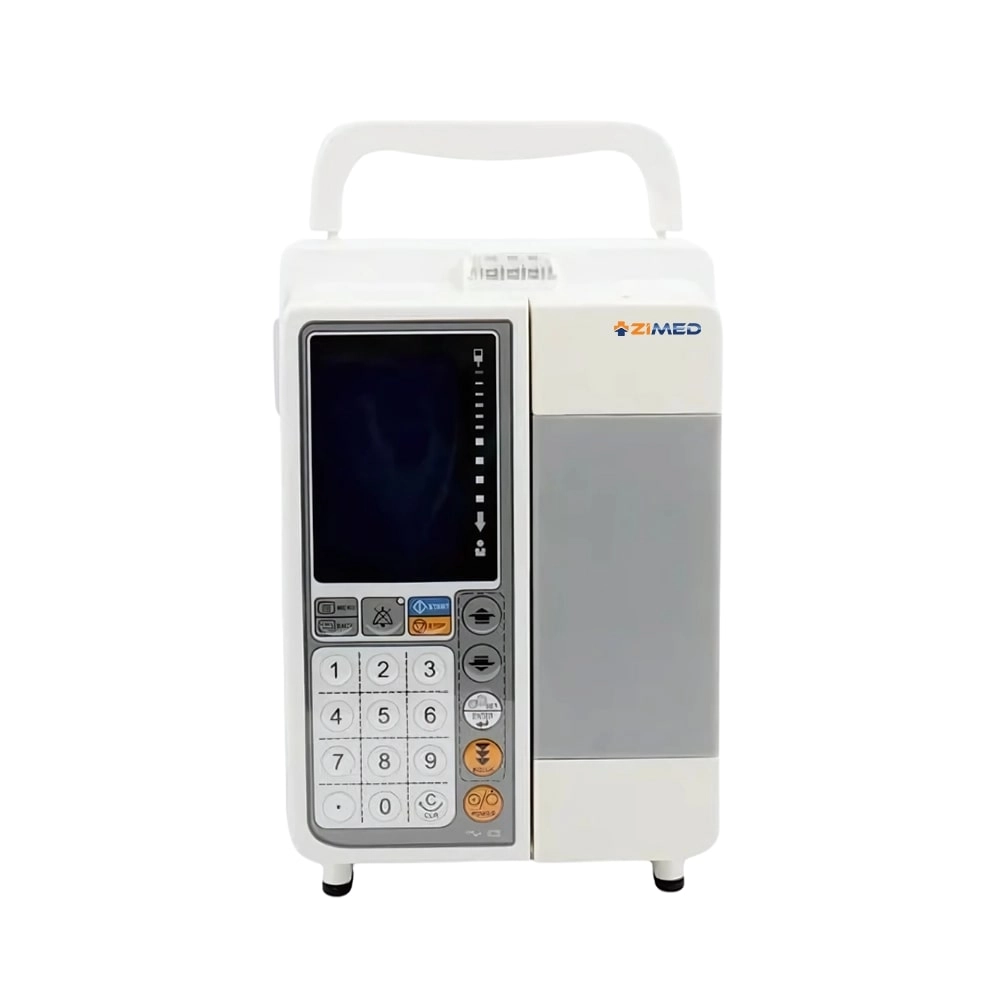

Infusion Pump ZIP-A11 is used to deliver fluid to a patient’s circulatory system in a controlled manner. This is equipped with peristaltic pump for pulsation and LCD monochromatic display to monitor operational parameter. Incorporation of alarm systems for parameter failure alerts.
| Mode | Flow rate, time amount, drop rate, body weight |
| Flow rate range | 1 to 1200 ml/hr. |
| VTBI (Volume to be infused ) | 0 to 9999.9 ml |
| Drop rate change | 1 to 333 drops/min |
| Preset volume | 0.1 to 9999.9 ml |
| KVO (keep vein open) rate | 1 to 5 ml/hr. |
| Bolus rate | 50 to 800 ml/hr. |
| Purge rate | 600ml/hr. |
| Power supply | 100 / 240 V AC (50 / 60 Hz) |
| Air pressure | 70 kPa to 106 kPa |
| Display | LCD |
| Dimension | 130 × 206 × 118 mm |
Low pulsation rate delivering uniform drops
Multimode options bring flexible operation
Peristaltic pump with precised flow rate
Accurate and safer pulsation
Alarm system for parameter failure alert
Used to deliver meditation such as insulin, Harmons, antibiotics. Used at hospitals ICU, CCU.
Frequently Asked Question
This infusion pump offers versatile infusion modes to meet different clinical requirements: Flow Rate Mode: Infuses fluids at a continuous and set flow rate. Time Mode: Infuses a specified volume over a selected time period. Drop Rate Mode: Allows control based on drops per minute, useful when using drip sets. Body Weight Mode: Calculates the infusion rate based on the patient’s body weight, often used for pediatric or weight-sensitive medications. These modes offer flexibility in various settings, including surgery, the ICU, pediatrics, and home care.
The infusion pump supports a flow rate range of 1 to 1200 ml/hr. You can adjust the flow rate using the interface controls (buttons or touchscreen depending on the model). This allows precise medication delivery—slower for continuous therapy or faster for fluid resuscitation.
Preset Volume (range: 0.1 to 9999.9 ml) refers to a user-defined volume the pump will aim to deliver. It is typically used alongside VTBI but can act independently for monitoring purposes. It allows caregivers to plan and automate dosing over time.
The KVO rate, adjustable between 1 and 5 ml/hr, is activated automatically once the set VTBI has been infused. It maintains vein patency by continuing to infuse at a low rate, ensuring the IV line stays open and accessible for future administration.
Yes. It can operate safely in air pressure ranges from 70 to 106 kPa, which covers altitudes from sea level to approximately 3,000 meters (about 9,800 feet). This makes it suitable for most clinical and transport environments.
Infusion pumps can deliver antibiotics, chemotherapy, insulin, pain medications, and more, depending on the patient's treatment needs.
Yes, when used correctly. They include safety features like alarms, occlusion sensors, and automatic shutoff to prevent dosing errors.
Yes. Syringe pumps and specialized pediatric settings are used for precise, low-volume delivery, making them suitable for infants and children.
Alarms indicate issues like occlusion, empty reservoir, air in line, or battery low. Follow your facility’s protocol to resolve the issue safely.
Yes. Regular maintenance and calibration are essential to ensure accurate delivery and meet safety standards.
Yes, most pumps are reusable with proper cleaning, disinfection, and maintenance between uses. Some components, like tubing, may be disposable.
