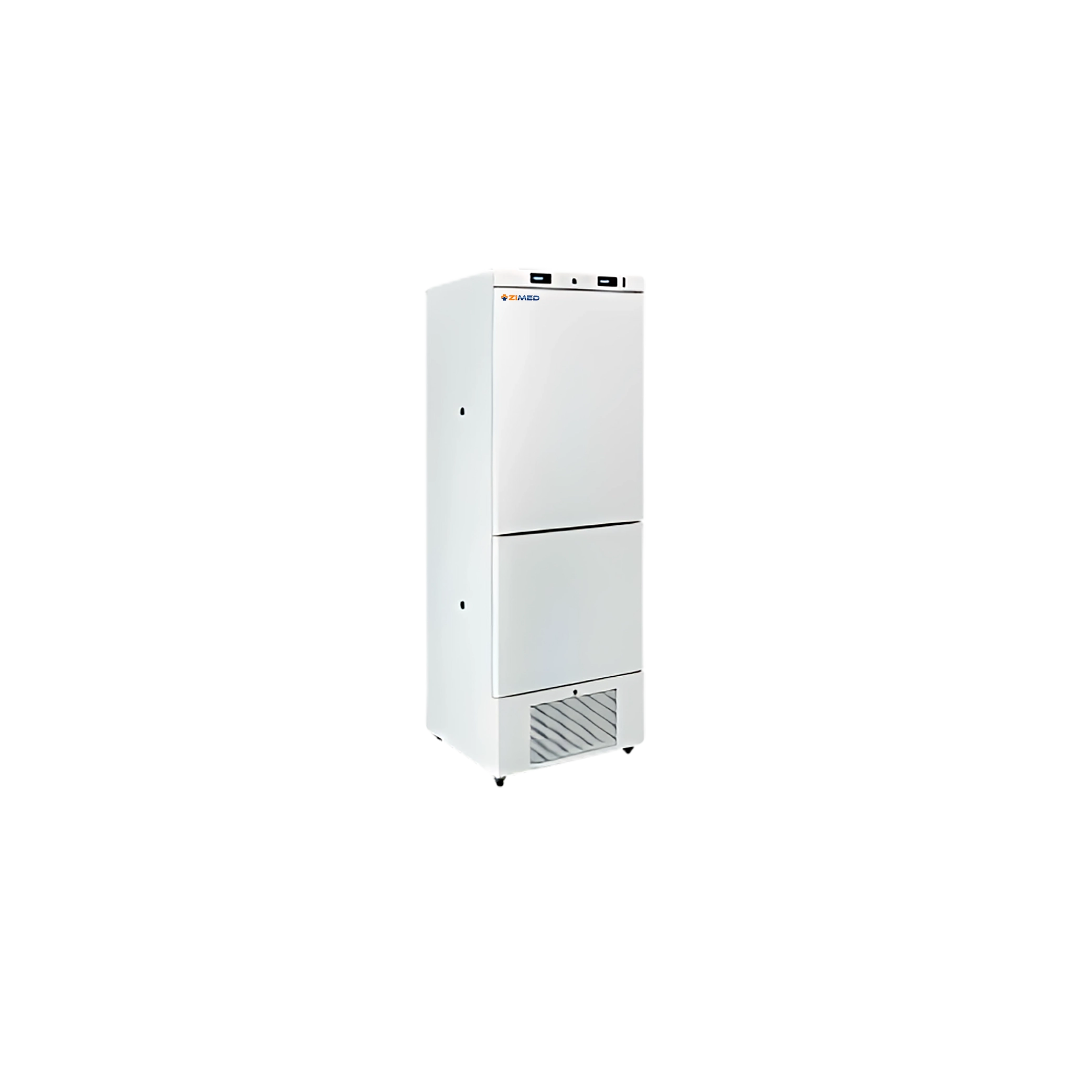

Medical Refrigerator ZRF-A10 belongs to the ST climate class and maintains a temperature range of 2°C to 8°C. It is equipped with inner LED lights for clear visibility of stored items. Includes a safety door lock mechanism to prevent unauthorized access. Our system utilizes a highly efficient compressor and fan for superior refrigeration performance. It features buzzer, digital flashing, and remote alarm options for comprehensive notifications. Incorporates an LCD screen for convenient monitoring of settings and operational status.
| Cabinet Type | Vertical |
| Climate Class | ST |
| Refrigerator Capacity | 200L |
| Refrigerator Temperature Range | 2°C to 8°C |
| Refrigerator Cooling Type | Forced Air Cooling |
| Refrigerator Defrost Mode | Auto Defrost |
| Refrigerator Cooling Performance | +4°C |
| Freezer Capacity | 100L |
| Freezer Temperature Range | -10°C to -25°C |
| Freezer Cooling Type | Direct Cooling |
| Freezer Defrost Mode | Manual Defrost |
| Freezer Cooling Performance | -25°C |
| Temperature Increment | 0.1°C |
| Refrigerant | HC, R600a |
| Material | Galvanized steel powder coating (white) |
| Display | LCD |
| Alarming Mode | Sound and light alarm |
| Controller Functions | Remote Alarm Terminal High/Low-Temperature Alarm Power Failure Alarm Door Open Alarm Lockage Inner LED light |
| Compressor | Two Inverter Compressors |
| Voltage | 192V to 242V |
| Power Consumption | 340 W |
| Power Supply | 220V/50Hz |
| Refrigerator Interior Dimensions (W×D×H) | 500 × 460 × 730 mm |
| Freezer Interior Dimensions (W×D×H) | 500 × 460 × 445 mm |
| Exterior Dimensions (W×D×H) | 600 × 606 × 1776 mm |
| Packing Dimensions (W×D×H) | 660 × 660 × 1840 mm |
| Net Weight | 88.5 kg |
| Gross Weight | 100 kg |
Microprocessor controller
Over-temperature alarm system
No condensation glass or solid door
Adjustable shelf design
Power on delay function
Castors Test holes Refrigerator shelves ×3 Freezer shelves ×2
Medical Refrigerator is used in hospitals, blood banks, and research institutes, ideal for storing pharmaceuticals, vaccines, testing reagents and biological materials essential for epidemic prevention in animal husbandry areas.
Frequently Asked Question
The refrigerator is powered by two inverter compressors, which provide: Energy efficiency, Low noise operation, Precise temperature control, and Independent cooling for fridge and freezer sections.
The body is made of galvanized steel with a white powder coating, providing: High resistance to corrosion, Easy-to-clean surfaces, and Long-lasting durability in clinical environments.
The unit utilizes HC (Hydrocarbon) refrigerant, R600a, which is: Environmentally friendly (low global warming potential), Energy-efficient and Commonly used in modern medical refrigeration systems.
Yes. The temperature range (+2°C to +8°C) and advanced alarm functions make it ideal for storing vaccines, in line with WHO and CDC recommendations.
The refrigerator compartment employs a forced air cooling system for uniform temperature distribution and faster recovery after door openings. The freezer compartment uses direct cooling, which is efficient for maintaining low temperatures in enclosed spaces.
Most medical refrigerators are designed to maintain a temperature range between 2°C and 8°C (35.6°F to 46.4°F), depending on the application.
No. Medical refrigerators are intended exclusively for medical or scientific use. Storing food or drink can lead to contamination and compromise the integrity of stored medical items.
Yes. Vaccine refrigerators are a type of medical refrigerator optimized specifically for vaccine storage, often with features like microprocessor control, tighter temperature uniformity, and CDC-compliant designs.
Yes. Regulatory agencies often require twice-daily temperature logging and data retention. Many modern units include built-in digital loggers for easier compliance.
Yes. Regular calibration ensures accurate temperature control and compliance with regulatory standards. Frequency depends on your facility’s guidelines or local regulations.
