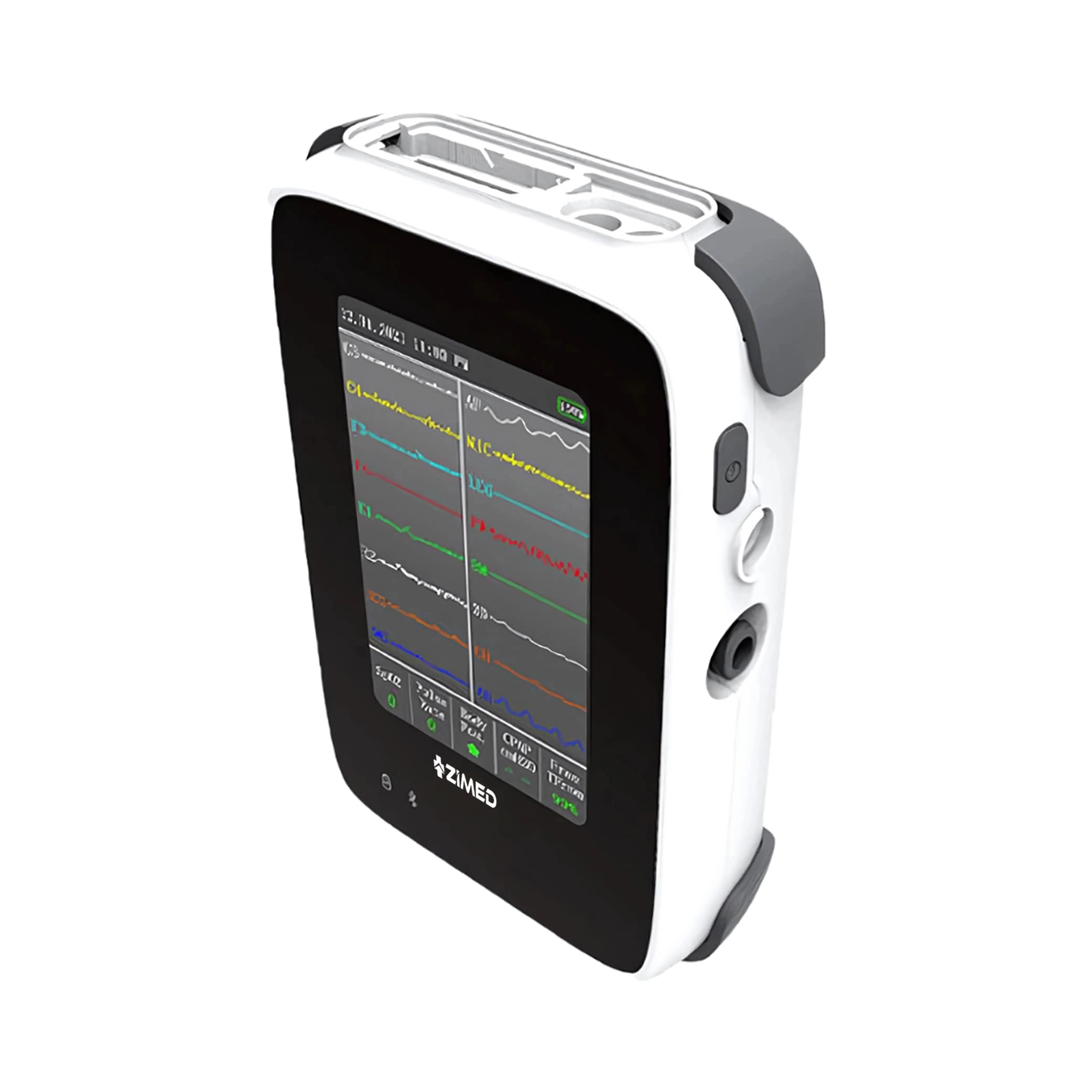

Sleep Apnea Monitor ZSAM-A16 offers an advanced high-precision 3D Gyroscope. It detects supine, prone, left, right, and upright sleep positions for better diagnostic accuracy. It also offers an AI-powered automatic sleep staging for deep learning to classify sleep stages and detect abnormalities with high precision. Our device assesses CPAP therapy effectiveness, helping optimize treatment for sleep apnea patients. It helps individuals, sleep specialists, and healthcare professionals diagnose sleep apnea.
| Monitored Parameters | Airflow, snore, SpO2, pulse rate, PPG, body position, body movement, thoracic/abdominal movement, CPAP titration |
| Sleep Staging | AI-powered automatic sleep stage classification |
| Display | 2.8-inch TFT screen, 320 x 240 pixels |
| Battery Life | 4000mAh rechargeable lithium battery (40+ hours of continuous use) |
| Body Position Tracking | Supine, prone, right side, left side, upright (via high-precision 3D gyroscope) |
| SpO2 Accuracy | 80% to 100%: ±2%, 70%-79%: ±3% |
| Pulse Rate Range | 30 to 240 bpm |
| Data Storage | 16GB SD card |
| Sampling Rate | 50-250Hz |
| Data Resolution | 12-bit ADC (0 to 4095) |
| Automatic Recording | Set start and end time for auto-recording |
| Power Supply | Input: 100-240V~, 50/60Hz, 0.5A Max. |
| Output | 5.0V 2.0A |
| Carton Dimensions | 27cm x 17.5cm x 19.5cm |
| Device Dimensions | 12.5cm x 8cm x 2.4cm |
| Device Weight | 190g (with battery) |
| Gross Weight | 2Kg |
AI-powered automatic sleep staging
Comprehensive sleep monitoring
Real-time data display
Advanced high-precision 3D gyroscope
Professional sleep analysis software
CPAP titration support
Probe
SD card
SD reader
fixing belt
adapter
luer connector
Sleep Apnea Monitor ZSAM-A16 is designed for accurate, real-time sleep analysis, helping individuals, sleep specialists, and healthcare professionals diagnose sleep apnea, monitor CPAP therapy effectiveness, and assess vital sleep parameters such as airflow, SpO2, pulse rate, body position, and movement with AI-powered precision.
Frequently Asked Question
A Sleep Apnea Monitor is a medical device used to detect and record breathing irregularities, oxygen levels, and other vital signs during sleep to help diagnose sleep apnea.
Yes, many models are designed for easy and comfortable use at home, providing reliable data for your healthcare provider.
Some sleep apnea monitors may require a prescription, depending on your country’s regulations and the device classification.
Most devices are suitable for adults. For children or specific cases, please consult your healthcare provider.
Data is typically stored in the device or transmitted via Bluetooth/Wi-Fi to a mobile app or software for analysis.
It’s recommended to use the device for the entire sleep period (typically 6–8 hours) to ensure accurate and comprehensive data collection.
Absolutely. Most sleep apnea monitors are compact and portable, making them ideal for travel.
