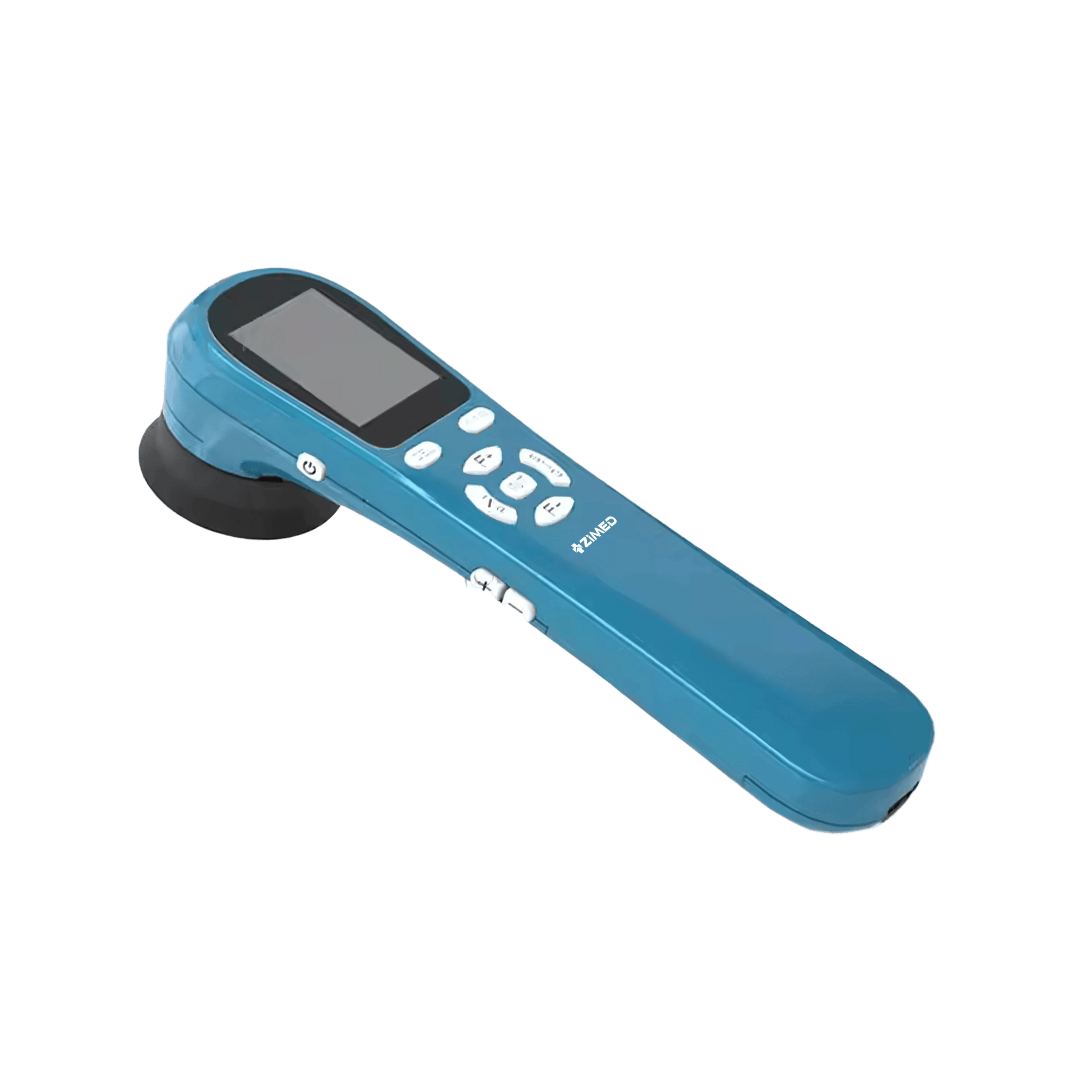

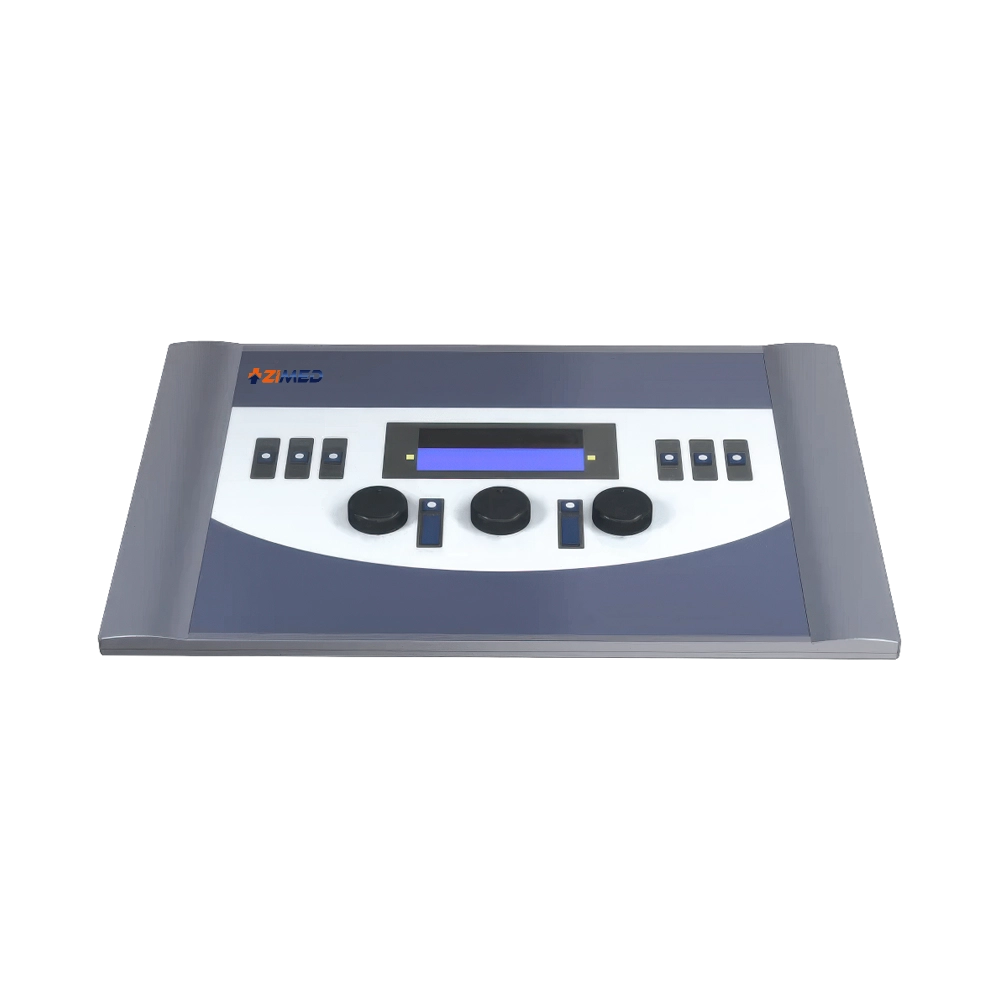

Zimed Audiometers are a new generation of auditory diagnostic equipment used to test the hearing efficiency of patients. They offer an expansive testing frequency range and finely calibrated intensity levels, enabling accurate detection of subtle auditory impairments. They seamlessly integrate with high-performance transducers, including insert earphones, supra-aural headphones, and bone vibrators, ensuring an accurate testing experience. Our products feature a compact and ergonomic design that enhances portability without compromising performance.
Air Conduction Frequency: 125 to 8000 Hz
Air Conduction Hearing Level: -10 to 110 dB
Frequency Error: ±2%
Display: LCD display, double-line accurate numerical display
Test Intensity Range:
Air conduction: -10 to 120 dB
Bone conduction: -10 to 70 dB
Microphone: Built-in microphone; adjustable strength (0 to 50) for communication with tester
Channels: Two independent output channels
Frequency:
Air conduction: 125 to 8000Hz
Bone conduction: 250 to 6000Hz
Error: ±2%
Test Frequency:
Air conduction 250 to 8000 Hz
allowable error ±2%
Hearing Level: Air conduction: 10 to 110 dB
Warble Tones Modulation: 5 Hz Sine Wave
Display Screen: 2.4inch TFT LCD display
Frequently Asked Question
Frequency Range: 125 Hz – 12,000 Hz (1/6 octave steps) Intensity Range: -10 dB HL to 120 dB HL (1 dB steps) Accuracy: ±1 dB (ANSI S3.6-2018 compliant)
Insert Earphones: ER-3A compliant (for air conduction) Supra-aural Headphones: TDH-39/49 (with cushion replacements) Bone Vibrator: B71 (mastoid placement) Free Field Speakers: For sound field testing
Automatic Transducer Calibration: Built-in daily biological calibration check Real-Time Monitoring: Detects transducer placement errors Ambient Noise Compensation: Adaptive masking based on environmental noise
Pure-Tone Audiometry (PTA): Air & bone conduction Speech Audiometry: SRT, SDS, MCL testing High-Frequency Audiometry (HFA): Up to 16 kHz (optional) Tympanometry Integration: With compatible middle ear analyzer
Dimensions: 30 × 25 × 10 cm Weight: 3.2 kg (with battery) Battery Life: 8+ hours (fast-charging in 2 hours) IP Rating: IP42 (dust & splash resistant)
Internal Storage: 5,000+ patient records Export Formats: PDF, CSV, HL7 (EMR integration) Connectivity: USB-C, Bluetooth 5.2, Wi-Fi 6
Daily: Biological listening check Monthly: Electroacoustic verification Annual: Full calibration (certified lab required)
Visual Reinforcement Audiometry (VRA) mode Conditioned Play Audiometry (CPA) mode Child-friendly interface with touchscreen
