Overview

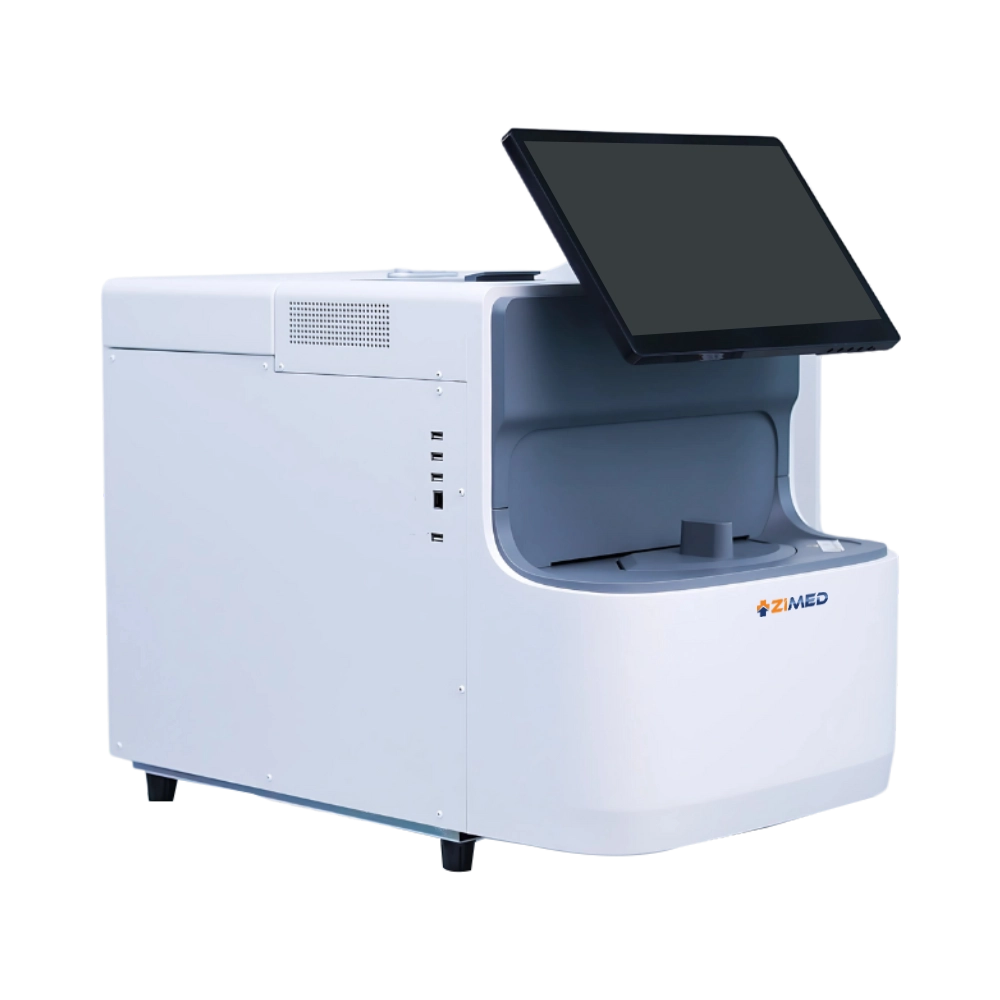

Chemiluminescence Immunoassay Analyzer ZCIA-A10 processes an impressive 180 samples per hour. Its temperature accuracy is within ±0.3°C of the set value (37°C), and fluctuation is less than 0.2°C. It handles human serum and plasma samples seamlessly. Each reaction cup is disposable, ensuring both convenience and hygiene. Our analyzer guarantees stability with a relative bias of ±10% between results at the 4th and 8th hour, ensuring consistency in your testing outcomes throughout the day.
Specifications:
| Throughput | 180 items/hour (max) |
|---|---|
| Sample Type | Human serum and plasma samples |
| Automation | Full-automatic |
| Temperature Accuracy | ±0.3°C of set value (37°C),<br> fluctuation < 0.2°C |
| Reagent Refrigeration | 2℃ to 8℃, 24-hour uninterrupted refrigeration |
| Intra-batch Repeatability | ≤8% (CV, %) |
| Analyzer Stability | Relative bias ≤ ±10% between 4th and 8th hour |
| Carryover Rate | ≤10⁻⁵ |
| Linear Correlation | r ≥ 0.99 (within 2 orders of magnitude) |
| Sampling Accuracy | ±5% for 10ul sampling, ±3% for 200ul sampling |
| Storage Conditions | Temperature: 0℃ to 55℃,<br> Humidity ≤93% |
| Ambient Temperature | 10℃ to 30℃ |
| Relative Humidity | ≤85%, no condensation |
| Atmospheric Pressure | 70.0kPa to 06.0kPa |
| Altitude | ≤3000m |
| Software Environment | Linux 4.1 and above |
| Networking Support | USB2.0, Ethernet RJ45, HL7 protocol support |
| Memory and Storage | 2GB memory, 8GB or more storage |
| Fuse | F6.3L250V |
| Input Power | 850VA |
| Power Voltage | 100V to 240V~, 50Hz/60Hz |
| Packaging Dimensions | 900 x 630 x 1300 mm |
| Dimensions | 430 × 680 × 640 mm |
| Weight | 62 kg |
| Gross Weight | 115 kg |
Features
Unmatched automation
Designed for precision
Robust sample management
Exceptional stability
Top-notch refrigeration system
High sampling accuracy
Compact yet powerful
Modern interface and connectivity
Applications
The Chemiluminescence Immunoassay Analyzer ZCIA-A10 is designed for high-throughput, fully automated immunoassay testing in clinical laboratories, enabling precise and rapid detection of biomarkers in human serum and plasma for disease diagnosis, hormone analysis, infectious disease screening, and therapeutic monitoring.
