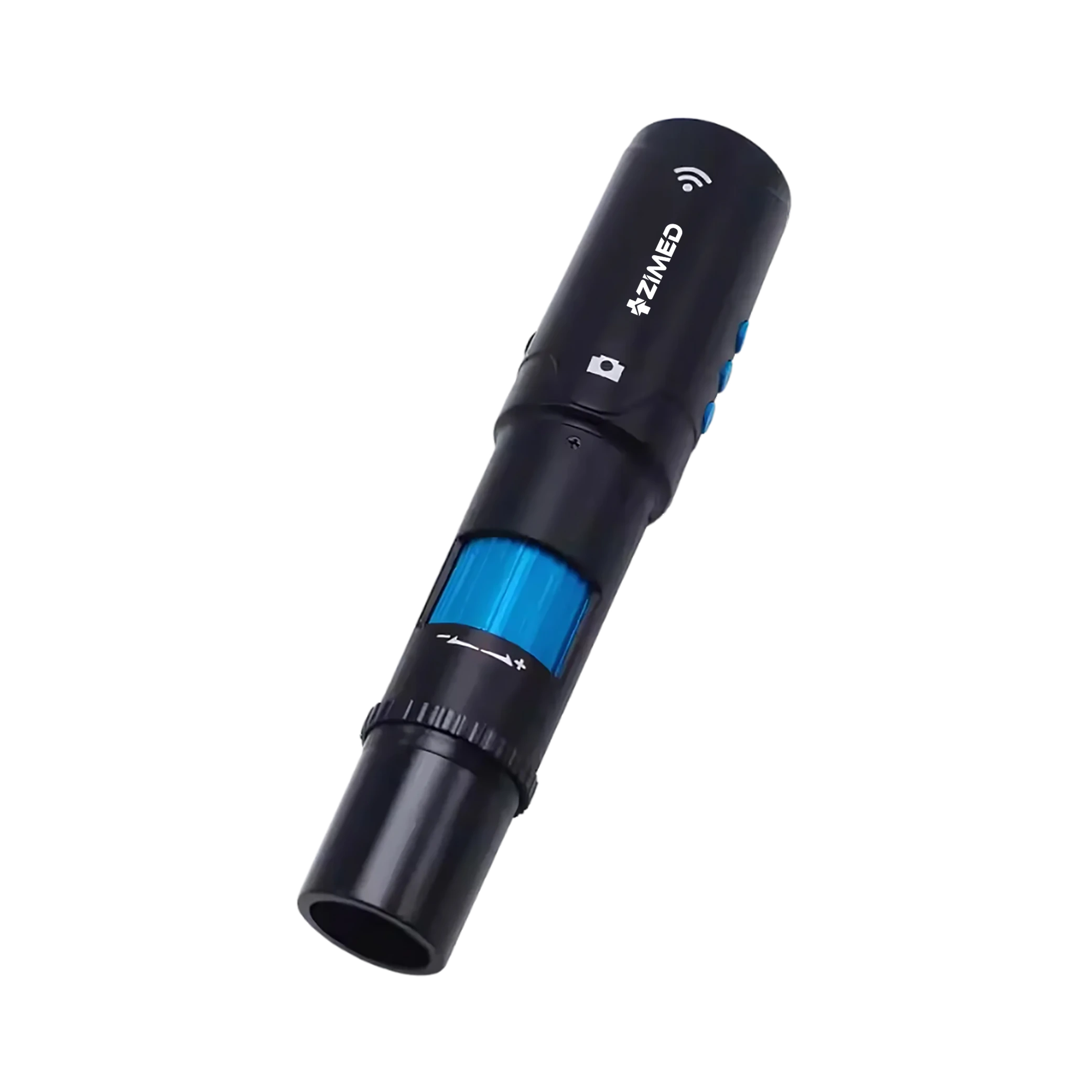

Digital Dermatoscope ZDD-A10 features a high-resolution 2MP CMOS sensor, delivering crystal-clear imaging at maximum frame rate. The device supports 10x to 200x magnification, allowing for highly detailed visualization of skin texture, lesions, and pigmentation. Integrated controls include a capture trigger, recording button, and digital zoom for smooth, uninterrupted operation. It offers high-resolution visualization, real-time data capture, and cross-platform connectivity in a compact, portable device.
| Sensor resolution |
2M pixels (1920 × 1088) |
| Magnification |
10x to 200x |
| Max. frame |
25fps at 2MP |
| Light source |
Dimmable LED ring illuminator (6pcs SMT white + 6pcs SMT UV 850nm LED) |
| Operating system |
iOS 12.0 or later, Android 4.2 or later |
| Capturing by camera |
Yes, Capture microtouch trigger on the camera |
| Recording by camera |
Yes, recording button on camera |
| Digital zoom on camera |
Yes, Digital zoom button on camera |
| Connection type |
Wifi to smart device/ USB 2.0 to computer |
| Battery |
18650 Lithium-Ion Battery (2000mAh Rechargeable |
| Battery working time |
Continue working for 3 hours |
| Charging time |
2.5hrs (when Wifi digital microscope power off) |
| Dimension |
166 × 45 × 40 mm |
| Weight |
650g |
| Accessory | Quantity |
| USB Cable | 1pc |
| Battery | 1pc |
| Calibration Ruler | 1pc |
| Base | 1pc |
| USB Driver | 1pc |
Digital Dermatoscope ZDD-A10 is ideal for high resolution assessment of pigmented lesions for early melanoma detection, detailed vascular and skin texture analysis, non-invasive evaluation of inflammatory conditions like acne and rosacea, trichological diagnostics.
