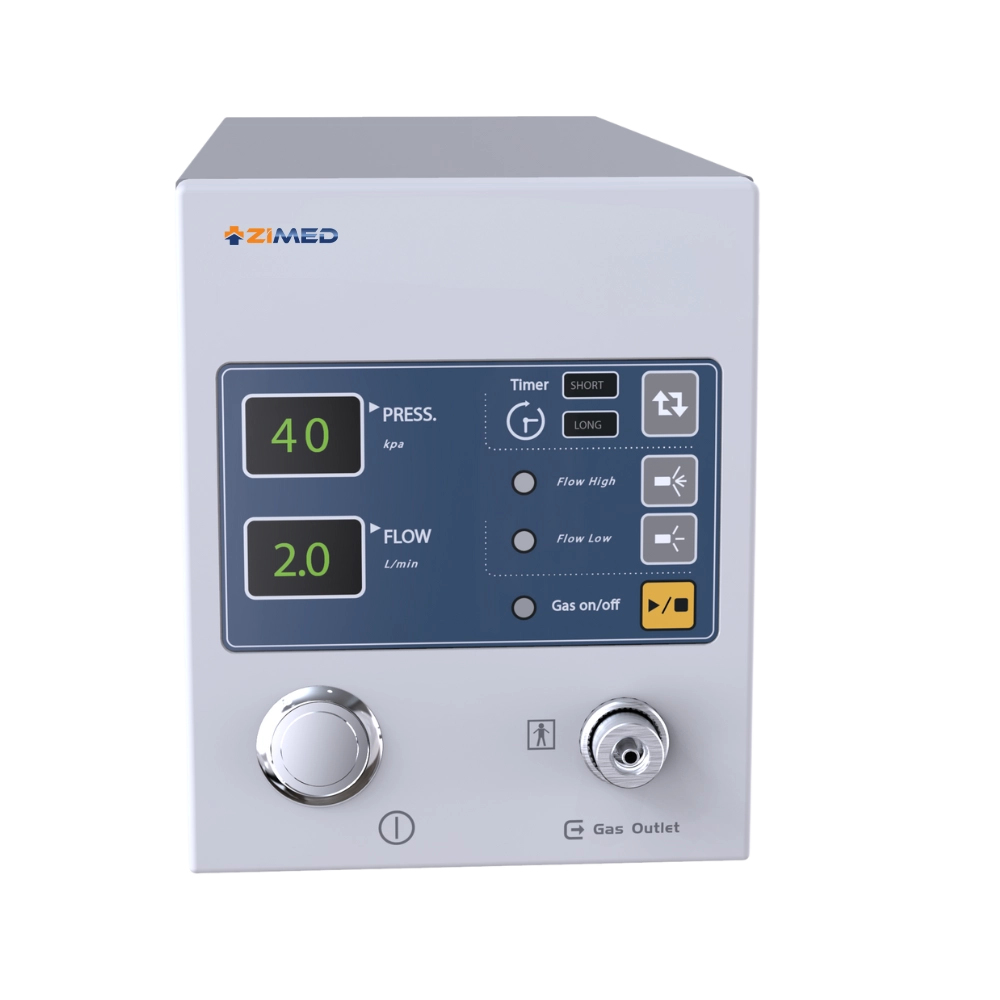

Endoscopic Insufflator ZEI-A10 with an input pressure range of 0.10 MPa to 0.60 MPa is designed for modern medical procedures. It allows precise control with adjustable 3-level flow rate and real-time pressure monitoring. Safety is enhanced with an alarm feature, preventing risks from high or low pressure. The timer function of insufflator adds to its operational control. Our endoscopic insufflator ensures precision, safety, and efficiency in endoscopic procedures.
| Input Pressure Range | 0.10 MPa to 0.60 MPa |
| Output Volume | 2L/Min (± 0.3L/min) |
| Flow Rate Control | 3-level adjustable flow rate |
| Display | LED numeric display |
| Power Supply | 100 to 240 V, 50/60 Hz |
| Dimensions (W×D×H) | 128 × 330 × 155 mm |
| Weight | 5 Kg |
Adjustable 3-level flow rate
Automatic pressure alarm and shut-off
Real-time pressure monitoring
Timer function for enhanced control
Compatible with major endoscopy brands
Easy ON/OFF operation
Compact and portable design
Power Cord
Outlet connector unit
Pressure reducer
Fuse (250V/2A)
Foot Switch unit
Luer adaptor (φ15mm × 21.7mm)
Power Cord
Outlet connector unit
Pressure reducer
Fuse (250V/2A)
In-line tubing set
In-line tubing set
In-line tubing set
Foot Switch unit
In-line tubing set
In-line tubing set
In-line tubing set
Luer adaptor
CO2 high-pressure hose
Yoke regulator
Central gas supply Unit
Zimed Endoscopic Insufflator ZEI-A10 is used in minimally invasive surgeries to deliver precise CO2 insufflation, creating optimal working spaces and enhancing visualization during procedures.
Frequently Asked Question
Real-time pressure monitoring displays the current intra-cavity pressure during the procedure via the LED numeric display. This allows the medical team to continuously track pressure levels and make instant adjustments if necessary. It enhances clinical precision and procedural efficiency, ensuring the patient remains stable throughout the operation.
The system is equipped with an automatic pressure monitoring system that triggers an audible and visual alarm if the pressure exceeds safe limits. In such cases, it will automatically shut off to prevent damage to the patient or equipment. This feature significantly enhances operational safety by preventing over-inflation or pressure-related injuries.
The 3-level adjustable flow rate allows users to control the output volume of gas or fluid to match the specific needs of different procedures. Low flow is ideal for delicate or minor operations. Medium flow offers balanced performance for standard use. High flow is suitable for procedures requiring faster cavity inflation or fluid movement. This flexibility ensures optimal visibility and patient safety across various endoscopic applications.
Yes, the system is designed to be compatible with major endoscopy brands, ensuring seamless integration into existing clinical setups. This universal compatibility reduces the need for brand-specific accessories and simplifies equipment management across departments.
The system uses a bright LED numeric display that shows real-time data such as pressure values, timer settings, and alerts. This display is clear, responsive, and easy to read, even in brightly lit operating rooms, helping surgeons stay focused on the procedure.
Endoscopes must be manually pre-cleaned, followed by high-level disinfection or sterilization. Automated endoscope reprocessors (AERs) are commonly used to ensure thorough cleaning.
Yes, most endoscopes are reusable but require proper cleaning and sterilization after each use to prevent infections.
Check for: Fogging or debris on the lens Proper connection to the video processor A malfunctioning light source
Regular maintenance schedules vary, but most manufacturers recommend servicing at least once a year or based on usage frequency.
