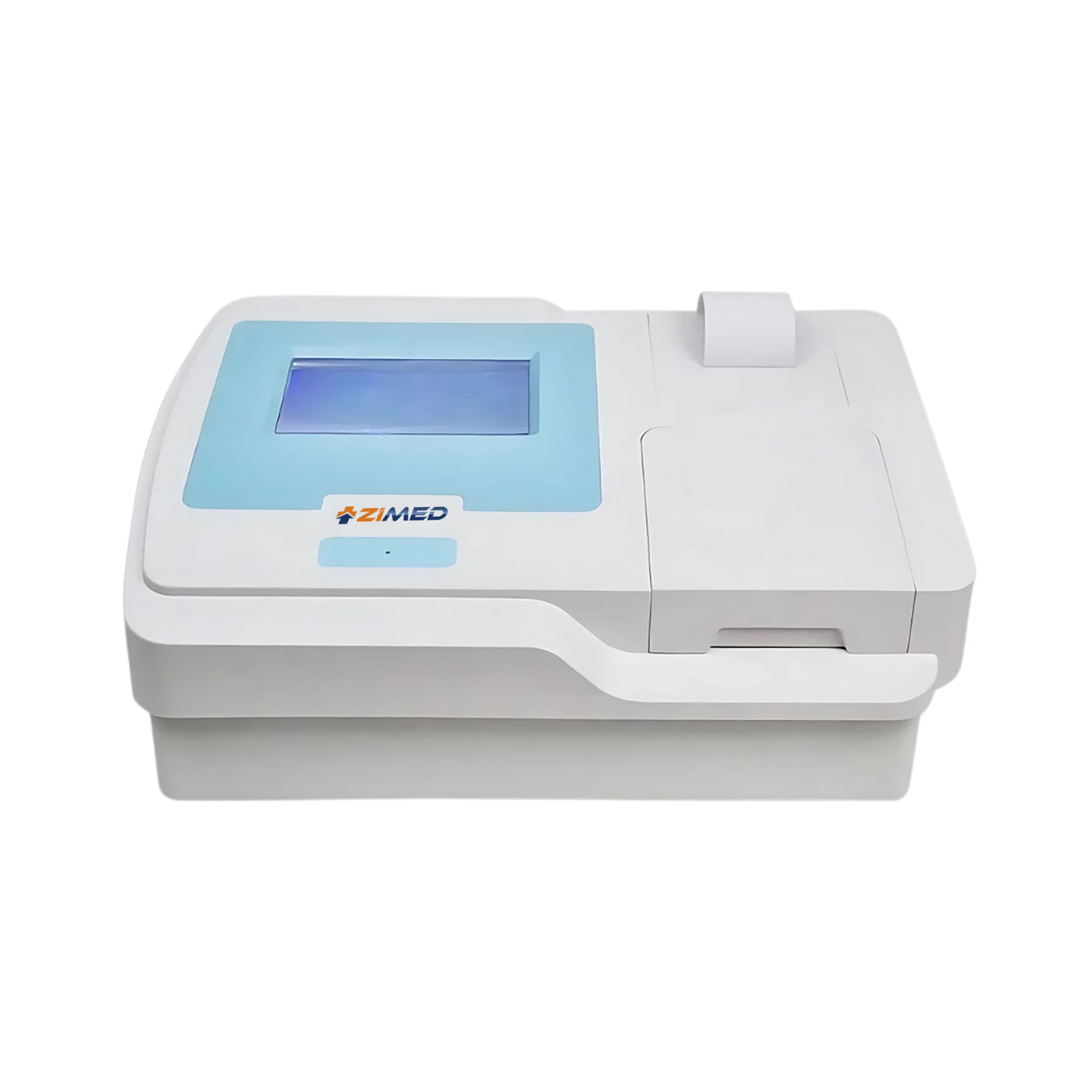

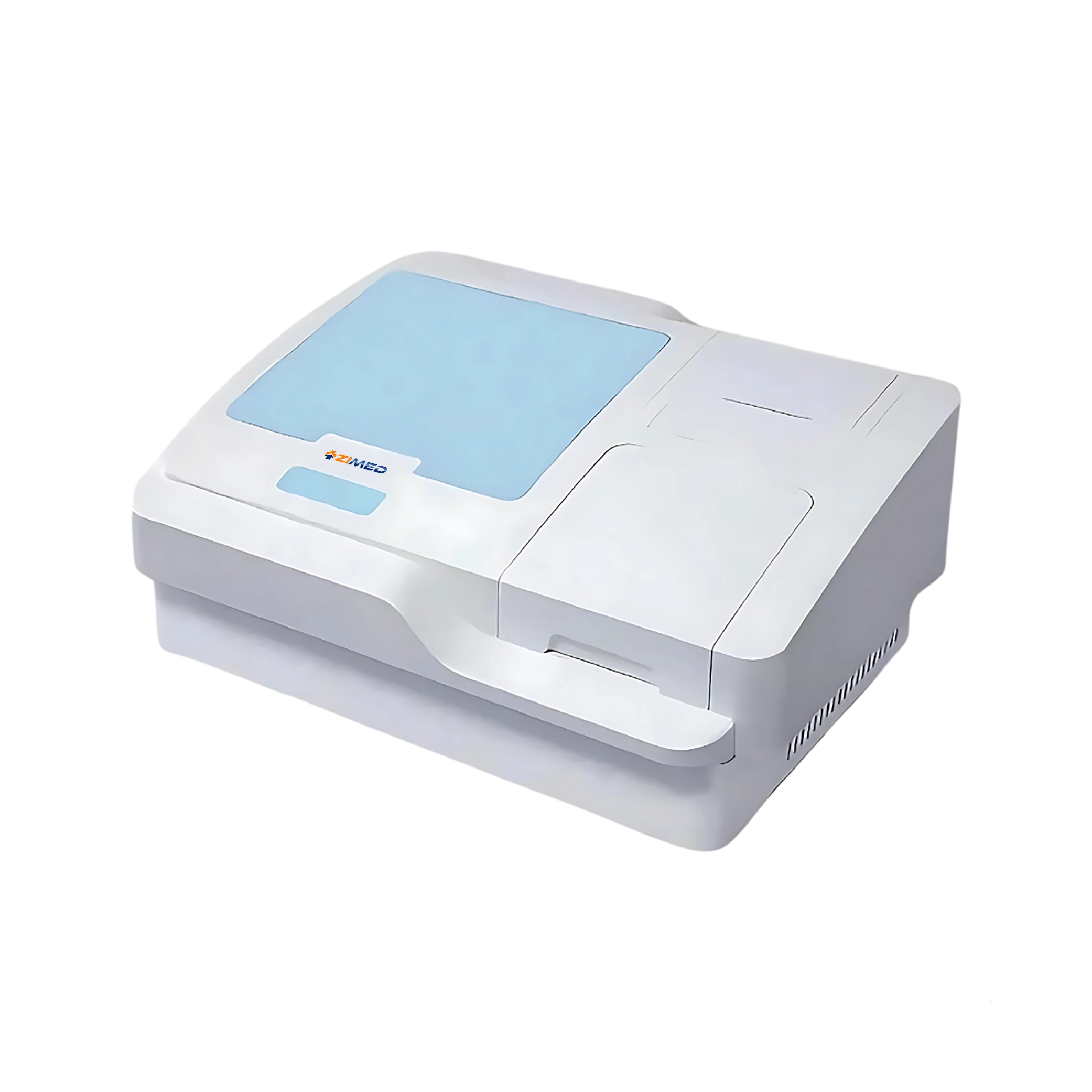

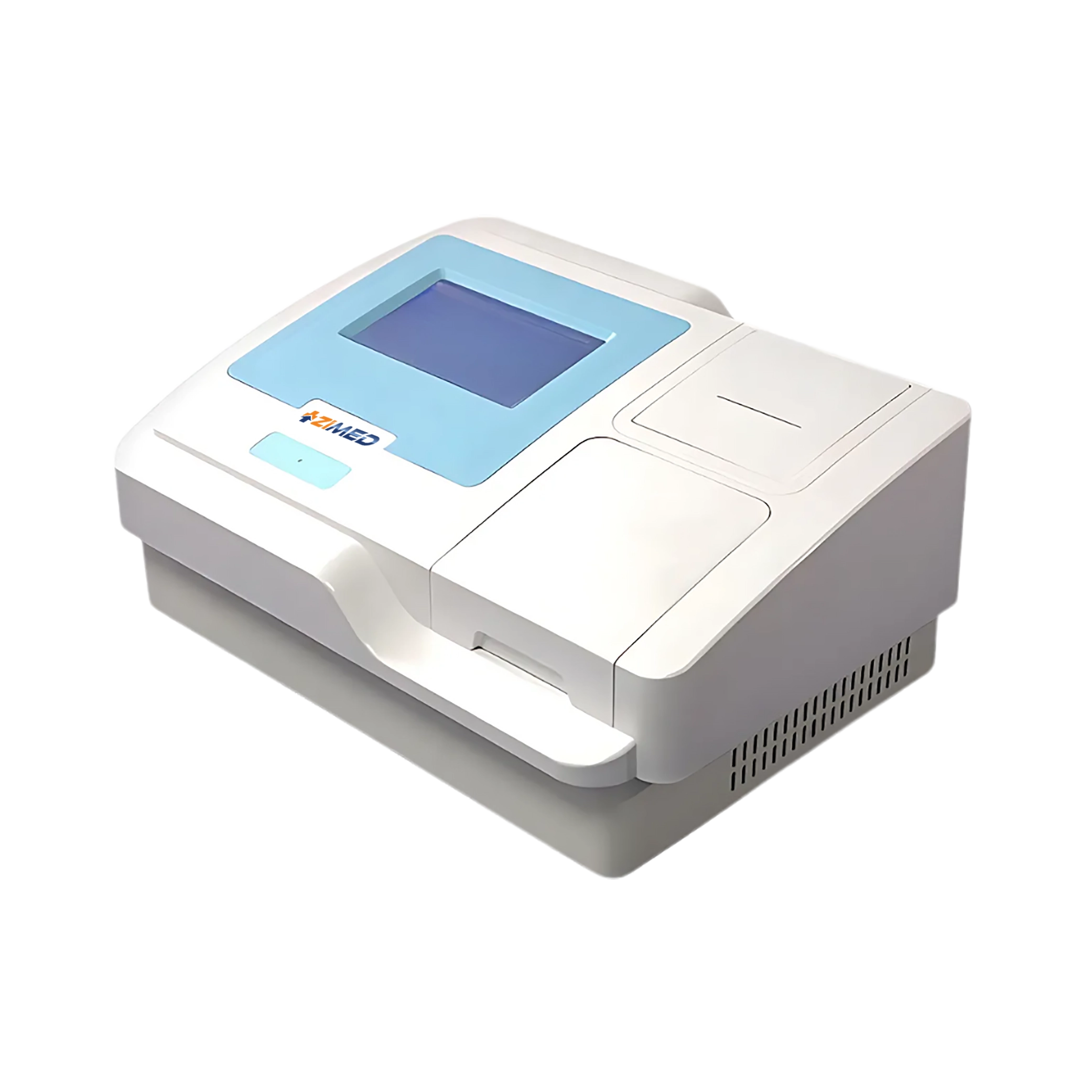

Microplate reader ZMR-A11 consists of 7-inch LCD display touch-screen and an optical system with 8-channel optical fiber scanning. It can store 500 test items and 200,000 test data points and perform 12 different tests on just one plate. The system is equipped with a USB interface for easy connection to the PC and built-in printer. It works on a single or dual wavelength, gives qualitative and quantitative data evaluation, and also consists of an LED or tungsten halogen lamp as a light source.
| Microplate Types | 96/ 48 – well plate |
| Photodetector | Silicon Photodiode |
| Wavelength Range | 400 nm – 800 nm |
| Standard Filters | 405, 450, 492, 630 nm |
| Reading Range | 0.000 – 4.000 A |
| Resolution | 0.001 A |
| Accuracy | ± 0.008 A |
| Reproducibility | ≤ 0.2 % |
| Stability | ± 0.003 A |
| Single wavelength reading speed | ≤ 3 sec |
| Double wavelength | ≤ 6 sec |
| Shaking | Linear |
| Speed | 3 speeds |
| Interface Connection | 2 × USB, 1 × RS-232, PS2 Mouse and Keyboard |
| Light Source | 8 V/ 50W Controlled Tungsten Halogen Lamp or LED lamp |
| Power Supply | 100 – 240 V, 50 – 60 Hz |
| Dimensions (L × W × H) | 460 × 350 × 197 mm |
| Net Weight | 8 Kg |
Simple, safe, reliable, and easy-to-use
LED or tungsten halogen lamp is used as light source
Performs 12 different tests in just one plate
Single or dual wavelength measurement
Qualitative and quantitative data-evaluation
Optical system with 8 channel optical fiber scanning
Auto-plate centering system
Linear shaking, 3 speeds
Silicon photodiode, photodetector
USB interface
Can store up to 200,000 test data
Microplate readers are widely used in hospitals, clinics, disease control centers, blood banks, scientific research laboratories, veterinary clinics, etc.
