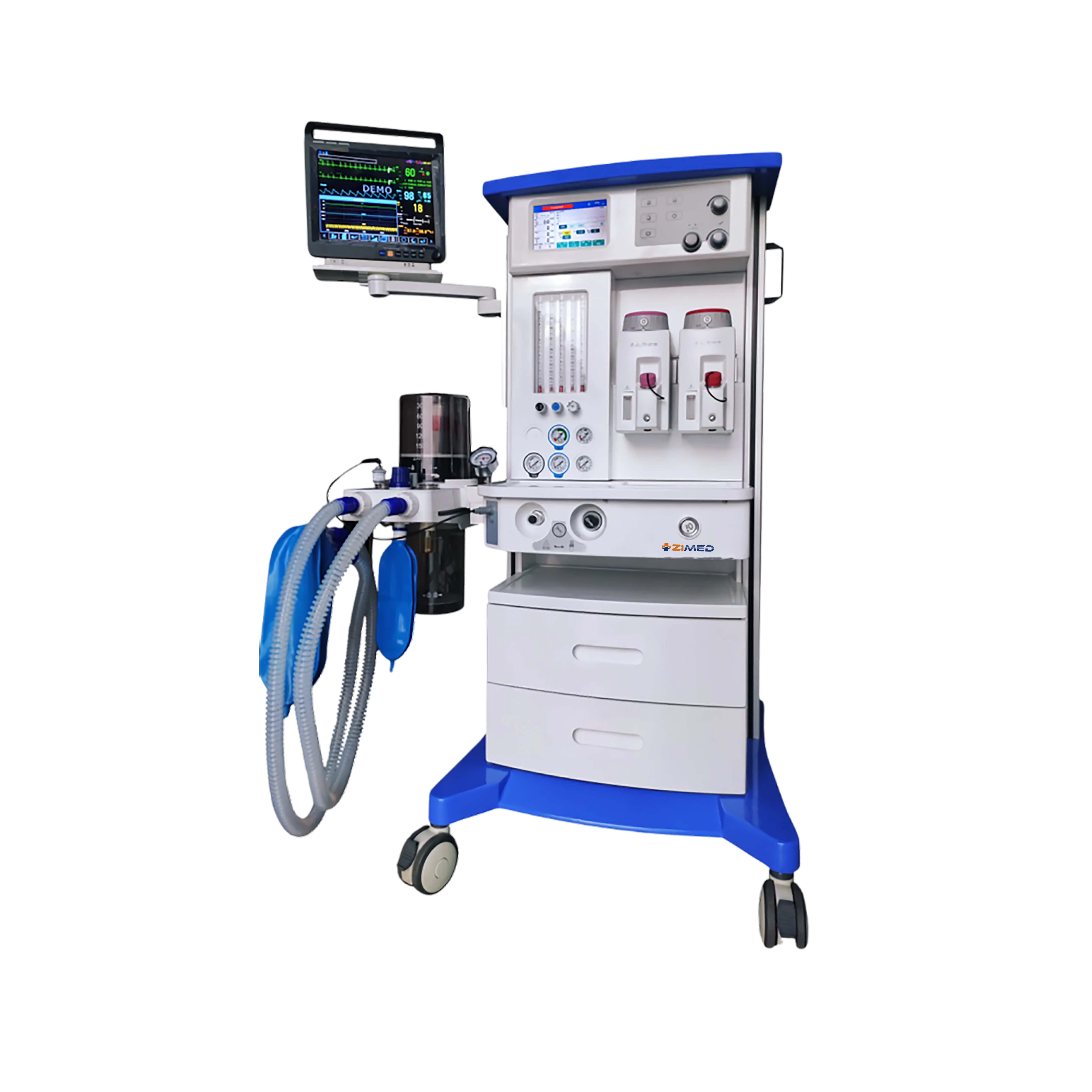

Anesthesia Machine ZAM-A14 supports O₂, N₂O, and AIR, with a flowmeter range of 0.1 to 10 L/min for each gas. It also offers a rapid oxygen supply capacity of 25 to 75 L/min and adjustable oxygen concentrations from 15% to 100%. Its I:E ratio and advanced pressure and flow triggers offer tailored support for each patient. Our Anesthesia Workstation also includes flexible configurations for customization and supports clinicians with error indicators.
| Ventilation Mode | IPPV, A/C, PCV, P-SIMV, V-SIMV, PSV, PCV-VG, SIGH, MAUN |
| Gas Source | O₂, N₂O, AIR |
| Flowmeter Range | O₂: 0.1 to 10 L/min N₂O: 0.1 to 10 L/min AIR: 0.1 to 10 L/min |
| Rapid Oxygen Supply | 25 L/min to 75 L/min |
| Oxygen Concentration | 15% to 100% |
| Inspiratory-To- Expiratory Ratio (I:E) | VTH: 4:1 to 1:8 VTL: 2:1 to 1:8 |
| Tidal Volume (VT) | 20ml to 1500ml |
| Minute Volume (MV) | ≥ 18L/min |
| Respiratory Rate (Freq) | 1bpm to 100bpm |
| Positive End-Expiratory Pressure (PEEP) | 0cmH₂O to 30cmH₂O |
| Pressure Control (PC) | 5cmH₂O to 60cmH₂O |
| Pressure Trigger (PTr) | -20 cmH₂O to 20 cmH₂O |
| Flow Trigger (FTr) | OFF, 0.5 L/min to 30 L/min |
| Inspiratory Time (Tinsp) | 0s to 12s |
| Inspiratory Pause (TIP) | 0s to 6s |
| Apnea Ventilation | OFF, 5s to 60s |
| SIGH | 0 (off) 1/100 to 5/100 |
| Gas Pressure | 280kPa to 600kPa |
| Bellow Volume | 1 L |
| Bypass | Yes |
| Graphical Display | P-T (pressure – time) F-T (flow – time) P-V loop (Pressure – volume loop) |
| Alarms | AC Power Failure Alarm: Power failure or no connection Internal Battery Low Voltage: < 10.2 ±0.3V No Tidal Volume: ≤5mL within 6s High Oxygen Concentration: 19% to 100% Low Oxygen Concentration: 18% to 99% High Airway Pressure: 20cmH₂O to 100 cmH₂O Low Airway Pressure: 0 cmH₂O to 20 cmH₂O High Minute Volume: Adult (5L/min to 20L/min) Low Minute Volume: Pediatric (1L/min to 15L/min, 0 to 10L/min) Continuous Pressure: (PEEP + 1.5 kPa) over 16s Suffocation Warning: 5s to 60s no spontaneous ventilation Maximum Limited Pressure: ≤ 12.5 kPa |
| Error Indicators | Fan Error: Shown on screen Oxygen Deficit: Shown on screen |
| Display | 15"Colorful TFT LCD display screen |
| Power Consumption | 85VA |
| Power Supply | 100V to 240V, 50/60Hz |
| Packaging Dimensions | 1005 × 960 × 1700 mm |
| Net Weight | 116.5 kg |
| Gross Weight | 227 kg |
Advanced ventilation modes
Vaporizer with safety features
Real-time monitoring with graphical displays
Adjustable tidal volume
Comprehensive alarm system
Adjustable respiratory settings
High-precision ETCO₂ and oxygen detection
Built-in battery for 2-3 hours backup
15-inch intuitive TFT LCD display
Accessories | Quantity |
LED Top light | 1pc |
Anesthetic breathing system | 1pc |
CO₂ sensor | 1pc |
Anesthetic vaporizer | 2pcs |
Power cord (4m) | 1pc |
Fuse (250V) | 11pcs |
O₂ cell | 1pc |
Adult anesthesia breathing circuit (reusable) | 2pc |
Child anesthesia breathing circuit (reusable) | 2pc |
Breathing tube | 1pc |
Y connector (Adult) | 1pc |
Y connector (Children) | 1pc |
L connector | 2pc |
Straight connector | 1pc |
Reservoir bag 1L | 1pc |
Reservoir bag 3L | 1pc |
Anesthetic mask adult | 1pc |
Anesthetic mask infant | 1pc |
High pressure O₂ hose | 1pc |
High pressure air hose | 1pc |
High pressure N₂O hose | 1pc |
Auxiliary Common Gas Outlet (ACGO) | 1pc |
Auxiliary AC Power Socket | 4pc |
Drawers | 3pc |
Vaporizer | 2pc |
Heater | 1pc |
Spare Cylinder yoke, 1 O₂, includes gauges
Spare Cylinder yoke, 1 N₂O, includes gauges
Anesthetic gas scavenging system
Disposable adult breathing circuit
Disposable pediatric breathing circuit
Patient monitor
Our Anesthesia Machine ZAM-A14 is used in ICUs, operating rooms, and anesthesiology departments for inhalation anesthesia and respiratory management in patients of all ages.
Frequently Asked Question
Yes, the oxygen concentration is adjustable from 15% to 100%, providing flexibility based on patient needs
The ZAM-A14 allows customization of the I:E ratio, ensuring optimal ventilation settings tailored to different patient conditions.
The machine includes advanced pressure and flow triggers, enhancing patient-ventilator synchronization and reducing work of breathing.
Yes, the ZAM-A14 offers flexible configurations, allowing clinicians to customize settings based on procedural requirements.
The ZAM-A14 features error indicators, which provide real-time alerts for system issues, ensuring safe and efficient operation.
The Zimed Anesthesia System is a medical device used to deliver anesthetic gases and oxygen to patients during surgery or medical procedures. It ensures the patient remains unconscious, pain-free, and stable throughout the operation.
Our machine delivers a controlled mixture of gases, which the patient inhales through a mask or endotracheal tube. The ventilator supports breathing, and the vaporizer ensures precise delivery of anesthetic agents. Sensors monitor vital signs and gas concentrations for safety.
Yes, our anesthesia machines can function as ICU ventilators, providing long-term mechanical ventilation support for critically ill patients when needed.
The scavenging system collects excess anesthetic gases and vents them safely outside the operating room. Proper ventilation and personal protective measures further reduce exposure risks.
