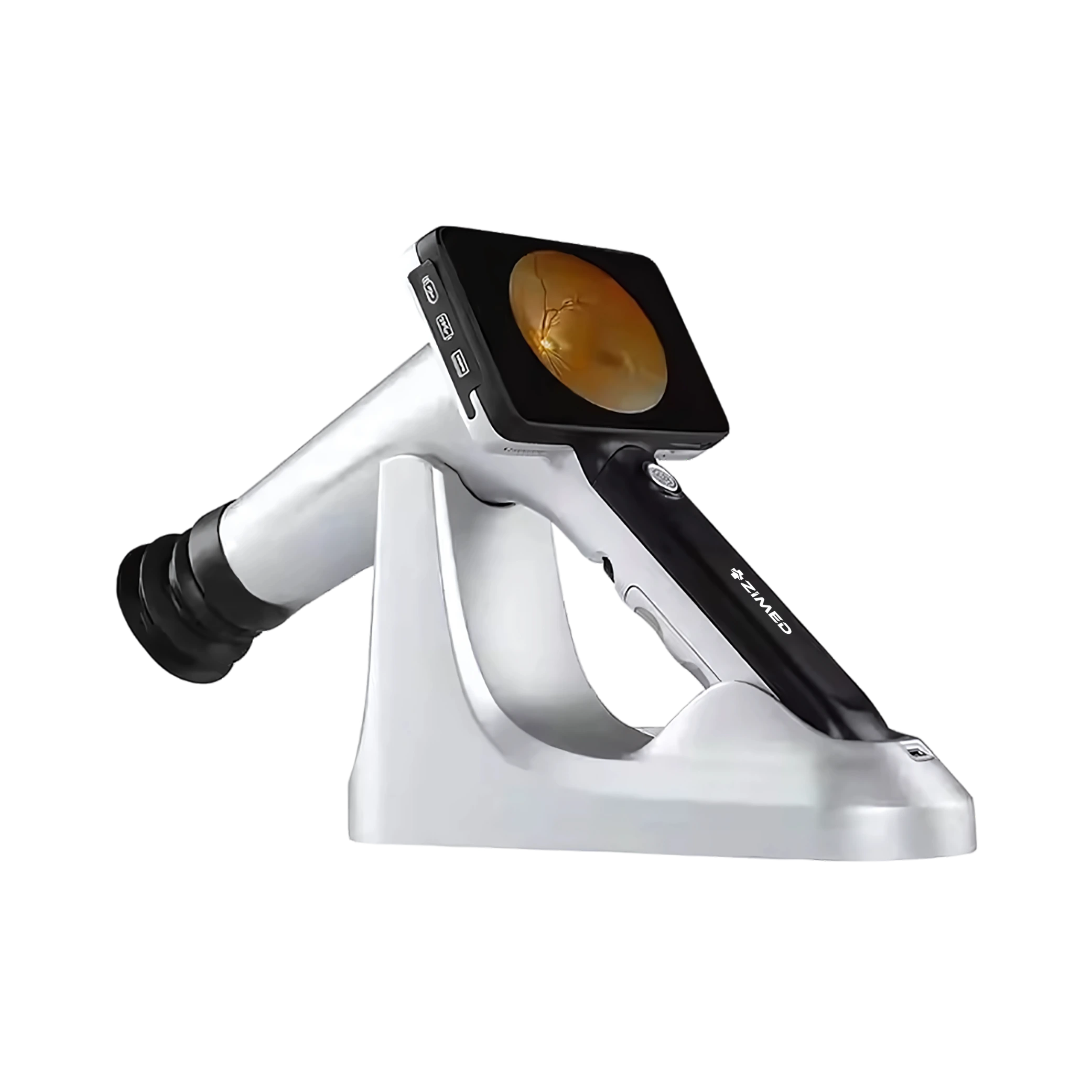

Fundus Camera ZFC-A21 captures high-resolution images over 60 lp/mm, ideal for diagnosing retinal pathologies. It operates with a minimum pupil diameter of 2.5 mm, ensuring comfort and clear imaging. The system offers manual and auto-focus capabilities, supported by a dual white and infrared LED flash mode. It delivers high-resolution retinal imaging with multi-modal connectivity for efficient clinical and mobile diagnostics.
| Optical Resolution |
Greater than 60Ip/mm |
| Minimum pupil diameter |
2.5mm |
| FOV |
50° |
| Sensor resolution |
10 Mega pixel |
| Focus |
Manua/Auto focus |
| Flash mode |
White LED and IR LED |
| Screen |
4.7 inch TFT colored screen |
| Interface |
Micro USB |
| Image transfer |
Micro USB, Wifi |
| Image format |
JPEG, MPEG-4/1, Dicom 3.0 |
| Internal targets |
5 target fixation |
| Image transfer |
USB 3.0, Wifi, SD card, HDMI |
| Storage |
4G + 64G |
| Recording by camera |
Li-ion rechargeable batteries 3.7V/ 3500mAh |
| Charging Power |
100 to 240 V, 50/60Hz |
| Working time |
Greater than 8 hours |
| Charging time |
Less than 2 hours |
| Dimensions |
205 × 125 × 205 mm |
| Weight |
Less than 500g |
Fundus Camera ZFC-A21 excels in applications like early detection of retinal diseases, diabetic retinopathy screening, glaucoma monitoring, and teleophthalmology, enabling precise, non-invasive diagnostics across diverse clinical and remote settings.
