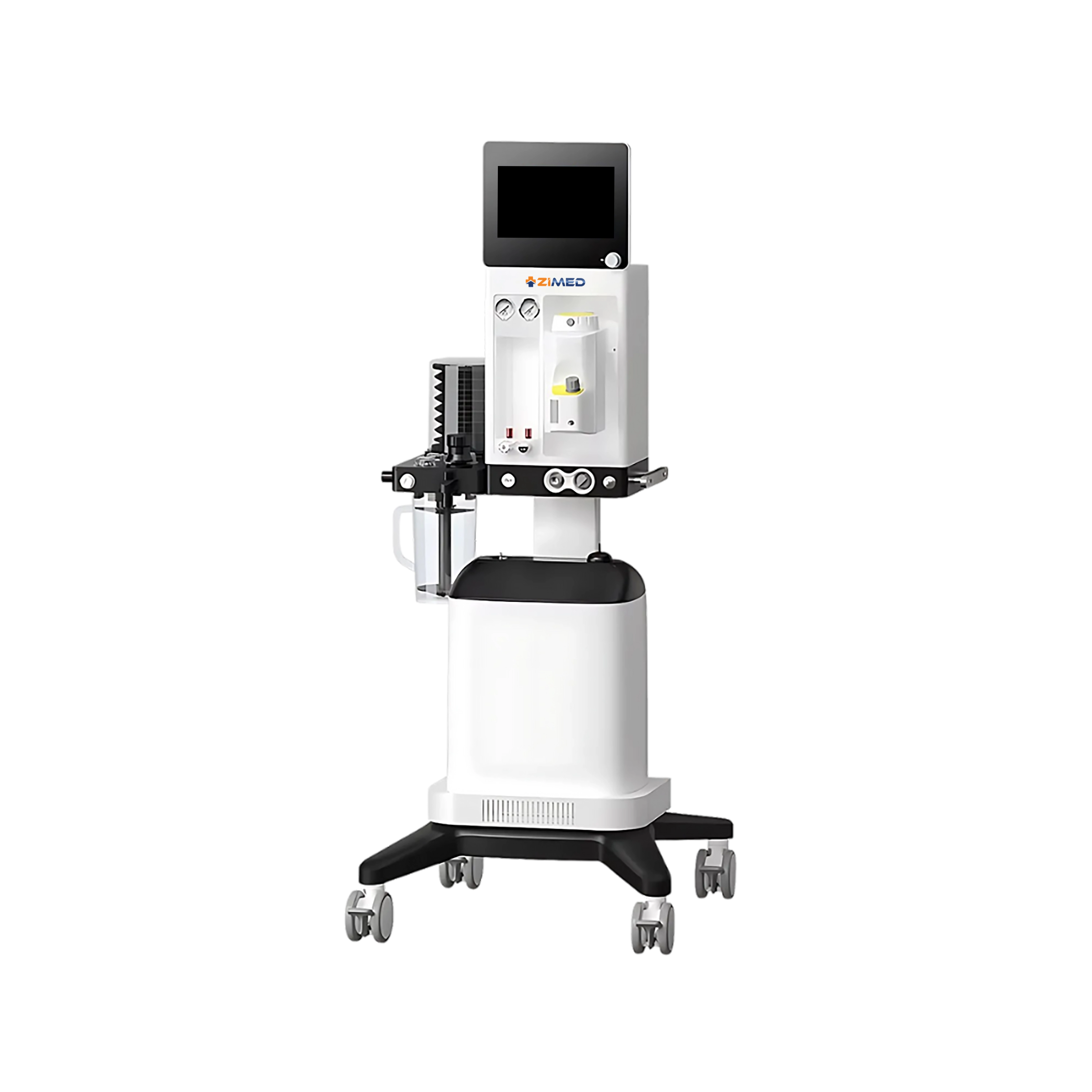

Veterinary Anesthesia Machine ZVAM-A11 features a tidal volume range from 0 to 1500 ml, suitable for various animal sizes. It also offers an auto O₂ flush from 25 to 75 L/min and an ACGO system. Backup ventilation (VCV/PCV) for added safety, pressure support, PEEP, and plateau pressure control. Our device provides integrated alarms for tidal volume, minute volume, and respiration rate. Compatible with pipeline gas and oxygen concentrators, it is ideal for controlled anesthesia delivery for animals of all sizes.
| Tidal Volume | 0 to 1500 ml |
| Frequency | 4 to 100 bpm (VCV/PCV/PRVC) |
| SIMV Frequency | 1 to 40 bpm |
| ACGO | Yes |
| O₂ Flush | 25 to 75 L/min |
| I:E Ratio | 1:10 to 10:1 |
| Time | 0.1 to 10 s |
| Trigger | -1 to -10 cmH₂O |
| PEEP | 0 to 20 cm H₂O |
| Pressure Support | 5 to 30 cm H₂O |
| Plateau | 0.5 to 10 s |
| Pressure | 0 to 2 cmH₂O |
| Flow | 0 to 120 L/min |
| Control Method | Electron-driven electronic control |
| Patient Type | Veterinary |
| Configuration | Mobile |
| Display | 10.2” TFT LCD touchscreen |
| Pipeline Gas Inlets | O₂, Air, N₂O (optional), DISS or NIST connection |
| Gas Cylinder Yokes | O₂ |
| Oxygen Concentrator | Optional |
| Self-test | Yes |
| Patient Type Selection | Yes |
| Trend | 24 hours |
| Timer | Yes |
| Vaporizers - Type | Isoflurane, Sevoflurane, Enflurane, Halothane |
| Vaporizers - Number | 1 |
| Vaporizers - Connector | 1 Selectatec (Optional) |
| Flowmeters | 2-tube (O₂: 0 to 4 L/min, Air: 0 to 4 L/min) or O₂: 0 to 10 L/min |
| Weighing Scale | Optional |
| Operating Temperature | 10 to 40°C |
| Operating Humidity | 5 to 90%, non-condensing |
| Operating Barometric Pressure | 70 to 106 kPa |
| Storage Temperature | -20 to 60°C |
| Storage Humidity | 0 to 95%, non-condensing |
| Storage Barometric Pressure | 50 to 106 kPa |
| Input Voltage | 100 to 240V |
| Frequency | 50/60 Hz |
| Input Power | <90 VA |
| Power Cord | 5 m |
| Auxiliary Power Output Voltage | 220V 240V |
| Auxiliary Frequency | 50/60 Hz |
| Number of Outlets | 2 |
| Battery Type | Lithium |
| Battery Voltage | 14.4 VDC |
| Battery Capacity | 6600 mAh |
| Battery Charging Time | <2 hours |
| Monitor Tray Size | 340mm x 210mm |
| Monitor Tray Weight Capacity | 15 kg |
| Injection Pump Support Capacity | 15 kg |
| Breathing System - Bellows | Adult and Pediatric |
| Absorber Canister | 700 ml |
| Non-rebreathing System | Yes |
| CO₂ Bypass | No |
| Ventilation Modes | VCV, PCV, SIMV, SIMV-VC, SIMV-PC, PSV, PSV-PRO |
| Backup Modes | Yes (VCV/PCV) |
| Waveforms | Pressure, Flow, Volume |
| Loop | P-Flow, V-Flow, V-CO₂ (optional) |
| Inspiratory Tidal Volume | 0 to 3000 ml, ±4 ml+15% |
| Expiratory Tidal Volume | 0 to 3000 ml, ±4 ml+15% |
| Minute Volume | 0 to 20 L/min, ±1 L/min or 15% |
| Spontaneous Minute Volume | 0 to 20 L/min, ±1 L/min or 15% |
| Respiratory Rate | 0 to 100 bpm, ±1 bpm or 10% |
| Spontaneous Resp. Rate | 0 to 100 bpm, ±1 bpm or 10% |
| Airway Pressure Ppeak | ±2 cm H₂O or ±4% |
| Pmean | ±2 cm H₂O or ±4% |
| Pplat | ±2 cm H₂O or ±4% |
| PEEP | ±2 cm H₂O or ±4% |
| Airway Resistance | 0–600 cm H₂O/L/s, ±5 or ±20% |
| MAC | 0–10 |
| Alarms - Tidal Volume |
High: 5 to 2000 ml, Low: OFF–1990 ml |
| Alarms - Minute Volume |
High: 0.2 to 10 L/min, Low: 0.5 L |
| Alarms - Resp. Rate |
High: 1 to 100 bpm, Low: 0 to 99 bpm |
| Battery Discharge | >15 minutes |
| Battery Low | >10 minutes |
| Inhalation Agent High |
Halothane/Isoflurane/Enflurane: 0.1–7.9%, Sevo: 0.1–9.9%, Des: 0.1–19.9% |
| Inhalation Agent Low |
Halothane/Isoflurane/Enflurane: 0–7.8%, Sevo: 0–9.8%, Des: 0–19.8% |
| Optional Modules | IRMA CO₂/AX, Side-stream EtCO₂, O₂ Cell |
| Main Unit Size | 1534mm × 700mm × 1570mm |
| Main Unit Weight | 55 kg |
Advanced ventilation and control
Multiple ventilation modes
Backup ventilation (VCV/PCV) for added safety
Pressure support, PEEP, and plateau pressure control
Comprehensive monitoring
24-hour trend data tracking
Reliable safety and alarms
User-friendly design
Built for versatility
The Veterinary Anesthesia Machine ZVAM-A11 is designed for the safe, precise, and flexible delivery of anesthesia to a wide range of animal patients, supporting both manual and automatic ventilation modes, real-time monitoring, and compatibility with various anesthetic agents, making it ideal for use in veterinary clinics, hospitals, and research facilities.
