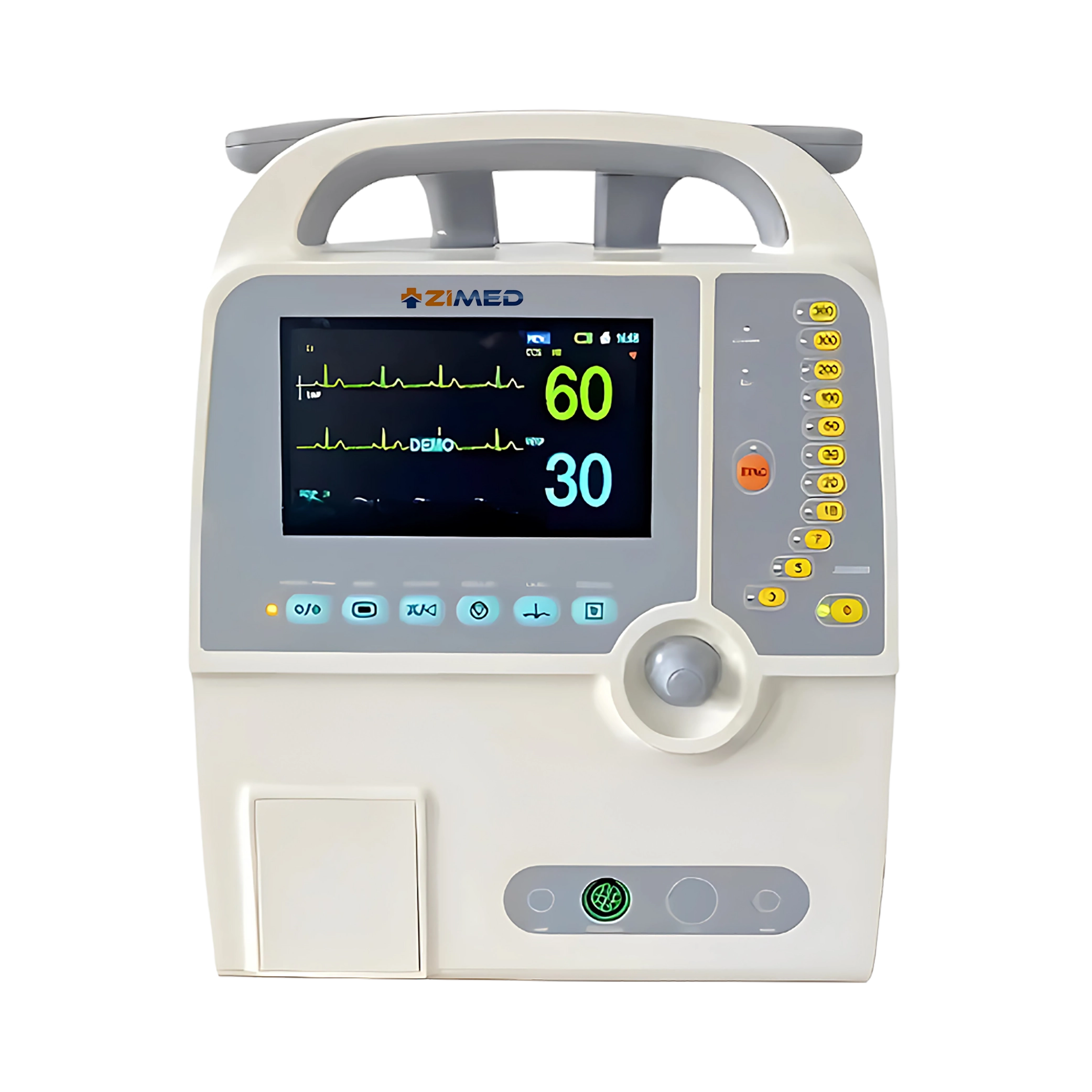

Defibrillator ZED-B11 provide first aid to patient with abnormal heart rhythms. They perform both manual and automated operation after analyzing ECG of patient. Features reduced heartache with increases success rate.
| Defibrillator type | Manual and Automatic Synchronization |
| Energy | 2 J, 5 J, 7 J, 10 J, 20 J, 30 J, 50 J, 70 J, 100 J, 150 J, 200 J, 300 J, 360 J |
| Display Information | Heart Rate Lead/Pads Alarm On/Off SpO2 Operation mode Alarm Selection and Limits Delivered Energy |
| Sweep Speed | 25 mm / sec |
| Battery | Rechargeable Ni-MH |
| Battery Specification | 12 V 3 hrs minimum continuous ECG monitoring |
| Capacity | 60 discharges at maximum energy |
| Printer Paper | 50 mm |
| Dimensions | 440 × 400 × 400 mm |
Sine wave: Biphasic technology
Display shows selected and delivered energy
Front panel to change input
Press key on paddle
Audible and visual reading
Internalized battery
Manual or automated printing
Alarm systems detect failures
Advanced life support medical device used in hospitals and ambulance.
Frequently Asked Question
There are three main types of defibrillators: Automated External Defibrillator (AED): Used by the general public and first responders. Implantable Cardioverter Defibrillator (ICD): Surgically implanted in patients at high risk of cardiac arrest. Wearable Cardioverter Defibrillator (WCD): Worn externally for temporary heart monitoring and shock delivery.
Most modern Automated External Defibrillators (AEDs) are designed for use by anyone, even without medical training. They provide voice and visual instructions to guide users through the process.
A defibrillator should be used if someone collapses, is unresponsive, and has no normal breathing or pulse. Early defibrillation significantly improves survival chances.
Yes, many AEDs have pediatric pads or settings to adjust the shock level for children under 8 years old or under 55 lbs (25 kg). If pediatric pads are unavailable, standard adult pads can be used, but should be placed correctly.
Yes. AEDs require regular battery checks, electrode pad replacement, and software updates according to the manufacturer’s recommendations. Some models perform self-checks and alert users when maintenance is needed.
